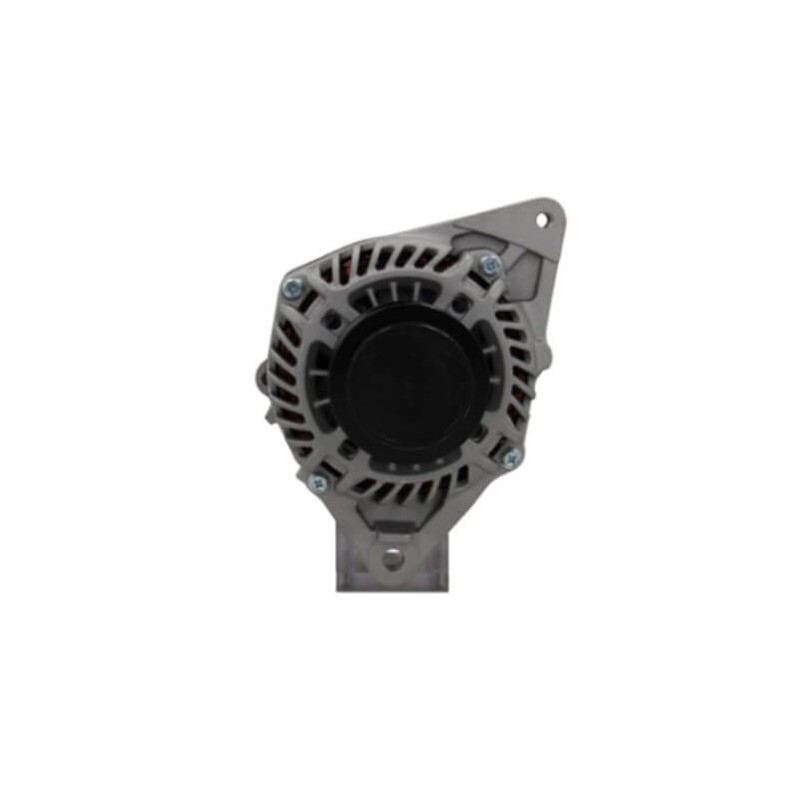

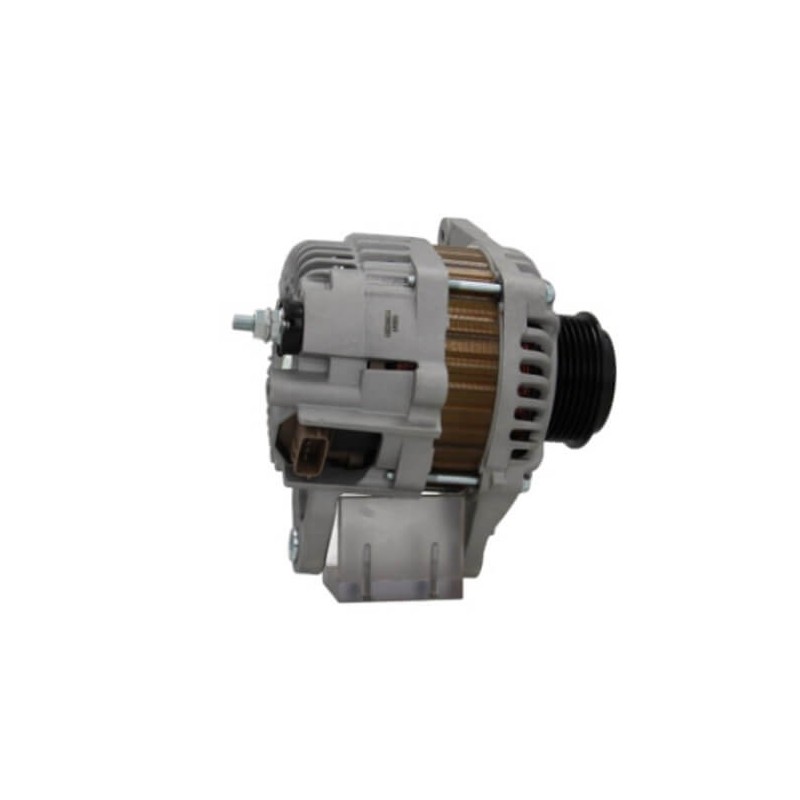

Alternator replacing 1800A410 / A005TL0781 / DRA1918 / LRA04378
| 155955095 | PSH |
| 1800A410 | Mitsubishi |
| 226340952 | DRI |
| 287987 | Elstock |
| 6000605437 | Fiat |
| 931918 | Remy |
| A005TL0781 | Mitsubishi |
| A005TL0781Z | Mitsubishi |
| A005TL0781ZT | Mitsubishi |
| A5TL0781 | Mitsubishi |
| A5TL0781ZT | Mitsubishi |
| DRA1918 | Remy |
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 95 | |
Catalogue information | ||
|---|---|---|
| Pulley | SP/FW | |
| Fan | IF | |
| Regulator type | IR | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 39.00 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist. | 65.70 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 7 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 65.20 |
| I | Grooves/pulley | 6 |
| J | Radius | 90.00 |
| J | Radius 2 | 96.50 |
| K | B+ | M8 |
| K | Position/B+ in min. | 13 |

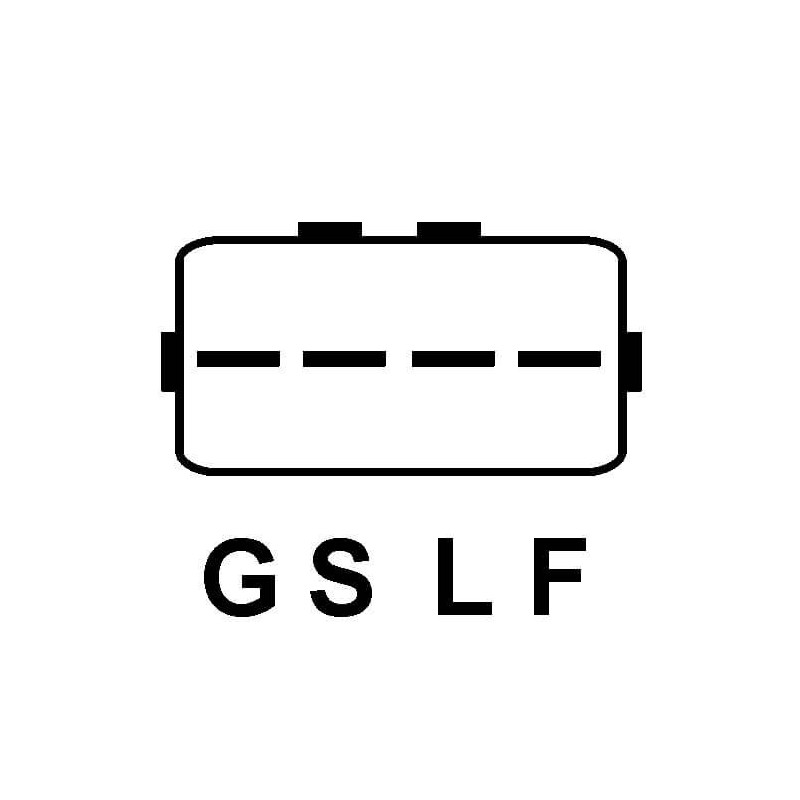

| L | D+ Size | Plug |
| N | Rotation | CW |
| O | Plug no. | PL68 |
| R | Total length mm | 201.00 |
Generic Brand replaces :
| 155955095 | PSH |
| 1800A410 | Mitsubishi |
| 226340952 | DRI |
| 287987 | Elstock |
| 6000605437 | Fiat |
| 931918 | Remy |
| A005TL0781 | Mitsubishi |
| A005TL0781Z | Mitsubishi |
| A005TL0781ZT | Mitsubishi |
| A5TL0781 | Mitsubishi |
| A5TL0781ZT | Mitsubishi |
| DRA1918 | Remy |
| LRA04378 | Lucas |
| RNLA5TL0781ZT | RNL |
for
| Brand | Model | Typ | Year |
| FIAT | Fullback 2.4 D 4x4 | [4N15] | 01/04/16 |
| MITSUBISHI | L200 2.4 DI-D | [4N15] | 01/09/15 |
| MITSUBISHI | L200 2.4 DI-D 4WD | [4N15] | 01/11/14 |
| MITSUBISHI | L200 2.4 DI-D 4WD | [4N15] | 01/09/15 |
| MITSUBISHI | Triton 2.4 DI-D | [4N15] | 01/09/15 |
| MITSUBISHI | Triton 2.4 DI-D 4WD | [4N15] | 01/11/14 |
| MITSUBISHI | Triton 2.4 DI-D 4WD | [4N15] | 01/09/15 |
