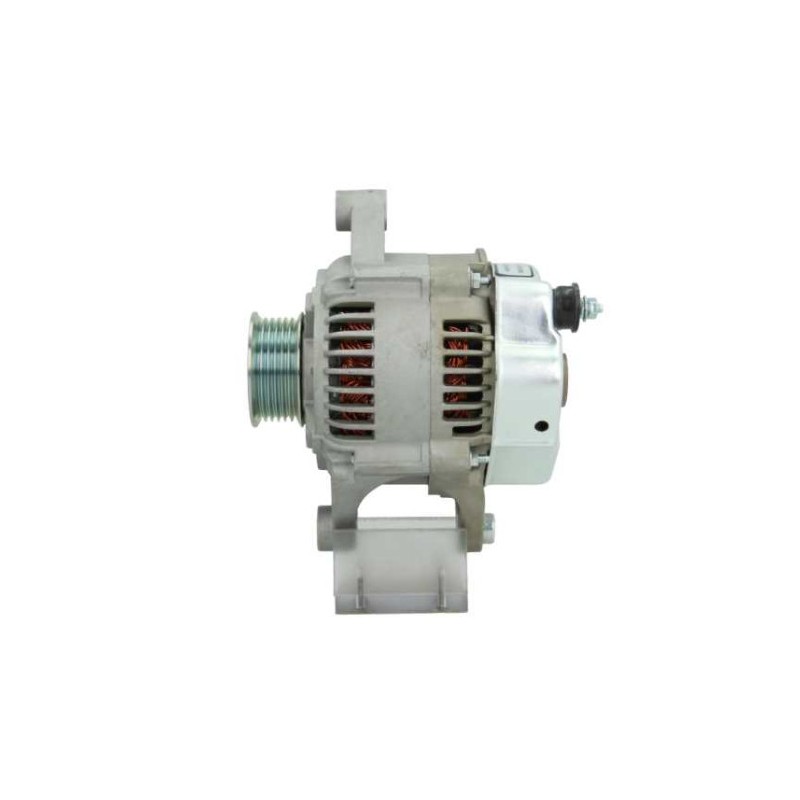

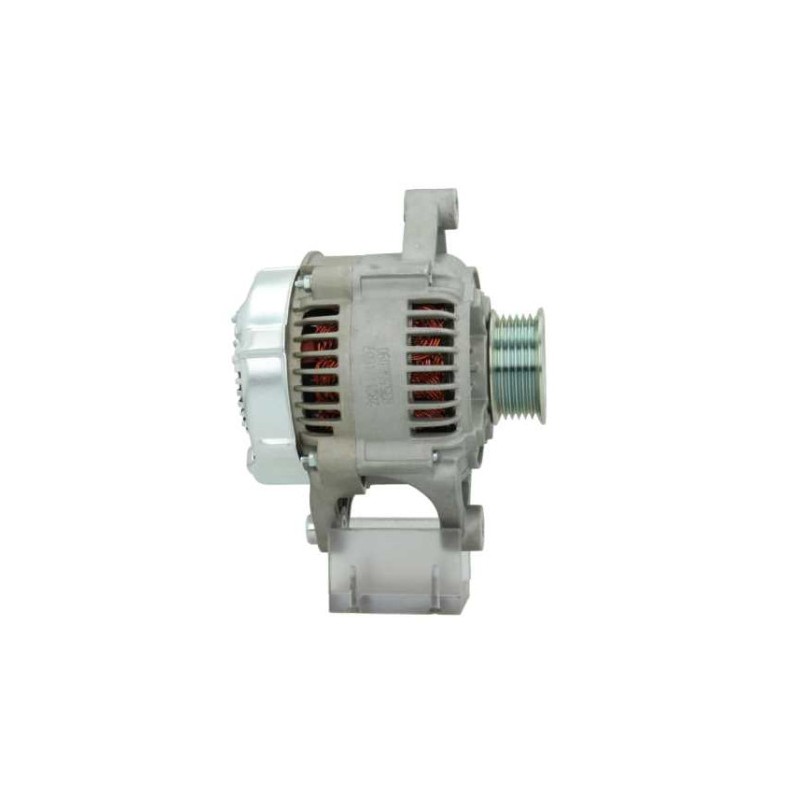

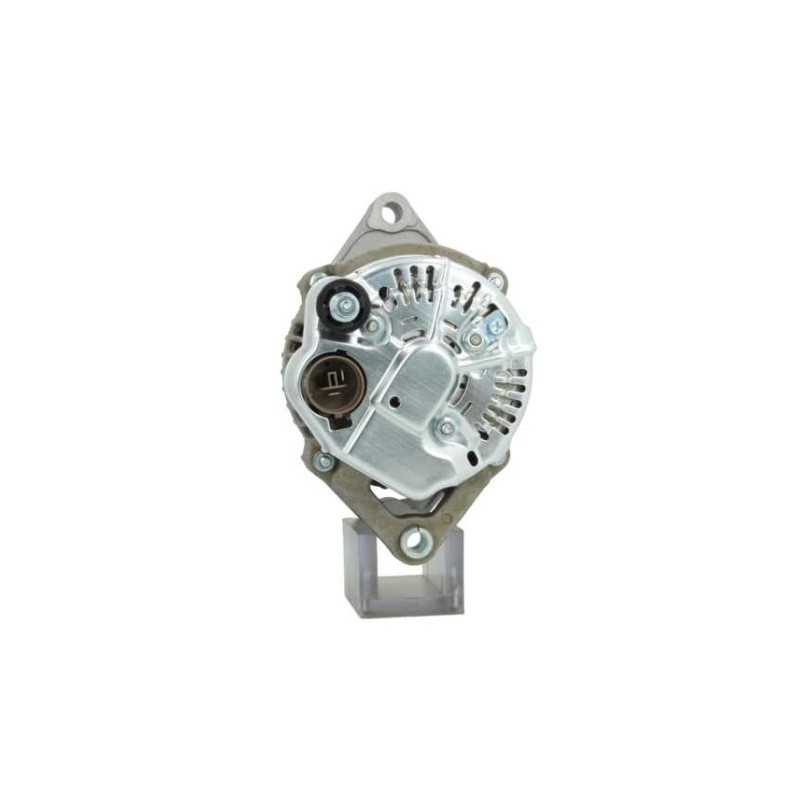

Alternator replacing 121000-3510 / 4609415 for DODGE / CHRYSLER
Alternator replacing
CHRYSLER 4609415, DENSO 121000-3510
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Information:
| Voltage | 14 | |
| Amp. | 90 | |
| A | Pulley dist. | 34.00 |
| B | Width/holder arm | 22.00 |
| C | Mount. bracket dist | 54.00 |
| D | Bracket hole | M10 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 11.50 |
| H | Pulley dia. | 57.50 |
| I | Grooves/pulley | 6 |
| J | Radius | 87.00 |
| J | Radius 2 | 86.50 |
| K | Position B + | M6 |
| K | B+ position en min. | 50 |
| N | Rotation | Cr |

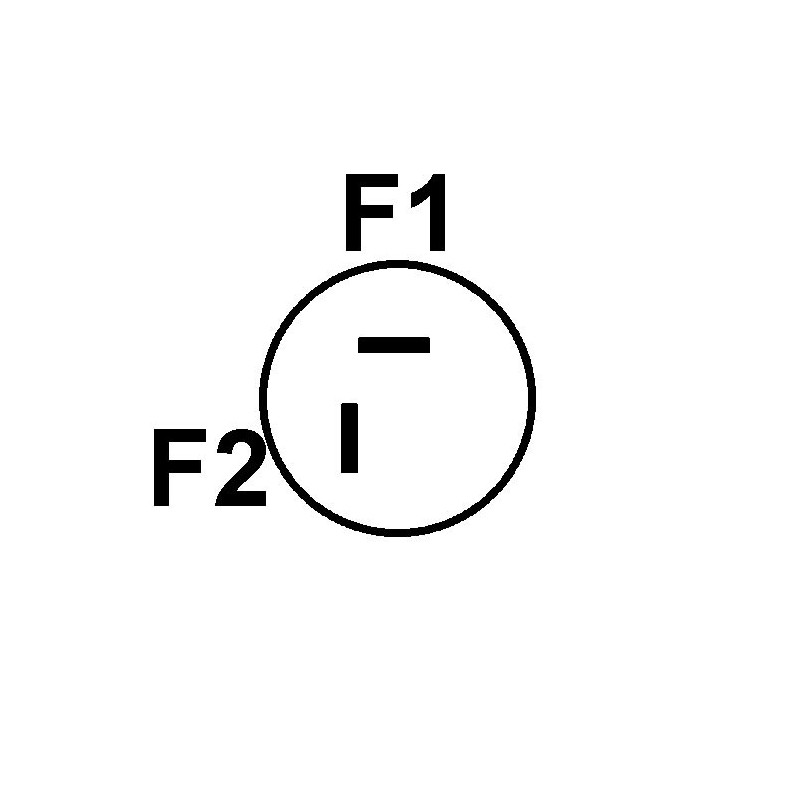

| O | Plug n° 1 | PL93 |
| R | Total length mm | 183.00 |
generic brand
Replacing | |
|---|---|
| 121000-3510 | DENSO |
| 4609415 | CHRYSLER |
| UA1215 | HC-PARTS |
Used onon :
CHRYSLER / DODGE / PLYMOUTH
| Model | Litre | Tipo of Gas | Start build | End built | Tipo engine | engine | KW | chevaux | châssis | cm3 | Cylindres |
| Stratus | 2.0 | Unleaded | 1995 12 | 2001 04 | C00 | 96 | 131 | 1996 | 4 | ||
| Stratus | 2.0 | Unleaded | 1996 06 | 2001 04 | 420X | 96 | 131 | Décapotable | 1996 | 4 | |
| Stratus | 2.4 | Unleaded | 1995 12 | 2001 04 | EDZ | 16V | 103 | 140 | 2429 | 4 | |
| Stratus | 2.0 | Unleaded | 1995 12 | 2001 04 | ECB | 16V | 98 | 133 | 1996 | 4 | |
| Voyager | 2.0 | Unleaded | - | - | C00 | i | 98 | 133 | MPV | 1995 | 4 |
| Voyager | 2.4 | Unleaded | - | - | B00 | i | 111 | 151 | MPV | 2429 | 4 |
| Stratus | 2.4 | Unleaded | 1998 01 | 1998 01 | EDZ | 0 | 0 | 2429 | 4 | ||
| Stratus | 2.0 | Unleaded | 1999 01 | 2000 01 | 0 | 0 | 1996 | 4 | |||
| Stratus | 2.4 | Unleaded | 1995 01 | 1997 01 | EDZ | 0 | 0 | 2429 | 4 | ||
| Stratus | 2.0 | Unleaded | 1995 01 | 1997 01 | ECB | 0 | 0 | 1996 | 4 | ||
| Stratus | 2.4 | Unleaded | 1996 01 | 1997 01 | EDZ | 0 | 0 | 2429 | 4 | ||
| Stratus | 2.0 | Unleaded | 1995 01 | 1997 01 | ECB | 0 | 0 | 1996 | 4 | ||
| Stratus | 2.4 | Unleaded | 1995 01 | 1995 01 | 0 | 0 | 2429 | 4 | |||
| Stratus | 2.4 | Unleaded | 1999 01 | 2000 01 | 0 | 0 | 2429 | 4 | |||
| Stratus | 2.0 | Unleaded | 1998 01 | 1998 01 | ECB | 0 | 0 | 1996 | 4 | ||
| Stratus | 2.4 | Unleaded | 1998 01 | 1998 01 | EDZ | 0 | 0 | 2429 | 4 |
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
