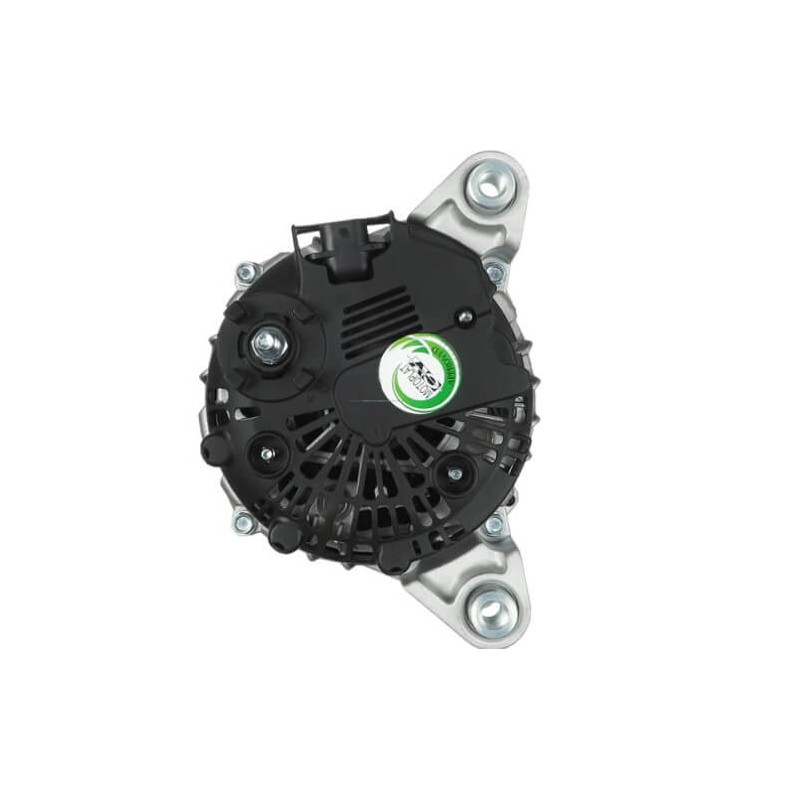

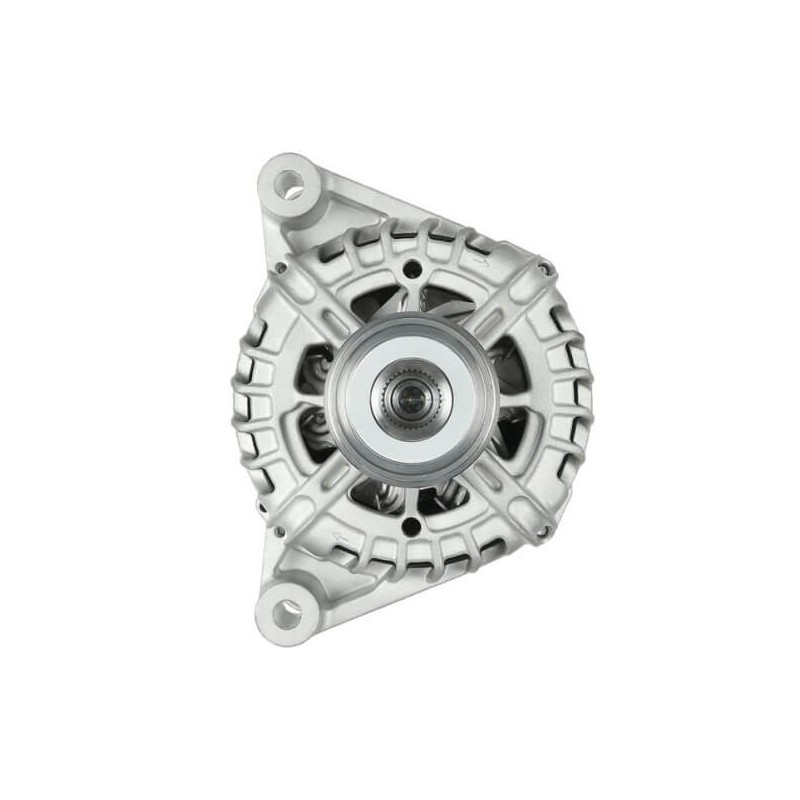

Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Previous
Next
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137
Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137

Alternator replacing 1202243 / DRA1331 / LRA03617 / TG12C137

w116210

1202243 Opel
1202313 Opel
1202319 Opel
13512747 GM
135591140 PSH
13581893 GM
13588296 GM
19YY1715 Opel
209406 Messmer
2281941402 DRI
2620371A Valeo
286727 Elstock
4224 CEVAM
440747 Valeo
931331 EDR
95520020 Opel

Read more
€249.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical information
Voltage 14
Amp 140

Catalogue information
Pulley SP/FW
Fan IF
Regulator type IR

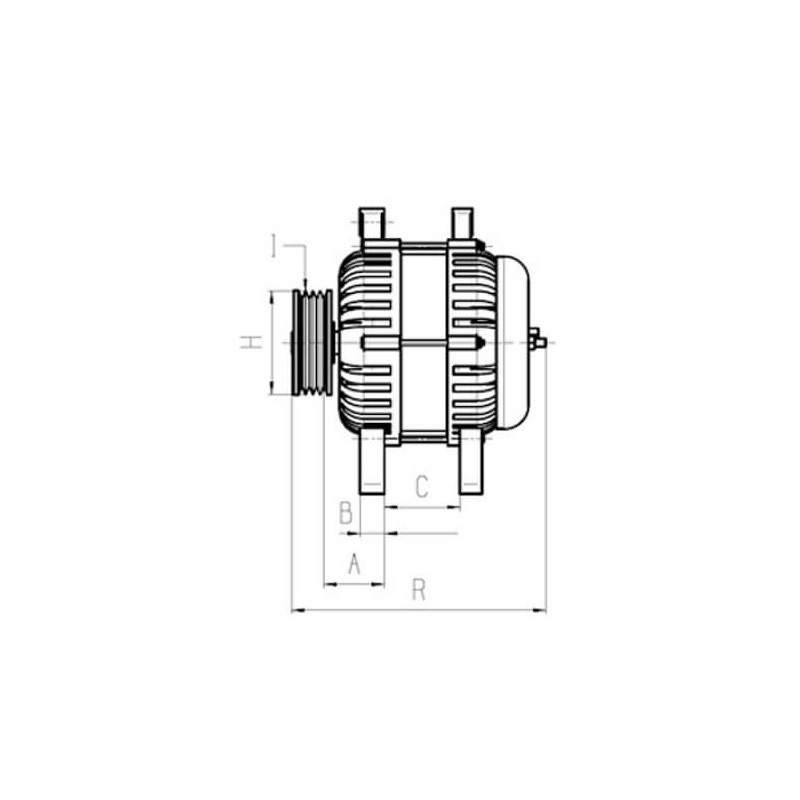

Physical information
A Pulley dist. 55.00
B Width/holder arm 33.50
C Mount. bracket dist. 58.00
D Bracket hole 10.00
E Belt. adj. brackethole pos. 50
G Belt. adj. bracket hole 10.00
H Pulley dia. 53.50
I Grooves/pulley 5
J Radius 92.00
J Radius 2 92.00
K B+ M8
K Position/B+ in min. 55
N Rotation CW
O Plug no. PL180
R Total length mm 194.00

generic brand replaces :

1202243 Opel
1202313 Opel
1202319 Opel
13512747 GM
135591140 PSH
13581893 GM
13588296 GM
19YY1715 Opel
209406 Messmer
2281941402 DRI
2620371A Valeo
286727 Elstock
4224 CEVAM
440747 Valeo
931331 EDR
95520020 Opel
AEK3617 Auto Electro
AH1451 Opel
DRA1331 Remy
DRA3446 Remy
LRA03617 Lucas
R5110927 Herth Buss
RNLTG12C184 RNL
TG12C137 Valeo
TG12C184 Valeo
TG12C285 Vale

for

Brand Model Typ Year
OPEL Zafira Tourer 1.6 CDTi [B16DTH] 01/02/13
OPEL Corsa 1.4 [A14XEL] 09.2009-08.2014
OPEL Insignia 1.4 [A14NET] 04.2011-03.2017
OPEL Corsa 1.4 [A14XER] 12.2009-08.2014
OPEL Insignia 1.4 [B14NET] 04.2011-03.2017
OPEL Insignia 1.4 LPG [A14NET] 07.2012-03.2017
OPEL Insignia 1.4 LPG [B14NET] 07.2012-03.2017
OPEL Insignia 1.4 LPG Sports Tourer [A14NET] 07.2012-06.2013
OPEL Insignia 1.4 LPG Sports Tourer [B14NET] 07.2012-06.2013
OPEL Insignia 1.4 Sports Tourer [A14NET] 09.2011-06.2013
OPEL Insignia 1.4 Sports Tourer [B14NET] 09.2011-06.2013
OPEL Corsa 1.2 [A12XEL] 12.2009-08.2014
OPEL Corsa 1.2 [A12XEL] 01.2010-08.2014
OPEL Meriva 1.4 [A14NEL] 06.2010-03.2017
OPEL Meriva 1.4 [A14NET] 06.2010-03.2017
OPEL Meriva 1.4 [A14XER] 06.2010-03.2017
OPEL Corsa 1.2 [A12XER] 12.2009-08.2014
OPEL Meriva 1.4 [B14NEL] 06.2010-03.2017
OPEL Meriva 1.4 [B14NET] 06.2010-03.2017
OPEL Meriva 1.4 [B14XER] 06.2010-03.2017
OPEL Corsa 1.2 [A12XER] 06.2010-08.2014
OPEL Meriva 1.4 LPG [A14NEL] 06.2011-03.2017
OPEL Meriva 1.4 LPG [B14NEL] 06.2011-03.2017
OPEL Corsa 1.2 LPG [A12XER] 06.2011-08.2014
