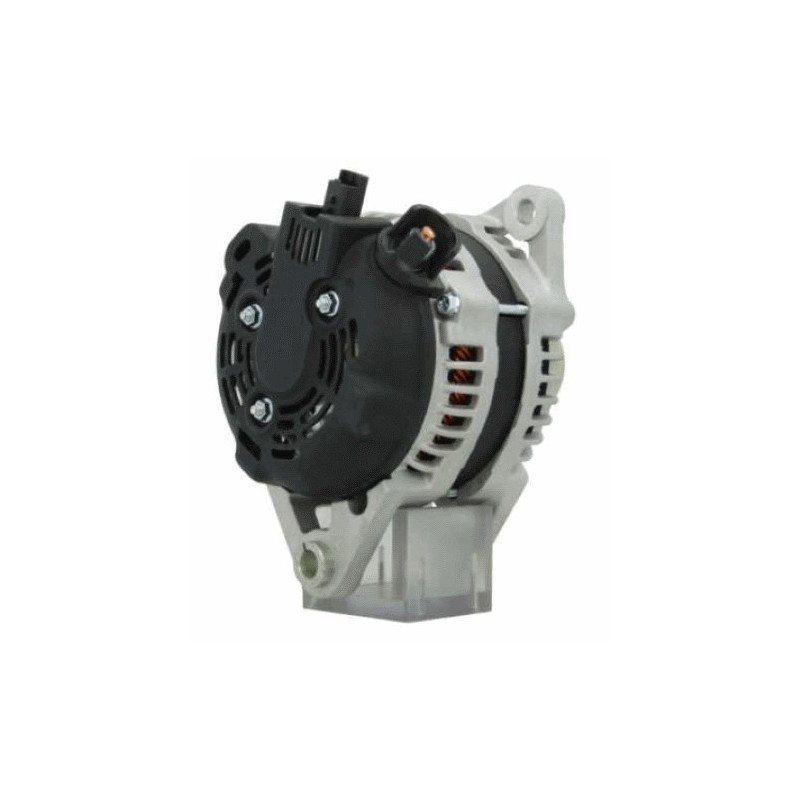

Alternator replacing DENSO 104210-5021 / 104210-5020 / 104210-2780
Alternator NEW Generic brand replaces :
= Alfa roméo 50500728
= DENSO104210-5021 / 104210-5020 / 104210-2780 / DAN936
= Elstock 28-5696
= FIAT 51734825 / 50500728
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 150
D = Bracket hole 12.00
G = Belt. adj. bracket hole 11.00
B = Width/holder arm 14.20
E = Belt. adj. brackethole pos. 54
C = Mount. bracket dist 64.50
H = Pulley dia. 61.50
A = Pulley dist. 28.00
Grooves/pulley 5
J = Radius 93.50
J = Radius 83.00
Position B + M8
Rotation Cr
Plug no. 1 PL72
Fan If
Pulley Serpentine Pulley/ Freewheel pulley
R = Total length mm 167.00

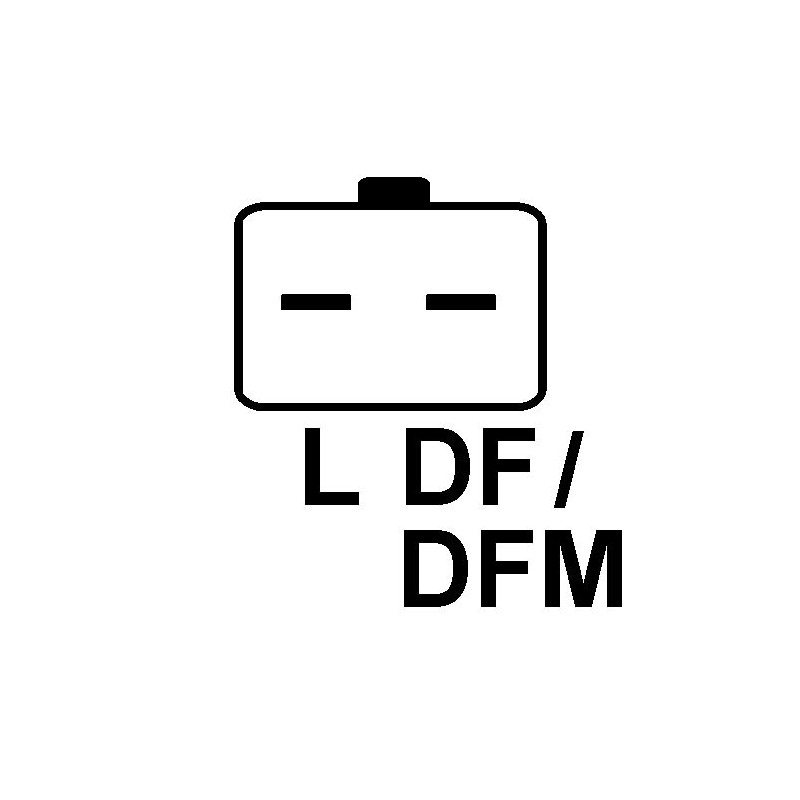

Tipo borne L-DFM
= Alfa roméo 50500728
= DENSO 104210-5021 / 104210-5020 / 104210-2780
= Elstock 28-5696
= FIAT 51734825 / 50500728
= LUCAS LRA03084
= MAGNETI MARELLI MAN7015 / 63377015
fits :
| brand | Model | Tipo | year |
| ALFA ROMEO | 159 2.4 JTDM | [939A3.000] | 01/09/05 |
| ALFA ROMEO | 159 2.4 JTDM | [939A9.000] | 01/05/07 |
| ALFA ROMEO | 159 2.4 JTDM Q4 | [939A9.000] | 01/05/07 |
| ALFA ROMEO | Brera 2.4 JTDM 20V | [939A3.000] | 01/01/06 |
| ALFA ROMEO | Brera 2.4 JTDM 20V | [939A9.000] | 01/05/07 |
| ALFA ROMEO | Spider 2.4 JTDM | [939A3.000] | 01/04/07 |
| FIAT | Croma 2.4 JTDM Multijet | [939A3.000] | 01/06/05 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
