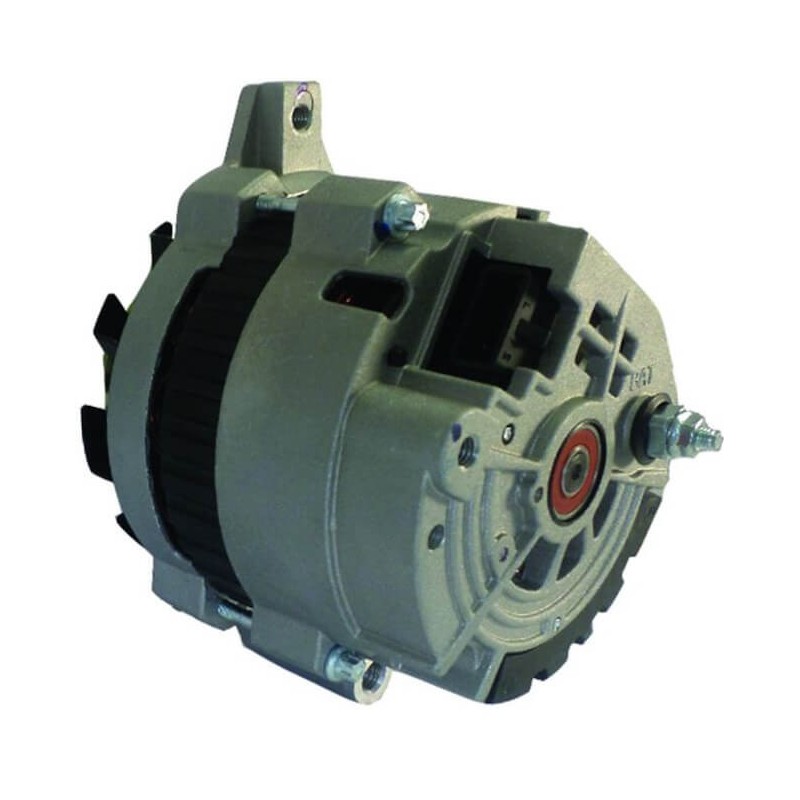

Alternator replacing 10463140 / 1101571 for Chevrolet / GMC

Specifications

    MFR:DELCO
    Mfr Series:CS130
    AMPERAGE:105
    DESIGN:IR/EF
    FEATURE 1:100% New
    FEATURE 2:OE performance output curve
    FEATURE 3:WAI-Transpo premium rectifier featuring press-fit avalanche diodes
    FEATURE 4:WAI-Transpo premium regulator with 20A MOSFET field transistor
    FEATURE 5:Premium, hi-temperature WBD bearings
    FEATURE 6:Hi-temperature class-H windings
    FEATURE 7:Precision CNC machined castings

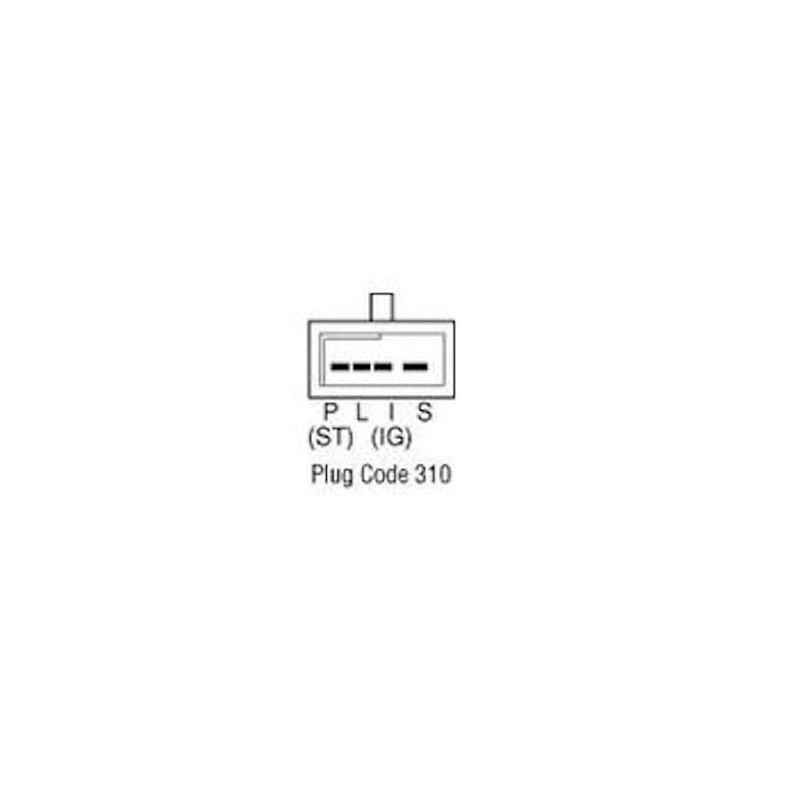

    NOTE 1:310 Plug Code
    NOTE 2:Neg. Grd.
    PLUG CLOCK:11:00 Plug Clock
    PULLEY CLASS:S6
    PULLEY NOTE:56mm OD
    ROTATION:CW
    SPECS FOR:Delco CS130 Series IR/EF
    SPECS:105 Amp/12 Volt, CW, 6-Groove Pulley, 11:00 Plug Clock
    VOLTAGE:12
