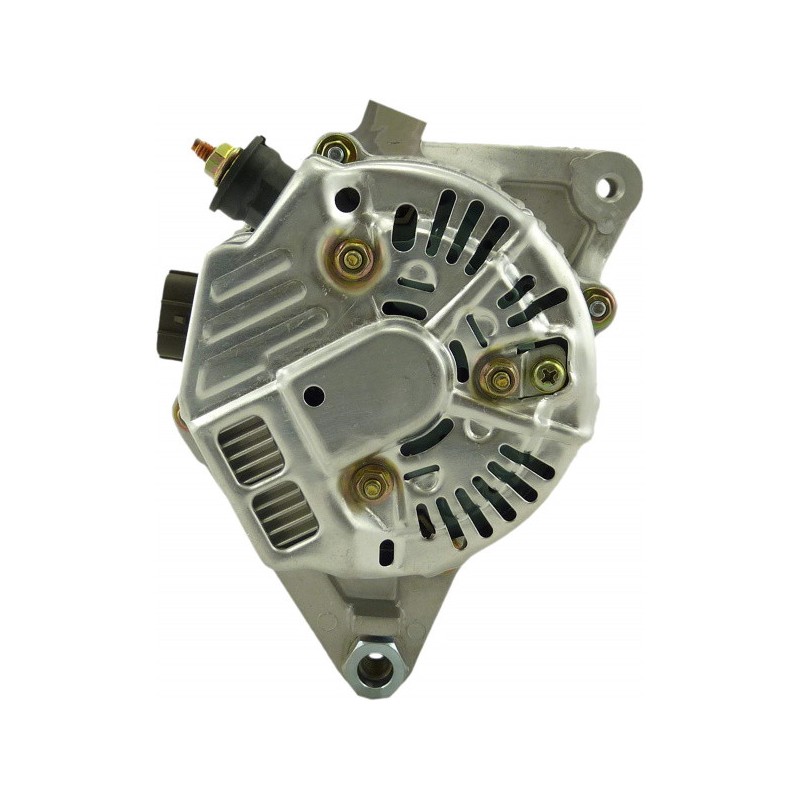

Alternator replacing 102211-5511 / 102211-5510 / 102211-2340 Toyota 80A
Alternator NEW for TOYOTA
DENSO102211-1900, 102211-1910, 102211-1920, 102211-2020, 102211-2180, 102211-2290, 102211-2340, 102211-2421, 102211-2610, 102211-5360, 102211-5640, 102211-6180, 9662219-261, GM 88969480
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Information:
Voltage 14
Amp 80
D = Bracket hole 11.00
G = Belt. adj. bracket hole M8
B = Width/holder arm 22.00
E = Belt. adj. brackethole pos. 50
C = Mount. bracket dist 40.50
H = Pulley dia. 54.50
A = Pulley dist. 34.00
Grooves/pulley 6
J = Radius 99.00
J = Radius 89.00
Position B + M6
Rotation Cr

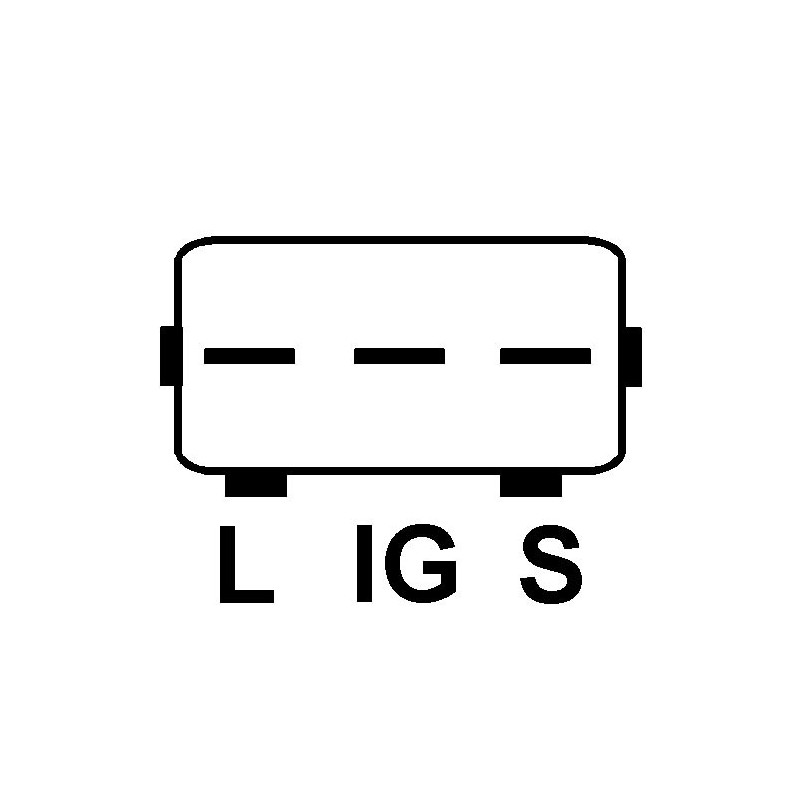

Plug no. 1 PL42
Fan If
Pulley Serpentine Pulley
brand + Line
replacing
0210800380 | Denso |
|---|---|
0210800450 | Denso |
063377428010 | Magneti Marelli |
063377429010 | Magneti Marelli |
063377430010 | Magneti Marelli |
063377431010 | Magneti Marelli |
063377432010 | Magneti Marelli |
0986049490 | Bosch Exchange |
0986AN0692 | Bosch Exchange |
0986CN0034 | Bosch Exchange |
0986CR0034 | Bosch Exchange |
0986UN0034 | Bosch Exchange |
0986UR0034 | Bosch Exchange |
102211190 | Denso |
1022111900 | Denso |
1022111910 | Denso |
102211192 | Denso |
1022111920 | Denso |
1022111921 | Denso |
1022111922 | Denso |
1022111923 | Denso |
1022111990 | Denso |
1022112000 | Denso |
1022112001 | Denso |
1022112020 | Denso |
1022112060 | Denso |
1022112180 | Denso |
1022112260 | Denso |
1022112290 | Denso |
1022112340 | Denso |
1022112350 | Denso |
1022112351 | Denso |
1022112420 | Denso |
1022112421 | Denso |
102211261 | Denso |
1022112610 | Denso |
1022115361 | Denso |
1022115362 | Denso |
1022115500 | Denso |
1022115510 | Denso |
1022115511 | Denso |
1022119430 | Denso |
1022119460 | Denso |
1022119460SEL | +line |
1022119480 | Denso |
1022119490 | Denso |
10443094 | Alanko |
114361 | Cargo |
12060808 | EuroTec |
1237301ND | WAI old |
13878 | Lester |
13878N | WAI |
13878R | WAI |
13879 | Lester |
13879N | WAI |
195552080 | PSH |
1986A01320 | Bosch |
20130219 | Prestolite |
2044109 | Sando |
22984 | Lester |
235184802 | DRI |
270600D060 | Toyota |
270600D110 | Toyota |
2706022020 | Toyota |
2706022030 | Toyota |
2706022040 | Toyota |
2706022070 | Toyota |
2706022080 | Toyota |
2706022090 | Toyota |
2706022100 | Toyota |
2706022130 | Toyota |
2706022150 | Toyota |
2706022160 | Toyota |
2706022170 | Toyota |
2706022180 | Toyota |
2706022200 | Toyota |
2706022210 | Toyota |
284668 | Elstock |
2905001A | PIC |
2905001F | PIC |
2905002 | PIC |
2905002A | PIC |
2905002B | PIC |
2905002C | PIC |
401703RI | DAS |
443094 | Alanko |
446015 | Logistik |
57184 | EAI |
600000165150 | Magneti Marelli |
6139SP | Spidan |
63377428 | Magneti Marelli |
63377430 | Magneti Marelli |
63377431 | Magneti Marelli |
63377432 | Magneti Marelli |
63377432010 | Magneti Marelli |
63731703 | Magneti Marelli |
88969482 | General Motors |
89213190 | PowerMax |
8EL012426251 | Hella |
90295494 | Wilson |
90295517 | Wilson |
934193 | EDR |
A131412 | Short code |
A148269 | Short code |
A149802 | Short code |
A6054 | AS-PL |
A8910 | Dixie |
A8914 | Dixie |
AA5388 | Auto Charge |
AA6962 | Auto Charge |
AA6963 | Auto Charge |
ADE1114 | Everkraft |
ADT31193 | Blue Print |
AEB1703 | Auto Electro |
AL02290 | TMI |
AL3300N | Bosch (USA) |
AL3300X | Bosch (USA) |
ALT30095 | Wood Auto |
ALT30287 | Wood Auto |
ALT30333 | Wood Auto |
ALT30414 | Wood Auto |
ALT30415 | Wood Auto |
ALT30570 | Wood Auto |
ALT5111A | Unipoint |
ALT6407sa | Electrolog |
ATA558 | ATK |
ATA613 | ATK |
ATA614 | ATK |
BXD1304N | Bosch (USA) |
CAL44109 | Casco |
DAN942 | Denso |
DAN944 | Denso |
DAN948 | Denso |
DAN949 | Denso |
DENDAN944 | Wood Auto |
DENDAN948 | Wood Auto |
DMS8100 | DriveTec |
DRA1009 | Remy |
DRA4193 | Remy |
F042205006 | Bosch |
F042302088 | Bosch |
F042A02088 | Bosch |
HJA1703IR | HC-Parts |
IR6159 | Protech |
J5112112 | Nipparts |
J5112134 | Magneti Marelli |
JA1703IR | HC-Parts |
KTR391104160 | KTR |
L45480 | ATL |
LRA02203 | Lucas |
LRA2203 | Lucas |
MAN7428 | Magneti Marelli |
MAN7430 | Magneti Marelli |
MAN7431 | Magneti Marelli |
MAN7432 | Magneti Marelli |
MRA90341 | Magneti Marelli |
OAN10392 | Optimum |
R5112216 | Herth Buss |
RNL1022111900 | RNL |
RNL1022111910 | RNL |
RNL1900 | RNL |
RNL1900ND | RNL |
SA234 | Sovereign |
SP6139 | Spidan |
TRA173 | TWA |
WOOALT30095 | Wood Auto |
WOOALT30287 | Wood Auto |
WOOALT30333 | Wood Auto |
WOOALT30414 | Wood Auto |
WOOALT30415 | Wood Auto |
WOOALT30570 | Wood Auto |
WSD24325 | Stabeco |
used on :
| Brand | Model | Tipo | Year |
| TOYOTA | Celica 1.8 VT-i 16V | [1ZZ-FE] | 08.1999-09.2005 |
| TOYOTA | Corolla 1.4 VVTi | [4ZZ-FE] | 01.2002-05.2004 |
| TOYOTA | Corolla 1.6 VVTi | [1ZR-FE] | 01/10/06 |
| TOYOTA | Corolla 1.6 VVTi | [3ZZ-FE] | 01/01/02 |
| TOYOTA | Corolla 1.6 VVTi Verso | [3ZZ-FE] | 01.2002-05.2004 |
| TOYOTA | Corolla 1.8 i 16V Verso | [1ZZ-FE] | 01.2002-05.2004 |
| TOYOTA | MR2 1.8 VT-i 16V | [1ZZ-FE] | 01/12/99 |
| TOYOTA | RAV4 1.8 i 16V | [1ZZ-FE] | 01/02/00 |
