Alternator replacing 03L903024 / 03L903024X / 104211-8380

Display all pictures

Alternator replacing 03L903024 / 03L903024X / 104211-8380

Reference: w116627

Condition: New product

2 Item Items

063377588010	Magneti Marelli
1042118380	Denso
1042118381	Denso
1042118382	Denso
1042118383	Denso
2115211402	DRI
286984	Elstock
305935140	PSH
40454	CEVAM
440904	Valeo
931484	EDR
AEK3874	Auto Electro
DAN1328	Denso
DRA1484	Remy
LRA03874	Lucas

More info

More info

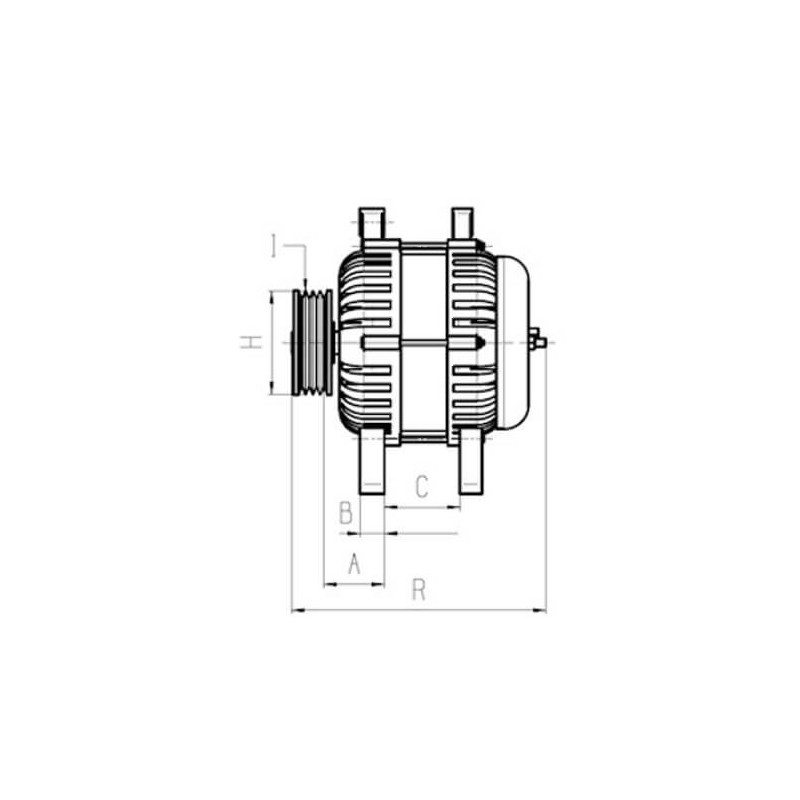

Physical information
A	Pulley dist.	39.50
B	Width/holder arm	13.80
C	Mount. bracket dist.	60.50
D	Bracket hole	8.50
E	Belt. adj. brackethole pos.	45
G	Belt. adj. bracket hole	8.50
G	Belt. adj. bracket hole 2	M8
H	Pulley dia.	56.20
I	Grooves/pulley	6
J	Radius	90.00
J	Radius 2	90.00
K	B+	M8
K	Position/B+ in min.	60
N	Rotation	CW
O	Plug no.	PL125
R	Total length mm	200.00

Catalogue information
	Pulley	SP/FW
	Fan	IF
	Relay	w/
	Regulator type	IR

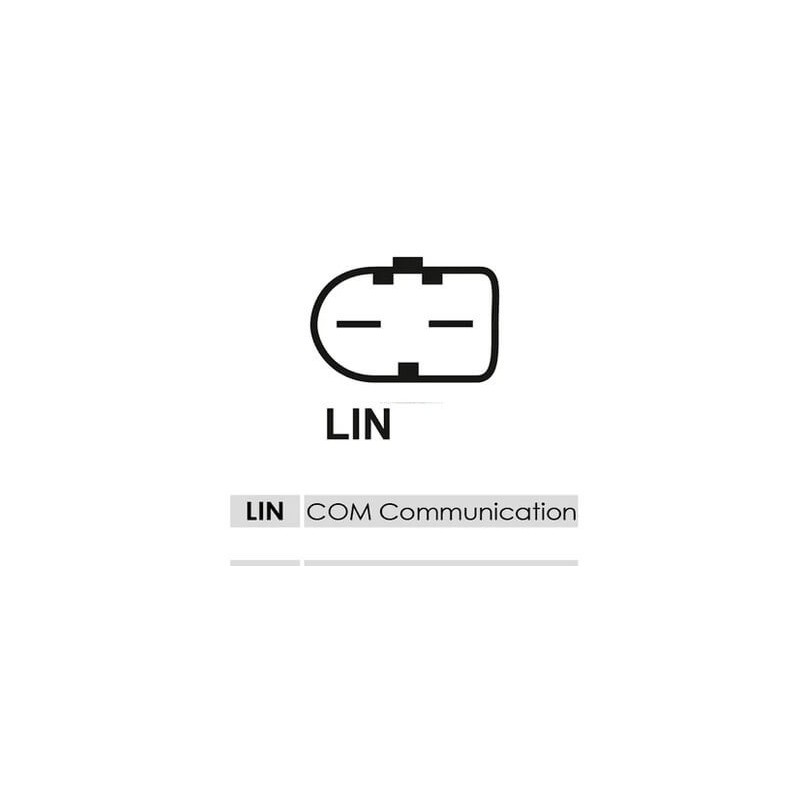

	Remarks	This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering

Electrical information
	Voltage	14
	Amp	140

generic brand

for

Brand	Model	Typ	Year
VW	Tiguan 2.0 TDi	[CBAB]	01/03/08
VW	Tiguan 2.0 TDi	[CFFB]	01/03/08
VW	Tiguan 2.0 TDi	[CFFD]	01/05/10
VW	Tiguan 2.0 TDi	[CUVE]	01/05/10
VW	Tiguan 2.0 TDi 4-Motion	[CBAA]	01/11/07
VW	Tiguan 2.0 TDi 4-Motion	[CBAB]	01/09/07
VW	Tiguan 2.0 TDi 4-Motion	[CFFA]	01/11/07
VW	Tiguan 2.0 TDi 4-Motion	[CFFB]	01/09/07
VW	Tiguan 2.0 TDi 4-Motion	[CFGC]	01/11/12
VW	Tiguan 2.0 TDi 4-Motion	[CLJA]	01/09/07
