Alternators for civil engineering and agricultural vehicule
Alternator NEW replacing BOSCH 0120689511 / 0120689514 / 0120689543 / 0120689548 / 0120689552
€379.90

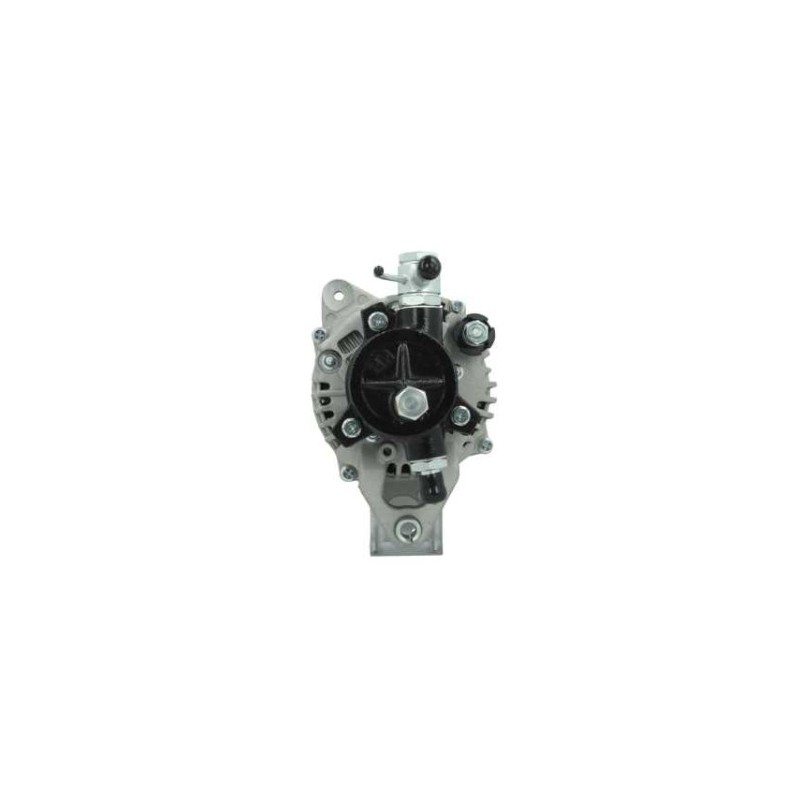

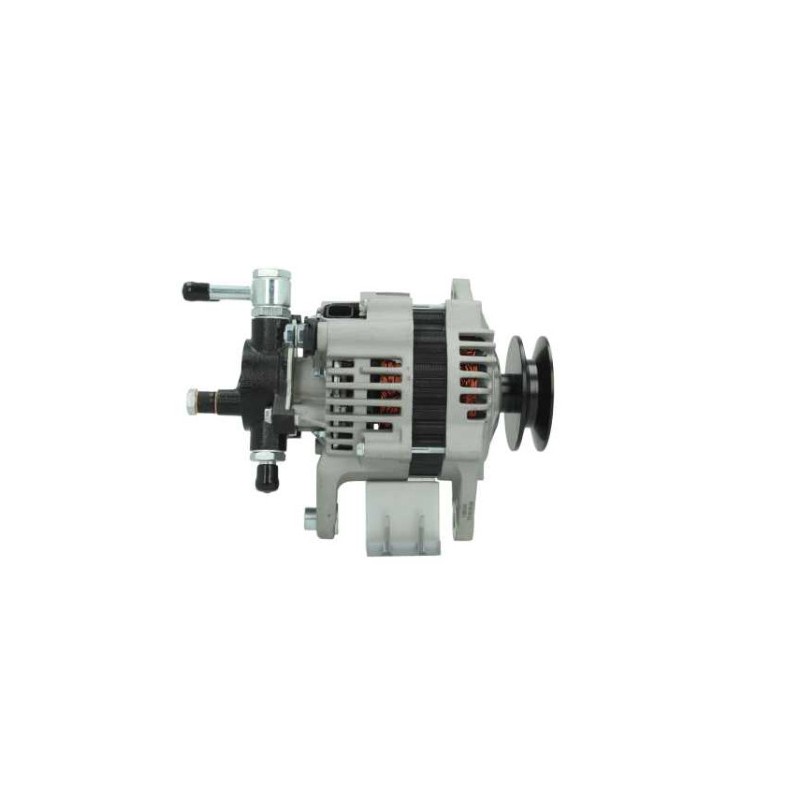

Alternator replacing LR160-503E / 897245-8502 / 23100-0H500
W20334N
Alternator NEW replacing :
HITACHI LR160-503E, LR170-503, ISUZU 897245-8502, NISSAN, INFINITI 23100-0H500
NO CORE EXCHANGE NEEDED
Features
Specs Electricals | ||
|---|---|---|
| Voltage | 12 | |
| Amp. | 60 | |
Physical Information | ||
|---|---|---|

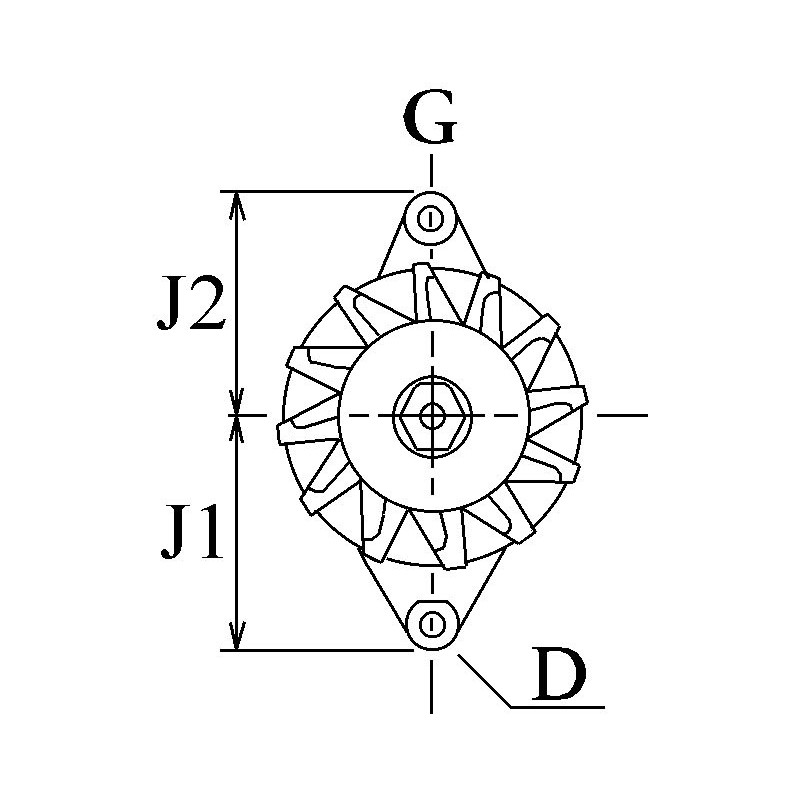

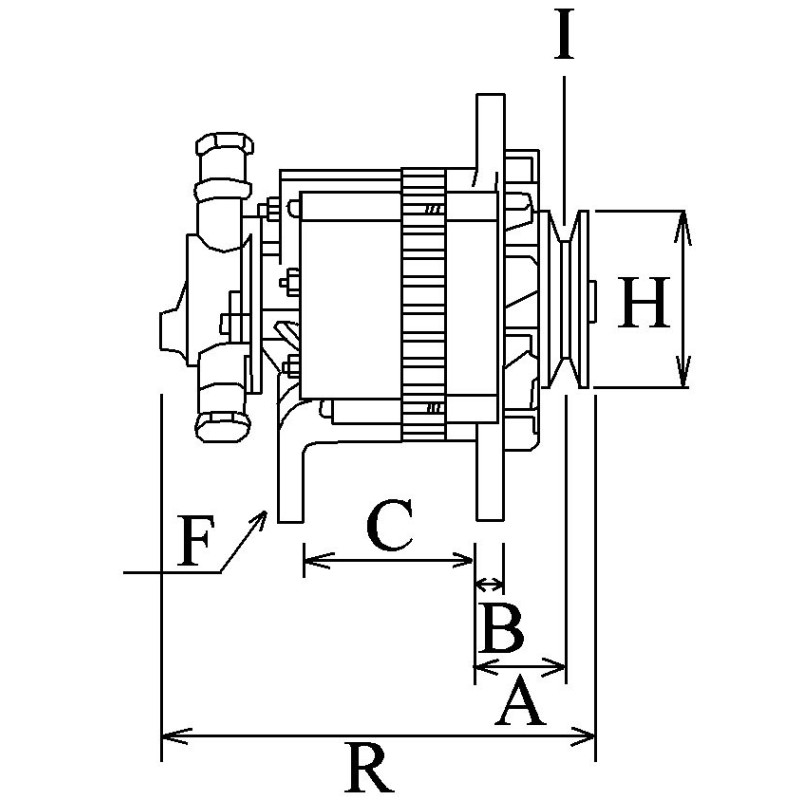

| A | Pulley dist. | 50.00 |
| B | Width/holder arm | 13.50 |
| C | Mount. bracket dist | 83.50 |
| D | Bracket hole | 10.30 |
| E | Belt. adj. brackethole pos. | 8 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 84.00 |
| I | Grooves/pulley | 1 |
| J | Radius | 84.00 |
| J | Radius 2 | 88.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 10 |
| N | Rotation | Cr |

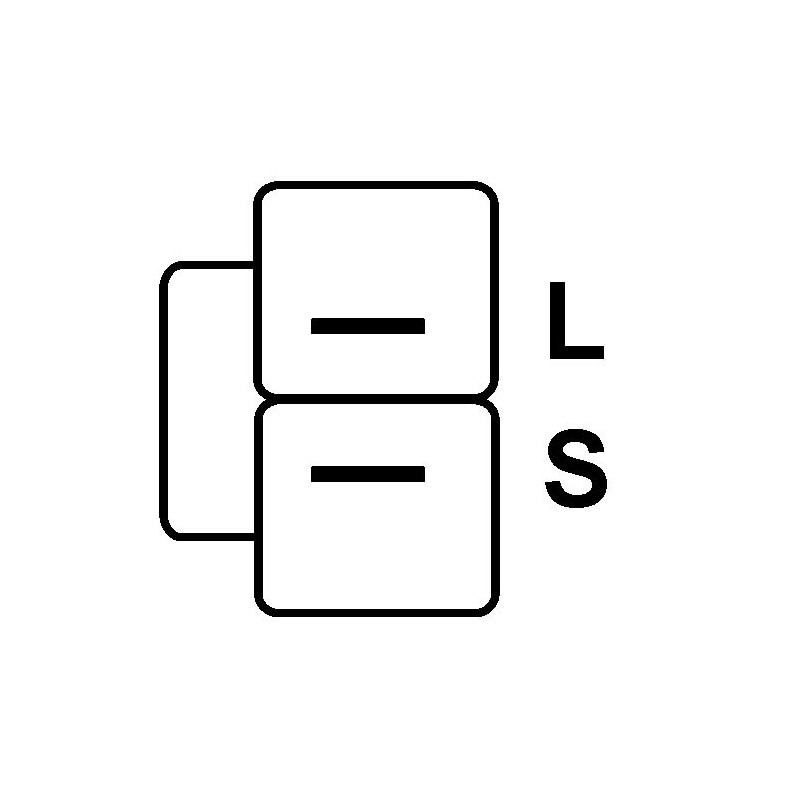

| O | Plug n° 1 | PL07 |
| R | Total length mm | 262.00 |
generic brand
Replacing :
Replacing | |
|---|---|
| 8972458502 | ISUZU |
| LR160-503 | HITACHI |
| LR160-503E | HITACHI |
Mounted on :
| D-Max | D-Max | 2.5 | Diesel | 2002 05 | - | 4JA1-TC | Diesel | 74 | 101 | Pick-up | 4WD | 2499 | 4 | 8DH |
| D-Max | D-Max | 3.0 | Diesel | 2002 05 | - | 4JH1-TC | Diesel | 96 | 131 | Pick-up | 4WD | 2999 | 4 | 8DH |
