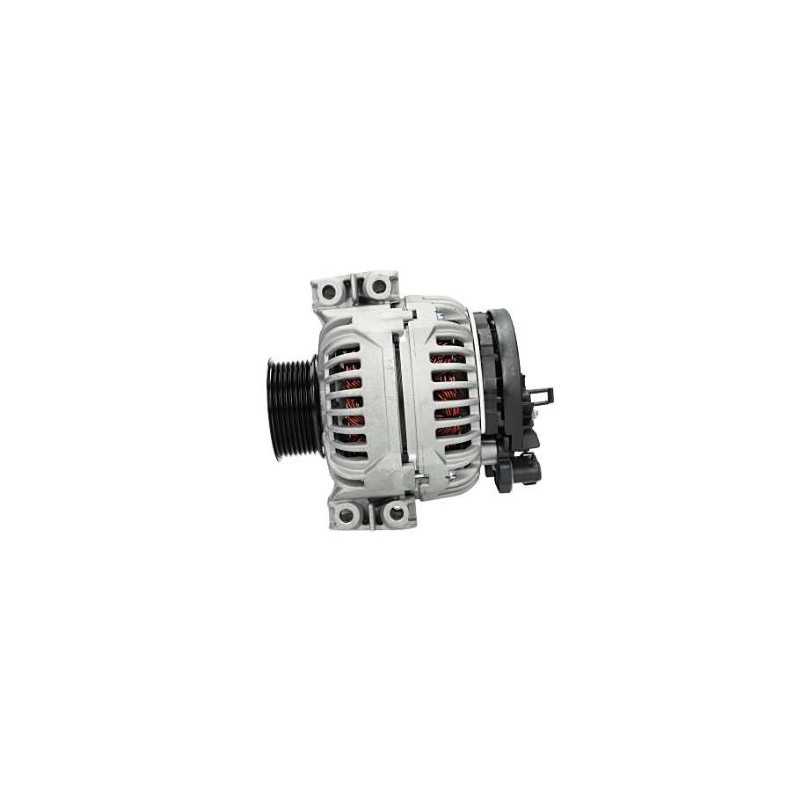

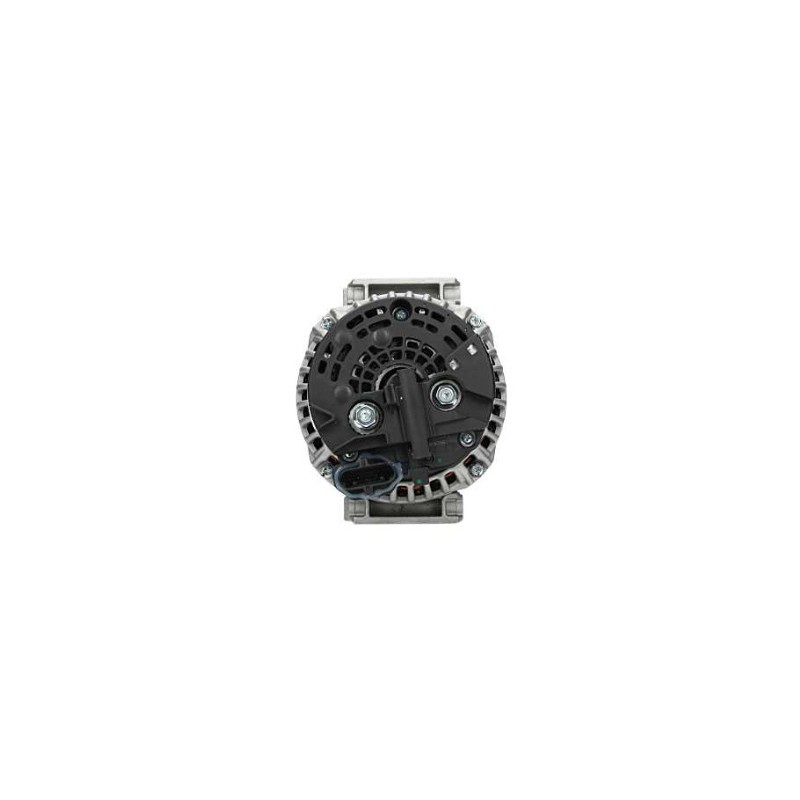

Alternator NEW BOSCH 0124655007 for SCANIA
Alternator NEW BOSCH 0124655007
the generic brand is under the reference w114753
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 100 | |

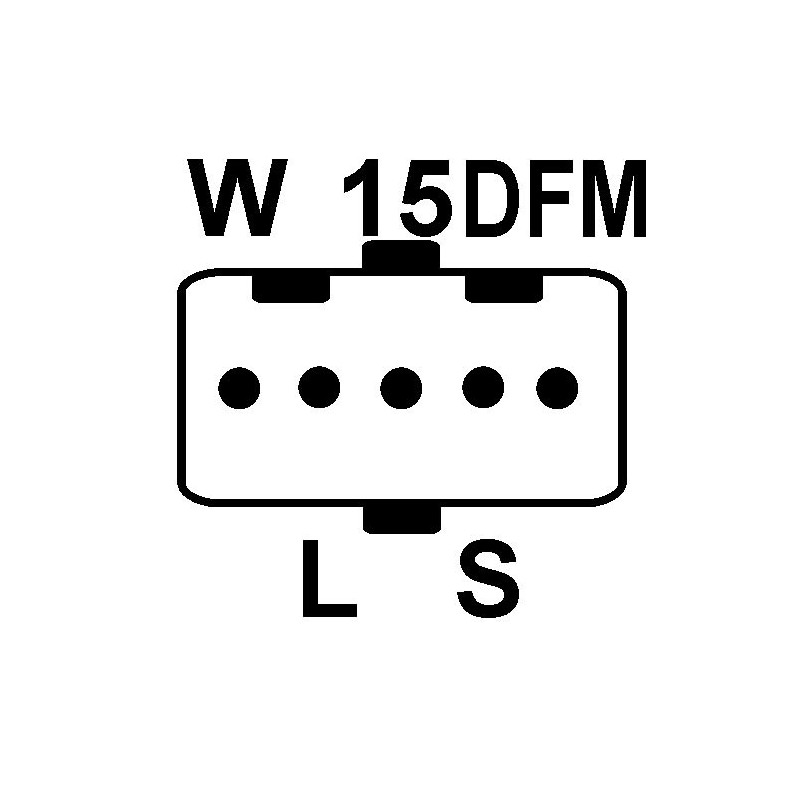

| Plug type | W | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.00x9.00 |
| G | Belt. adj. bracket hole | 9.50 |
| B | Width/holder arm | 85.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 35.50 |
| H | Pulley dia. | 72.00 |
| A | Pulley dist. | 20.00 |
| i | Grooves/pulley | 8 |
| j | Radius | 78.50 |
| j | Radius 2 | 78.50 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL82 |
| Q | Tipo prise W | Plug |
| R | Total length mm | 195,00 |
Replacing | |
|---|---|
| 0124655007 | BOSCH |
| 01888010 | SCANIA |
| 1774595 | SCANIA |
| CA1880IR | HC-PARTS |
| 0124655007 | BOSCH |
| 0124655007OR | Generic |
| 11209612 | MAHLE |
| 12047820 | EuroTec |
| 12723 | Lester |
| 12723N | WAI |
| 1777464 | SCANIA |
| 2205294 | PIC |
| 485549 | Elstock |
| 570884 | SCANIA |
| 6342SP | Spidan |
| 72446575 | MAHLE |
| 860805 | PRESTOLITE |
| 8EL738211571 | HELLA |
| 916503100 | PSH |
| 947820 | EDR |
| AAN5401 | MAHLE |
| ALT1247sa | Electrolog |
| ALT1318sa | Electrolog |
| ALT2116 | UNIPOINT |
| CA1880IR | HC |
| DRB7820 | DELCO REMY |
| DRB7820X | DELCO REMY |
| F042301128 | BOSCH |
| F042A01128 | BOSCH |
| HCA1880IR | HC |
| IA9460 | MAHLE |
| LRA02935 | LUCAS |
| MG797 | MAHLE |
Mounted on SCANIA :
SERIES : P G R T - Pick-up - Trailer - Tombereau - Camion to ordures -
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.39 | 169 | 230 | Pick-up | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.30 | 169 | 230 | Trailer | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.30 | 169 | 230 | Pick-up | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.35 | 169 | 230 | Pick-up | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.35 | 169 | 230 | Pick-up | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.35 | 169 | 230 | Trailer | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.30 | 169 | 230 | Pick-up | 9300 | 5 |
| P,G,R,T - Series | 230 | 9.3 | Diesel | 2007 09 | DC9.30 | 169 | 230 | Trailer | 9300 | 5 |
| P,G,R,T - Series | 340 | 11.7 | Diesel | 2005 09 | DC12.13 | 280 | 380 | Pick-up | 11700 | 6 |
| P,G,R,T - Series | 380 | 11.7 | Diesel | 2005 09 | DC12.13 | 280 | 380 | Pick-up | 11700 | 6 |
