Alternator replacing 100210-4620 / 27030-ye010
Alternator NEW replacing DENSO 1002104620 / TOYOTA 27030-ye010
fits TOYOTA Hilux 2.4 diesel
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 50 | |

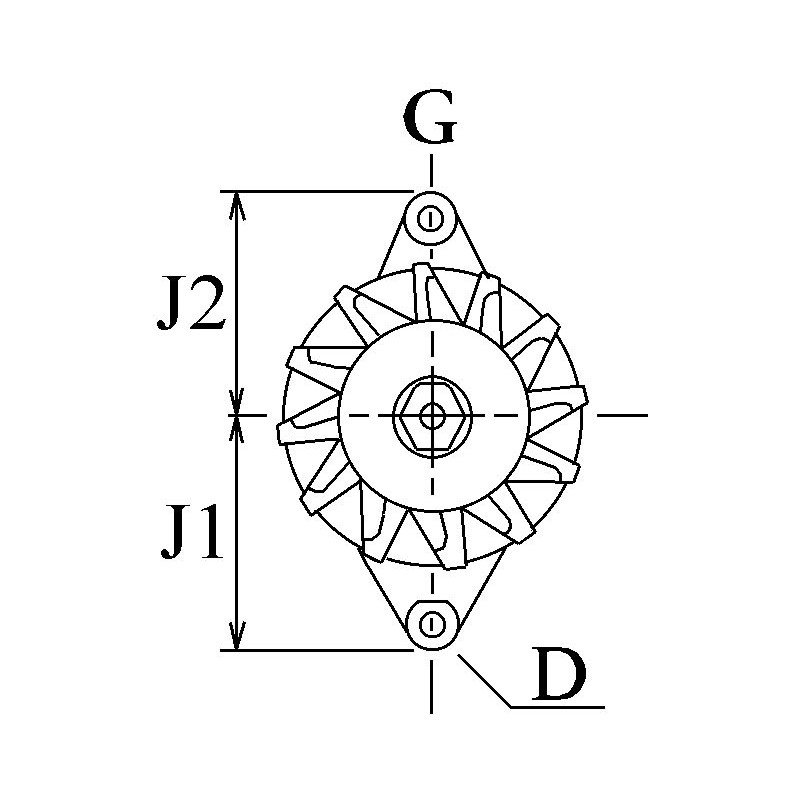

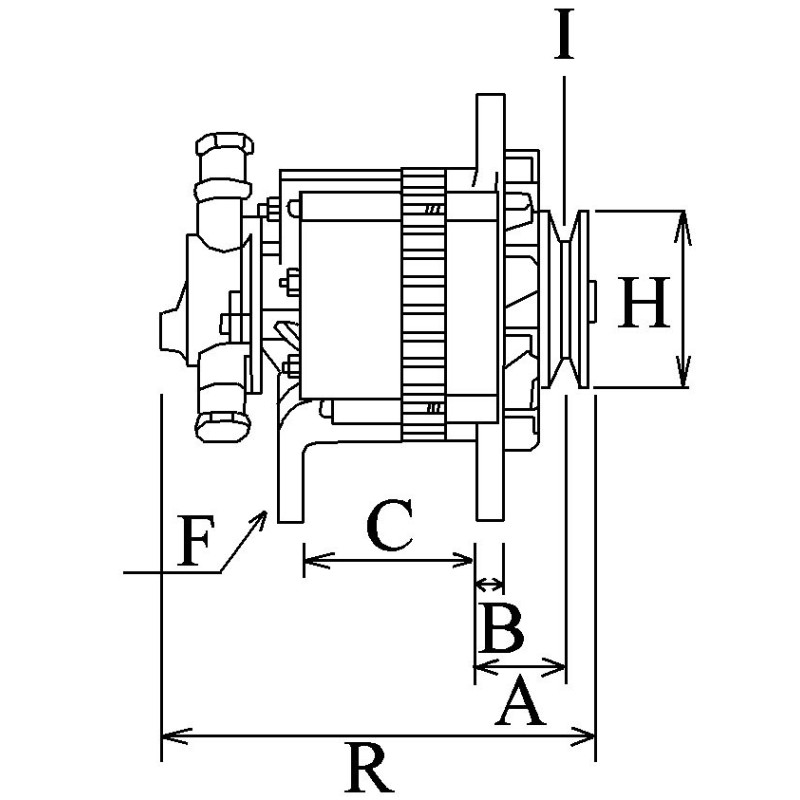

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 14.00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 97.00 |
| H | Pulley dia. | 72.00 |
| A | Pulley dist. | 50.00 |
| i | Grooves/pulley | 2 |
| j | Radius | 89.70 |
| j | Radius 2 | 88.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

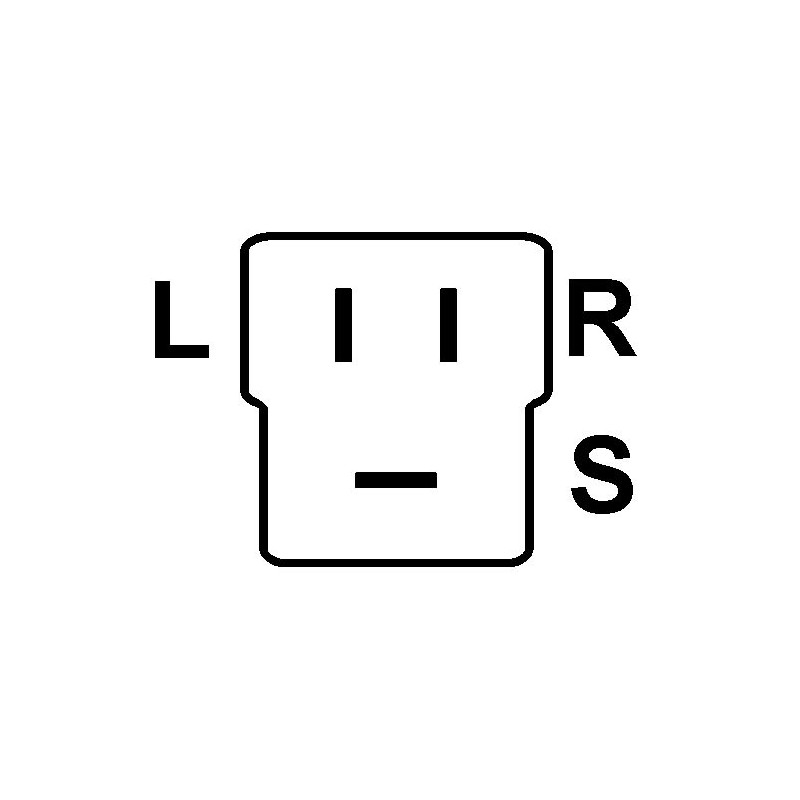

| o | Plug no. 1 | PL05 |
| R | Total length mm | 273.00 |
Replacing | |
|---|---|
| 100210-4620 | DENSO |
| 27030-ye010 | TOYOTA |
brand bosch
| Hilux | Hilux | 2.4 | Diesel | 1984 01 | 1988 08 | 2L | Diesel | 55 | 75 | Pick Up | 4WD | 2446 | 4 | _N_ |
| Hilux | Hilux | 2.4 | Diesel | 1994 01 | 2005 07 | 2L | Diesel | 58 | 79 | Pick Up | 4WD | 2466 | 4 |
TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED
