Alternator replacing ISKRA aak5376 / aak5565 / KHD 01183195 / 01183443

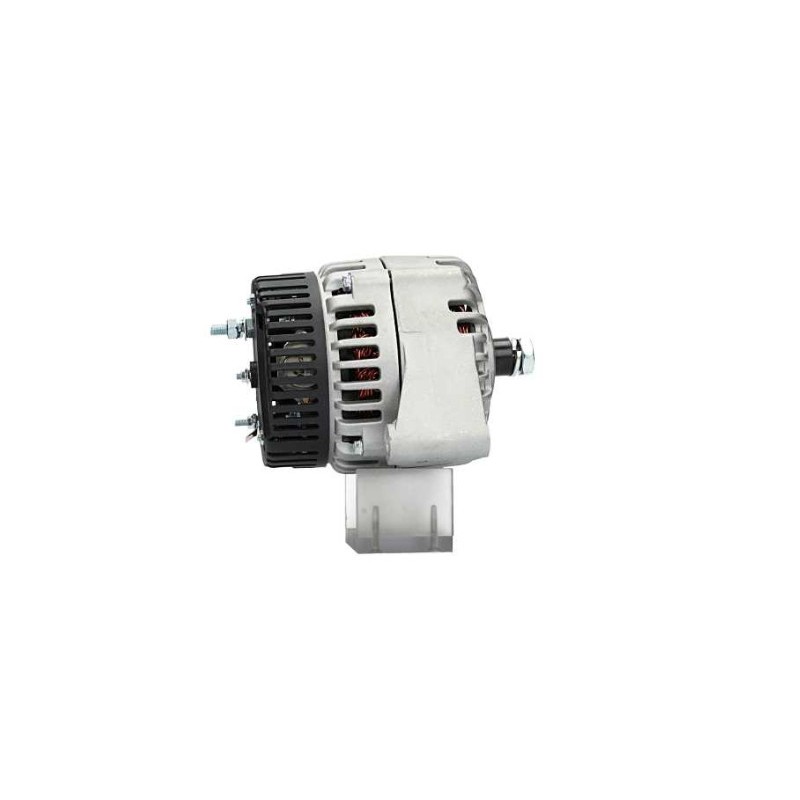

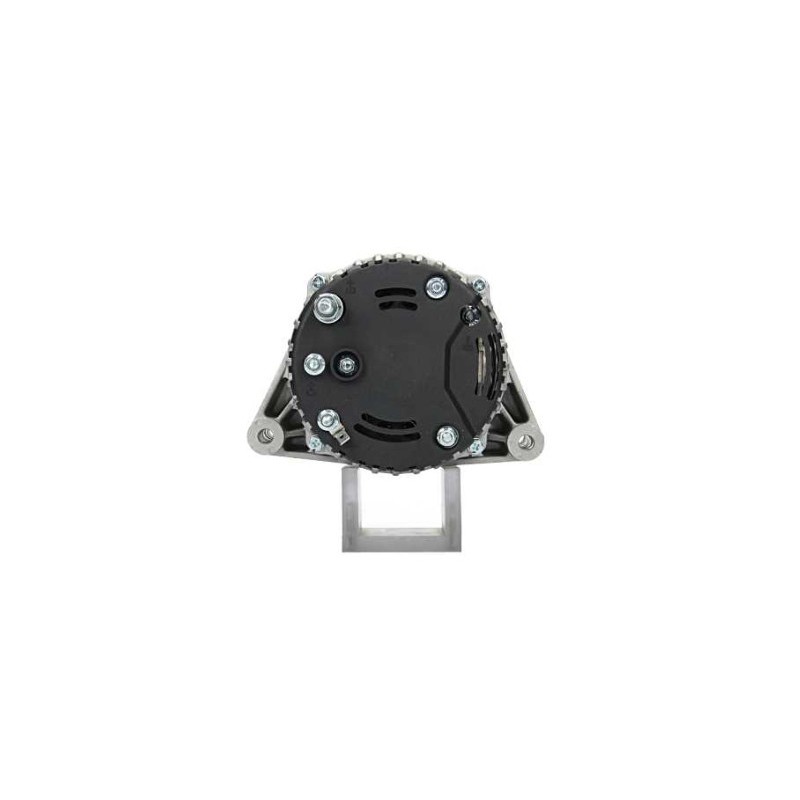

Alternator NEW replacing KHD 01183195 / 01183443 / 01183626 / 1183195 / 1183443
ISKRA IA1076 / MG337 / AAK5376 / 11.203.155 / 11.203.396
Sold WITHOUT pulley
Alternator ISKRA available here w113738
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information :
Electrical Information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 55 | |
| Plug type | W | |

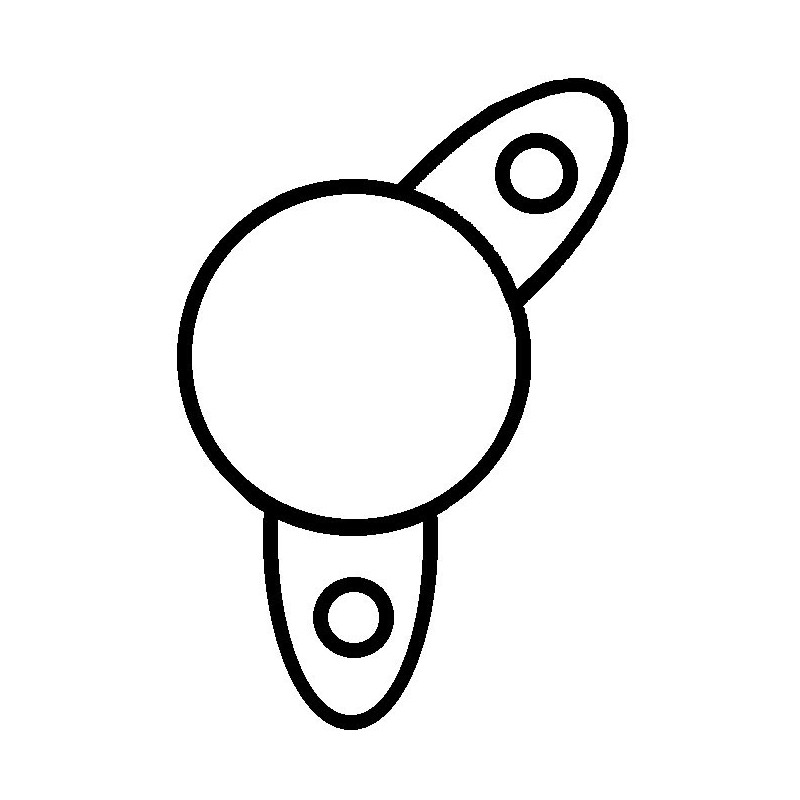

Physical Information | ||
|---|---|---|
| D | Bracket hole | 8.20 |
| G | Belt. adj. bracket hole | 8.20 |
| B | Width/holder arm | 56.00 |
| E | Belt. adj. brackethole pos. | 10 |
| j | Radius | 90.50 |
| j | Radius 2 | 89.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| Q | Tipo prise W | M5-6.3 |
| R | Total length mm | 193.75 |
Replacing | |
|---|---|
| 01183195 | KHD |
| 01183443 | KHD |
| 01183626 | KHD |
| 11.203.155 | ISKRA |
| 11.203.396 | ISKRA |
| 11.204.040 | ISKRA |
| 1183195 | KHD |
| 1183443 | KHD |
| aak5376 | ISKRA |
| aak5565 | ISKRA |
| Fan | If | |
| Pulley | Without | |
| Tipo regulator | Ir | |
| Vaccum pump | Without | |
| 01182167 |
| 01182403 |
| 01183195 |
| 01183443 |
| 01183626 |
| 11203155 |
| 11203155CO |
| 11203396 |
| 113738 |
| 1182167 |
| 1182403 |
| 1182959 |
| 18201076 |
| 516502055 |
| 516502055090 |
| 516502055310 |
| 516502055310001 |
| 516502055311 |
| 90236546 |
| AAK5376 |
| AAK5565 |
| AAK5734 |
| ALT7905sa |
| ALT7916sa |
| DRA0747 |
| IA1076 |
| IA1076+ |
| MG337 |
Generic Brand
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
