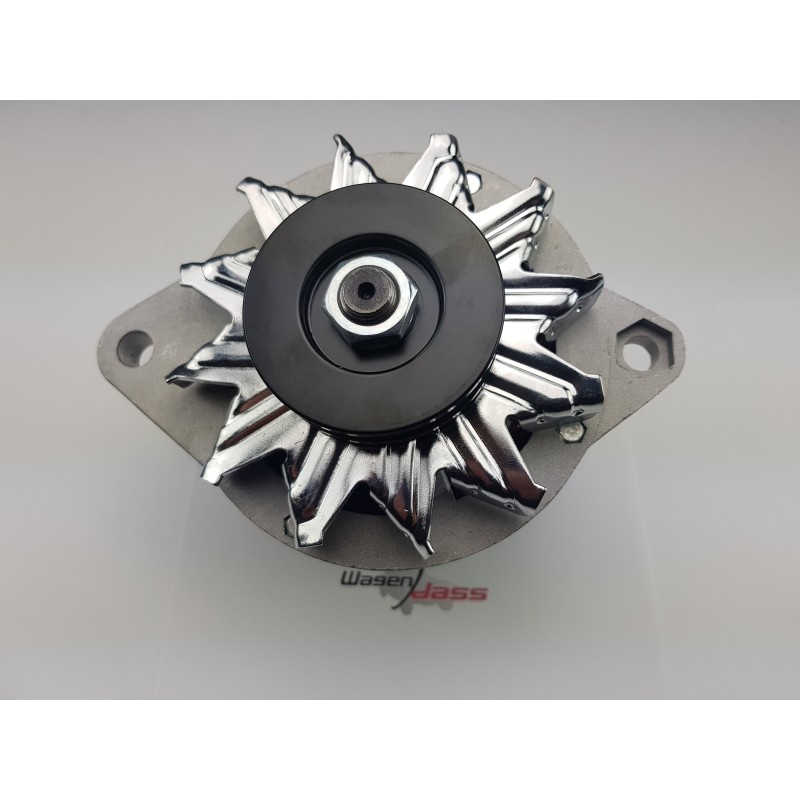

Alternator NEW replacing MAGNETI MARELLI 63304800 / 63303500 / 63303192

Information:

Voltage 14

Amp 55

D = Bracket hole 12.20

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 17.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 65.00

H = Pulley dia. 69.00

A = Pulley dist. 48.00

Grooves/pulley 1

J = Radius 85.00

J = Radius 81.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

 R =  Total length mm 175.00

= DELCO REMY 19025037

= Elmot 3370000/ A124N

= FIAT 4152101  / 4166213  / 4174626  / 4242498  / 4329019  / 4474903
4474904  / 4475303  / 77138410 / A12M1241242X

=FEMSA ALB4068  / ALB4086

= LUCAS LRA00137 / LRA00841 / LRA01044 / LRA1044 / LRA137 / LRA841

 = MAGNETI MARELLI 63303100  / 63303110  / 63303120  / 63303130
63303140  / 63303150  / 63303191 / 63303192
63303500  / 63304800  / 63303100  / 63303110
63303120  / 63303130 / 63303140  / 63303150
63303191 / 63303192  / 63303500  / 63304800

                                                        TWO YEARS WARRANTY
