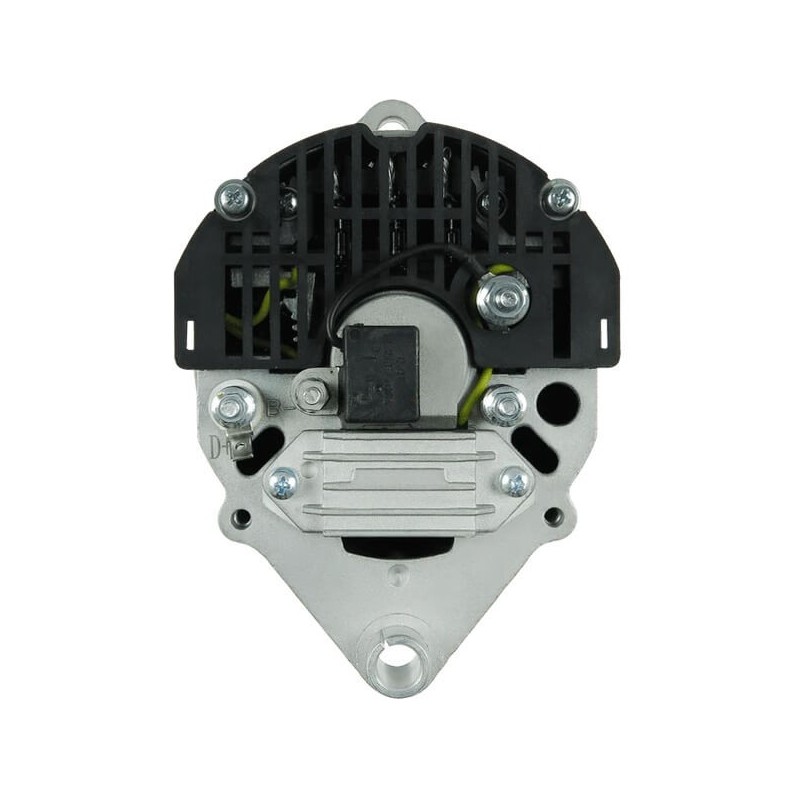

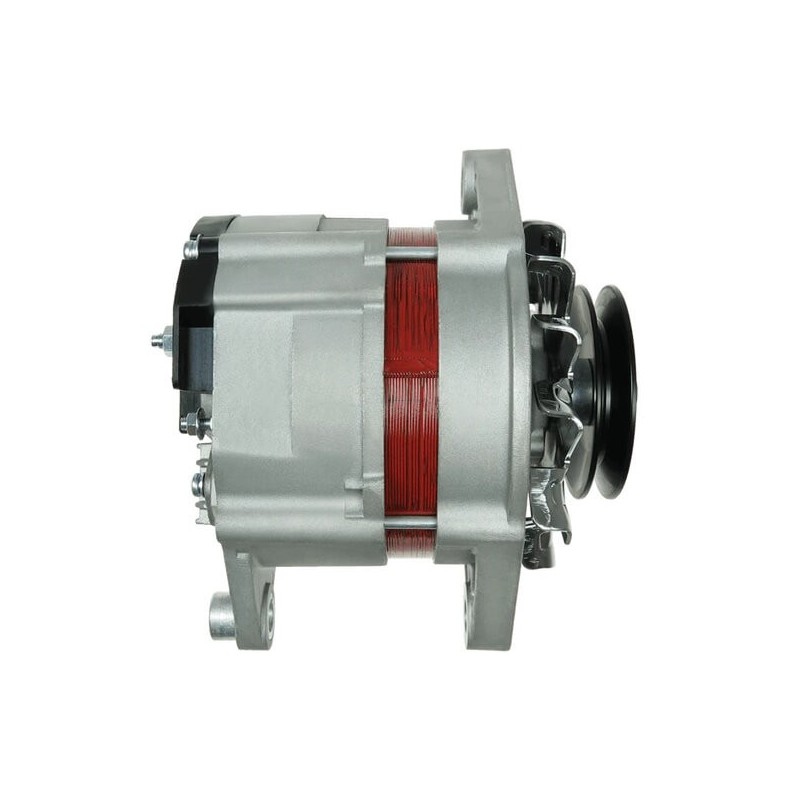

Alternator replacing BOSCH 0120489765 / 0120489762 / 0120489761

Information:

Voltage 14

Amp 45

D = Bracket hole 12.20

G = Belt. adj. bracket hole 10.50

B = Width/holder arm 16.25

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 63.00

H = Pulley dia. 71.30

A = Pulley dist. 47.00

Grooves/pulley 1

J = Radius 84.00

J = Radius 92.00

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Without

Pulley Pulley

R = Total length mm 181.50

generic brand

= BOSCH 0120489765 / 0120489762 / 0120489761

0120489145 / 0120489106

= DENSO 021000-0320

= ISKRA AAK4162 / AAK3197 / 11.209.443 / 11.201.336 / 11.201.070

= LUCAS LEA0451 / LEA0029 / 61920270

= MAGNETI MARELLI 943356305 / 943321044 / 943320021

943305226 / 63321037 / 63321036 / 63321035

63320021 / 63307256

= FIAT 2022607 / 4152612 / 46231751 / 4711700

4721587 / 4787665 / 4808498 / 5101645 / 7565244

77028550 / 77515410

= IVECO 4808497 / 42498239

= Alfa roméo AT050600108

            NO CORE EXCHANGE NEEDED

                              TWO YEARS WARRANTY
