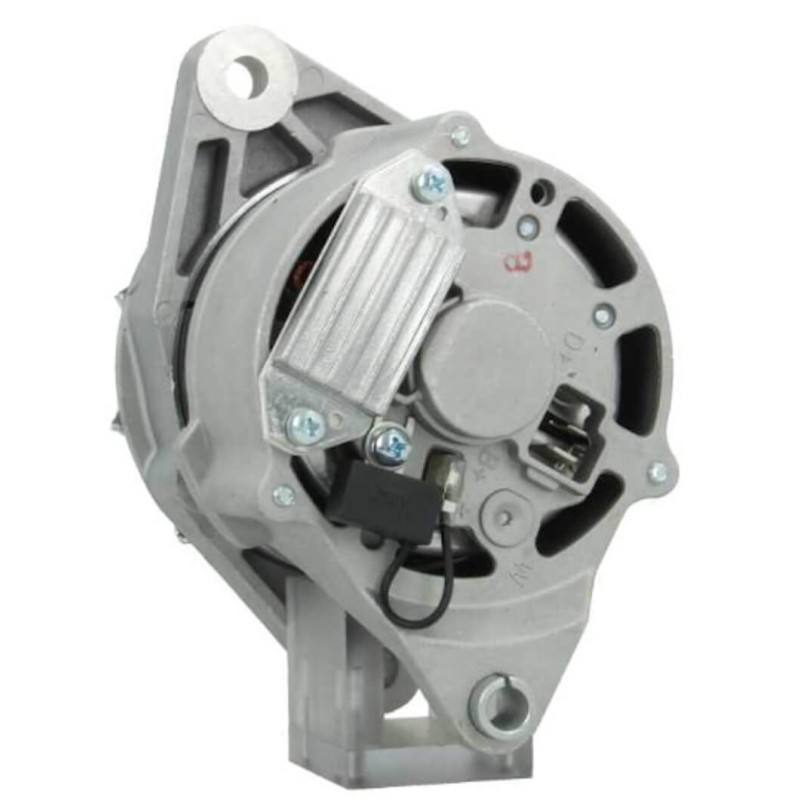

Alternator replacing BOSCH 0120300569 / 0120300568 / 0120300559
Alternator NEW Generic brand for Agrifull, DAF, FIAT, VOLVO
Le régulateur externe correspondant to cet alternator se trouve on notre site sous la Reference w130675
NO CORE EXCHANGE NEEDED E
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 33
D = Bracket hole 10.45
G = Belt. adj. bracket hole 10.50
B = Width/holder arm 24.00
E = Belt. adj. brackethole pos. 4
C = Mount. bracket dist 74.00
H = Pulley dia. 82.10
A = Pulley dist. 48.45
Grooves/pulley 1
J = Radius 86.35
J = Radius 76.50
Position B + Plug
Rotation Cr

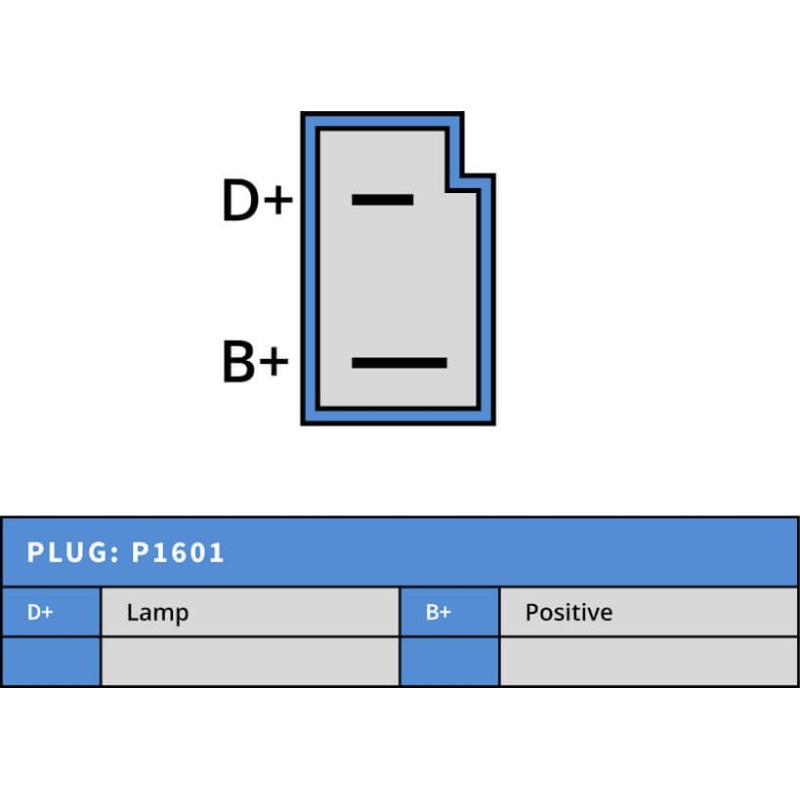

Plug no. 1 PL29
Fan Ef
Pulley Pulley
= BOSCH 0120300569 / 0120300568 / 0120300559 / 0120300558 / 0120300529
0120300528 / 0986030120 / 0986030121
= MAGNETI MARELLI 63362006 / 63362004 / 63362003 / 63300506
= FIAT 4224325 / 4257063 / 4257074 / 4257771 / 4274815 / 4275283
4275285 / 4275286 / 4325179 / 4474815 / 4474816
= LUCAS LRA00199 / LRA00913 / LRA199 / LRA913
for
| DAF | 66 | 1.1 | 1972 - 1975 | 1108cc, 4cyl, 48HP |
| DAF | 66 | 1.1 MARATHON | 1972 - 1975 | 1108cc, 4cyl, 54HP |
| DAF | 66 | 1.1 SL | 1972 - 1975 | 1108cc, 4cyl, 54HP |
| DAF | 66 | 1300 MARATHON | 1973 - 1975 | 1298cc, 4cyl, 57HP |
| FIAT | 127 | 0.9 | 1971 - 1983 | 903cc, 4cyl, 40HP |
| FIAT | 127 | 0.9 | 1971 - 1983 | 903cc, 4cyl, 45HP |
| FIAT | 127 | 0.9 | 1972 - 1982 | 903cc, 4cyl, 45HP |
| FIAT | 127 | 1.0 | 1972 - 1982 | 1010cc, 4cyl, 52HP |
| FIAT | 127 | 1.0 | 1977 - 1986 | 1049cc, 4cyl, 50HP |
| FIAT | 127 | 1.0 Sport | 1978 - 1982 | 1049cc, 4cyl, 70HP |
| FIAT | 128 | 1.1 | 1969 - 1984 | 1116cc, 4cyl, 55HP |
| FIAT | 128 | 1.1 | 1975 - 1981 | 1116cc, 4cyl, 45HP |
| FIAT | 128 | 1.1 (AC 5) | 1972 - 1981 | 1116cc, 4cyl, 64HP |
| FIAT | 128 | 1.1 (AC 5) | 1975 - 1981 | 1116cc, 4cyl, 65HP |
| FIAT | 128 | 1.1 (AF) | 1969 - 1982 | 1116cc, 4cyl, 55HP |
| FIAT | 128 | 1.1 (AF) | 1975 - 1981 | 1116cc, 4cyl, 45HP |
| FIAT | 128 | 1.3 (AC) | 1972 - 1979 | 1290cc, 4cyl, 75HP |
| FIAT | 128 | 1.3 (AF1) | 1974 - 1982 | 1290cc, 4cyl, 60HP |
| FIAT | 128 | 1.3 Berlinetta (AC) | 1975 - 1979 | 1290cc, 4cyl, 73HP |
| FIAT | 128 | 1.3 Rally (AR) | 1971 - 1976 | 1290cc, 4cyl, 67HP |
| FIAT | 128 | 1.3 Sport | 1974 - 1984 | 1290cc, 4cyl, 60HP |
| FIAT | FIORINO | 1050 | 1980 - 1987 | 1049cc, 4cyl, 50HP |
| FIAT | X | 1.3 | 1973 - 1979 | 1290cc, 4cyl, 75HP |
| FIAT | X | 1.3 | 1975 - 1978 | 1290cc, 4cyl, 73HP |
| FORD | SCORPIO | 2.0 i 16V | 1994 - 1998 | 1998cc, 4cyl, 136HP |
| VOLVO | 66 | DL 1.1 | 1975 - 1978 | 1108cc, 4cyl, 45HP |
| VOLVO | 66 | DL 1.1 | 1975 - 1979 | 1108cc, 4cyl, 45HP |
| VOLVO | 66 | GL 1.3 | 1975 - 1978 | 1289cc, 4cyl, 57HP |
| VOLVO | 66 | GL 1.3 | 1975 - 1979 | 1289cc, 4cyl, 57HP |
| ZASTAVA | 101 | 1.1 | 1973 - 1990 | 1116cc, 4cyl, 55HP |
| ZASTAVA | 101 | 1.1 | 1975 - 1980 | 1116cc, 4cyl, 50HP |
| ZASTAVA | 101 | 1.1 | 1975 - 1993 | 1116cc, 4cyl, 56HP |
| ZASTAVA | 101 | 1.1 Super | 1979 - 1981 | 1116cc, 4cyl, 64HP |
NO CORE EXCHANGE NEEDED E
TWO YEARS WARRANTY
