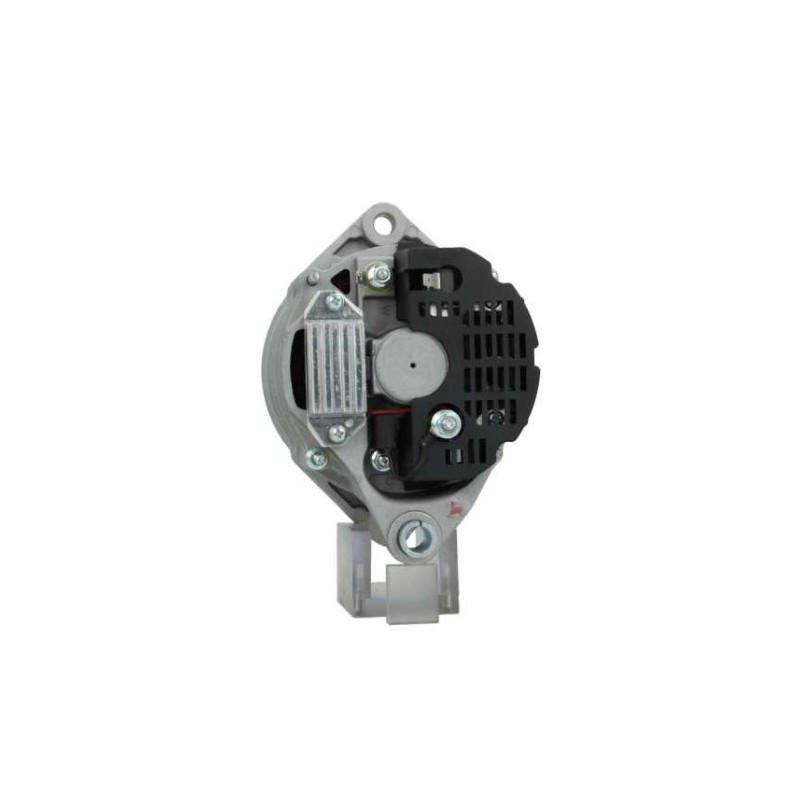

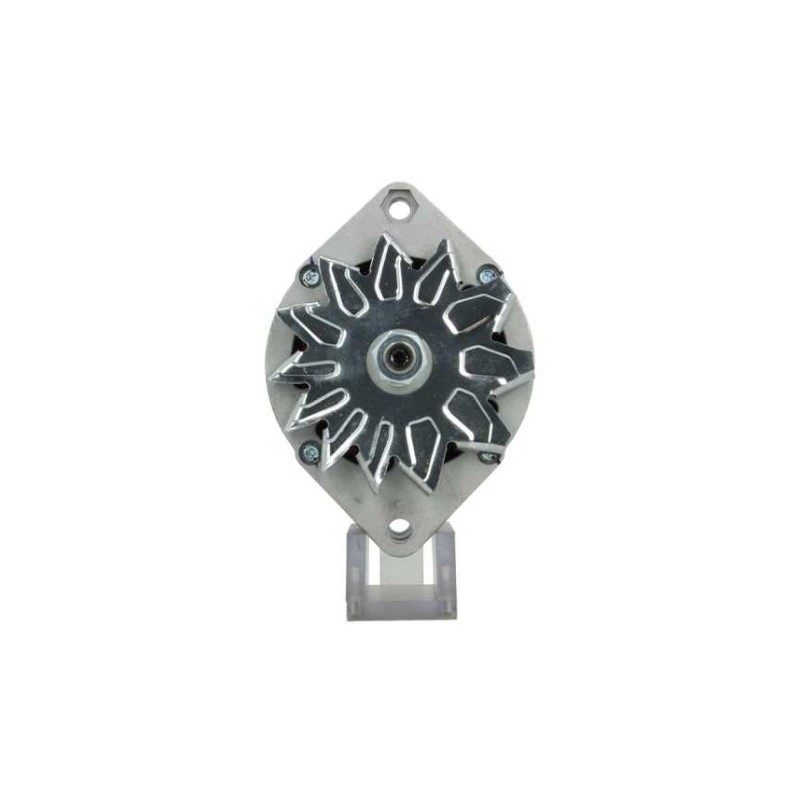

Alternator NEW replacing :
NEW HOLLAND 500322763 / 500322764 /
MAGNETI MARELLI 63304807 / 63320124 / 63320137 /
Sold WITHOUT pulley
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
| Voltage | 14 | |
| Amp. | 65 | |
| Terminal | W | |
| B | Width/holder arm | 17.00 |
| C | Mount. bracket dist | 65.00 |
| D | Bracket hole | 12.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 11.00 |
| J | Radius | 85.00 |
| J | Radius 2 | 80.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 60 |
| N | Rotation | Cr |
| O | Plug n° 1 | PL_NA |
| Q | Typ prise W | 6.30 |
| R | Total length mm | 170.00 |
Replacing |
|
|---|---|
| 500322763 | NEW HOLLAND |
| 500322764 | NEW HOLLAND |
| 63304807 | MAGNETI MARELLI |
| 63320124 | MAGNETI MARELLI |
| 63320137 | MAGNETI MARELLI |
| 63321424 | MAGNETI MARELLI |
| 63321458 | MAGNETI MARELLI |
| 63321492 | MAGNETI MARELLI |
| 63321502 | MAGNETI MARELLI |
| 63321503 | MAGNETI MARELLI |
| 99457074 | IVECO |
| 99461495 | IVECO |
| 99478834 | NEW HOLLAND |
| CA1849IR | HC-PARTS |
Mounted on :
CASE, IH, LISTER PETTER, NEW HOLLAND, TEREX
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
