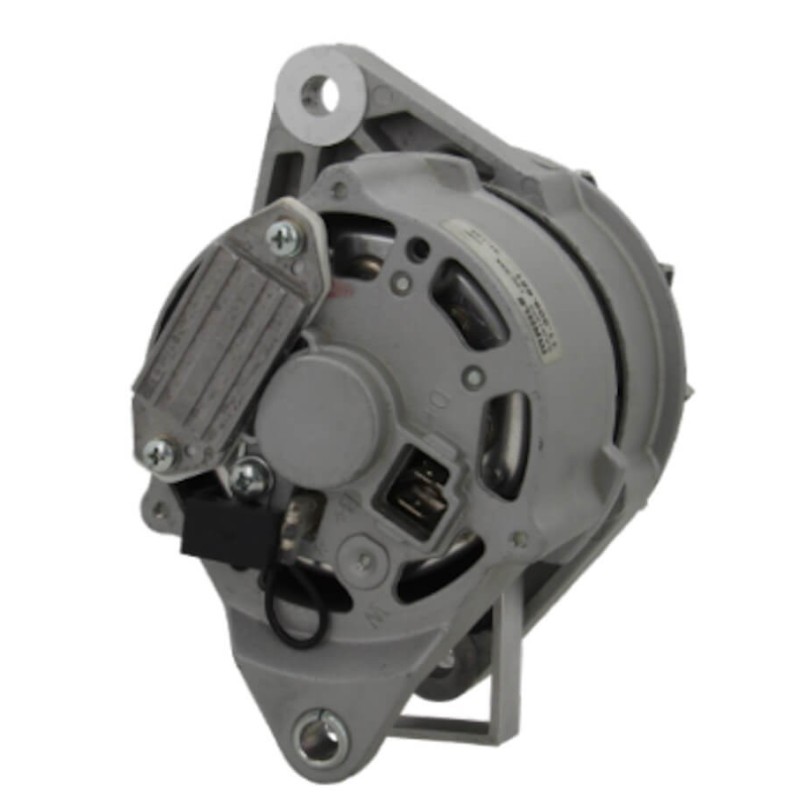

Alternator ISKRA AAg1130 / aag1104 / 11.201.037
Alternator NEW Brand ISKRA / MAHLE / LETRIKA
for FIAT, FIAT-ALLIS, LAMBORGHINI
Same, Zastava
= BOSCH 0120339528 / 0120339527 / 0120339516 / 0120339515
0986030120 / 0986030121 / 0986121177
= ISKRA AAG1130 / AAG1104 / AAG0402 / 11.201.783 / 11.201.037
More info
Information:
Voltage 14
Amp 33
D = Bracket hole 10.25
G = Belt. adj. bracket hole 10.00
B = Width/holder arm 25.00
E = Belt. adj. brackethole pos. 4
C = Mount. bracket dist 74.00
H = Pulley dia. 72.70
A = Pulley dist. 49.00
Grooves/pulley 1
J = Radius 87.00
J = Radius 80.00
Position B + 9.40
Rotation Cr

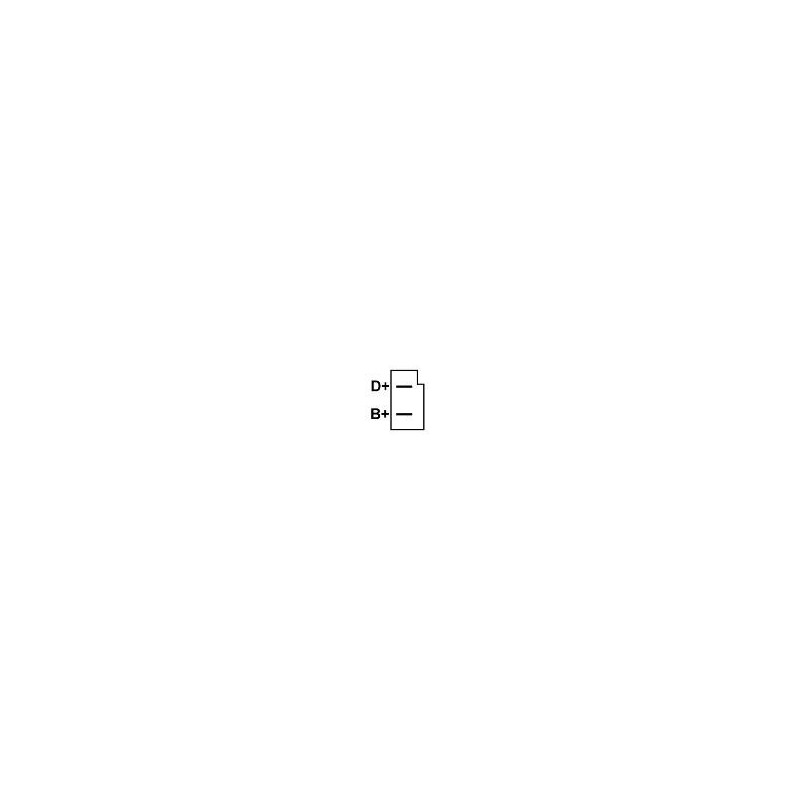

Plug no. 1 PL29
Fan Ef
Pulley Pulley
replacing
010156 | Da Silva |
|---|---|
0120300528 | Bosch |
0120300529 | Bosch |
0120300558 | Bosch |
0120300559 | Bosch |
0120300568 | Bosch |
0120300569 | Bosch |
0120339515 | Bosch |
0120339515SEL | +line |
0120339516 | Bosch |
0120339527 | Bosch |
0120339528 | Bosch |
016109 | Da Silva |
063300900 | Magneti Marelli |
063300901 | Magneti Marelli |
063300920 | Magneti Marelli |
063300921 | Magneti Marelli |
0986030120 | Bosch Exchange |
0986030121 | Bosch Exchange |
0986121177 | Bosch Exchange |
100899 | Cargo |
10441715 | Alanko |
110180 | Cargo |
110899 | Cargo |
111180 | Cargo |
11201017 | Mahle |
11201037 | Mahle |
11201037SEL | +line |
11201783 | Mahle |
11209651 | Mahle |
1155701BO | WAI old |
116133 | Cargo |
12029N | WAI |
12029R | WAI |
12030120 | EuroTec |
19025063 | Remy |
19025787 | Delco |
19093002 | Remy |
2021100 | Sando |
2091 | CEVAM |
210220 | Messmer |
218103332 | DRI |
220420 | PIC |
2338 | CEVAM |
280537 | Elstock |
294390900 | Same |
3045 | DAS |
30680274 | Magneti Marelli |
3077RI | DAS |
3121SP | Spidan |
4224325 | Fiat Group |
4257063 | Fiat Group |
4257074 | Fiat Group |
4257771 | Fiat Group |
4274815 | Fiat Group |
4275283 | Fiat Group |
4275285 | Fiat Group |
4275286 | Fiat Group |
4325179 | Fiat Group |
432991 | Valeo |
436109 | Valeo |
4373601 | Agria |
440224 | Logistik |
441715 | Alanko |
4474729 | Fiat Group |
4474752 | Fiat Group |
4474815 | Fiat Group |
4474816 | Fiat Group |
46231680 | Fiat Group |
46621735 | Fiat Group |
4753104 | Fiat Group |
4998353 | Allis-chalmers |
5011827 | Fiat Group |
505002033 | PSH |
5101707 | Fiat Group |
51217620 | Fiat Group |
55696 | EAI |
55697 | EAI |
5974259 | Fiat Group |
6000102364 | Renault |
6005701124 | Renault |
6005706645 | Claas |
612030 | NAPA |
63300506 | Magneti Marelli |
63300521 | Magneti Marelli |
63300521010 | Magneti Marelli |
63300802 | Magneti Marelli |
63300802010 | Magneti Marelli |
63300900 | Magneti Marelli |
63300900010 | Magneti Marelli |
63300901 | Magneti Marelli |
63300901010 | Magneti Marelli |
63300920 | Magneti Marelli |
63300920010 | Magneti Marelli |
63300921 | Magneti Marelli |
63300921010 | Magneti Marelli |
63300931 | Magneti Marelli |
63309000 | Magneti Marelli |
63321032 | Magneti Marelli |
63362003 | Magneti Marelli |
63362004 | Magneti Marelli |
63362006 | Magneti Marelli |
63730016 | Magneti Marelli |
63730077 | Magneti Marelli |
72735122 | Mahle |
72735436 | Mahle |
75558 | EAI |
77250410 | Fiat Group |
82847572 | Case |
89212983 | PowerMax |
8EL012427661 | Hella |
8EL725944001 | Hella |
90156283 | Wilson |
9030120 | Friesen |
9030120F | Friesen |
9120143035 | Bosch |
930120 | Remy |
943300920 | Magneti Marelli |
9972269 | Ford |
9AR5006G | Valeo |
A0012 | AS-PL |
A132634 | Short code |
A145987 | Short code |
A158780 | Short code |
AA8029 | Auto Charge |
AAG0402 | Mahle |
AAG0403 | Mahle |
AAG1104 | Mahle |
AAG1130 | Mahle |
AAG1374 | Mahle |
ABE1035 | Everkraft |
ABE1035D | Everkraft |
ABE1035E | Everkraft |
AEA1199 | Auto Electro |
AG0146 | Ghibaudi |
AG1037E | ADI |
AGN1037 | ADI |
AGN1037E | ADI |
AGN1783E | ADI |
AL00403 | TMI |
AL00725 | TMI |
ALT12006 | Wood Auto |
ALT12113 | Wood Auto |
ALT1268sa | Electrolog |
ALTH017 | Unipoint |
C000900010010 | Agco |
CA45 | HC-Parts |
CA45IR | HC-Parts |
CA77IR | HC-Parts |
CAL21100 | Casco |
CAL21200 | Casco |
DAN609 | Denso |
DENDAN609 | Wood Auto |
DMS8392 | DriveTec |
DRA0120 | Remy |
DS010156 | Da Silva |
F042A0H017 | Bosch |
HCA77IR | HC-Parts |
IA0017 | Mahle |
IA0037 | Mahle |
IA0037W | Mahle |
IA0783 | Mahle |
IR7444 | Protech |
KTR1010004066 | KTR |
L30120 | ATL |
L32170 | ATL |
LEA0972 | Lucas |
LETIA0037 | Wood Auto |
LRA00151 | Lucas |
LRA00199 | Lucas |
LRA00913 | Lucas |
LRA151 | Lucas |
LRA199 | Lucas |
LRA913 | Lucas |
MAHMG123 | Wood Auto |
MG123 | Mahle |
MG437 | Mahle |
NA284 | Valeo |
RNL11201037 | RNL |
RNL11201037T | RNL |
SA204 | Sovereign |
SP3121 | Spidan |
VA198 | Valeo |
VLN90077 | ADI |
W23018 | Van Heck |
W23023 | Van Heck |
WOOALT12006 | Wood Auto |
WOOALT12113 | Wood Auto |
