w111180

Alternator for FIAT, FIAT-ALLIS, LAMBORGHINI, Same, Zastava

 BOSCH 0120339528 / 0120339527 / 0120339516 / 0120339515

0986030120 / 0986030121 / 0986121177

 ISKRA AAG0402 / AAG1104 / IA0017 / 11.201.017 / 11.201.037

MAGNETI MARELLI 943356274 / 63300931 / 63300921

NO CORE EXCHANGE NEEDED

Read more
€89.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 14

Amp 33

D = Bracket hole 10.25

G = Belt. adj. bracket hole 10.00

B = Width/holder arm 25.00

E = Belt. adj. brackethole pos. 4

C = Mount. bracket dist 74.00

H = Pulley dia. 72.70

A = Pulley dist. 49.00

Grooves/pulley 1

J = Radius 87.00

J = Radius 80.00

Position B + 9.40

Rotation Cr

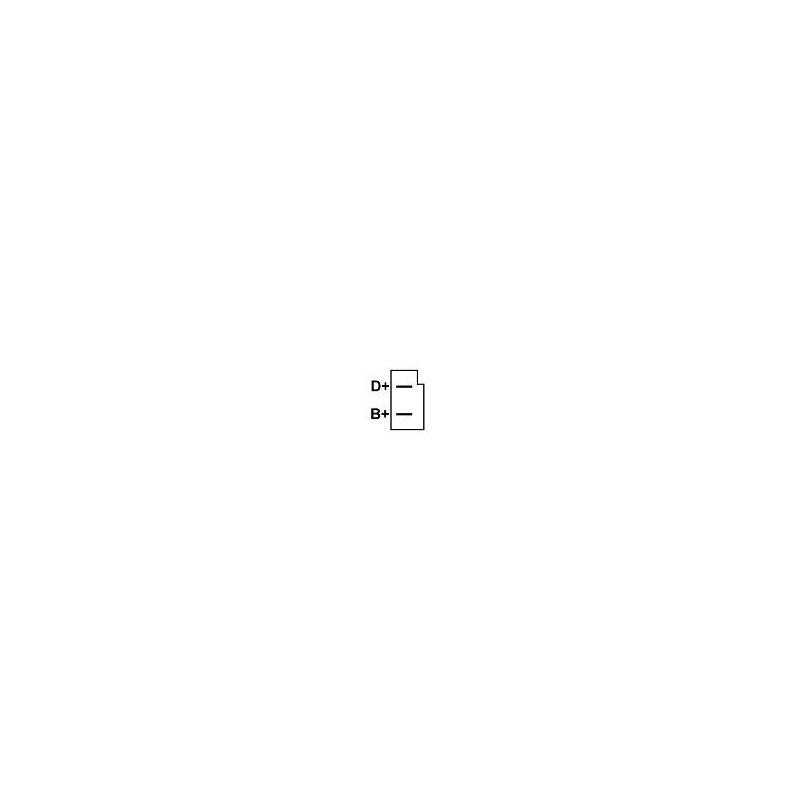

Plug no. 1 PL29

Fan Ef

Pulley Pulley

generic brand

replacing :

0120300528 BOSCH
0120300529 BOSCH
0120300558 BOSCH
0120300559 BOSCH
0120300568 BOSCH
0120300569 BOSCH
0120339515 BOSCH
0120339516 BOSCH
0120339527 BOSCH
0120339528 BOSCH
0986030120 BOSCH l
0986030121 BOSCH
0986121177 BOSCH
110899 Cargo
11201017 MAHLE
11201037 MAHLE
1155701BO WAI
12029 EAI
12029N WAI
12029R WAI
12030120 EuroTec
12033880 EuroTec
220420 PIC
280537 Elstock
3121SP Spidan
4224325 FIAT
4257063 FIAT
4257074 FIAT
4257771 FIAT
4274815 FIAT
4275283 FIAT
4275285 FIAT
4275286 FIAT
4325179 FIAT
432991 VALEO
436109 VALEO
4474729 FIAT
4474752 FIAT
4474815 FIAT
4474816 FIAT
46231680 FIAT
46621735 FIAT
4998353 Allis-chalmers
505002033 PSH
55696 EAI
55697 EAI
5974259 FIAT
63300506 MAGNETI MARELLI
63300521 MAGNETI MARELLI
63300900 MAGNETI MARELLI
63300901 MAGNETI MARELLI
63300920 MAGNETI MARELLI
63300921 MAGNETI MARELLI
63321032 MAGNETI MARELLI
63362003 MAGNETI MARELLI
63362004 MAGNETI MARELLI
63362006 MAGNETI MARELLI
75558 EAI
77250410 FIAT
90156283 WILSON
9030120F Friesen
9120143035 BOSCH
943300920 MAGNETI MARELLI
AAG0402 MAHLE
AAG0403 MAHLE
AAG1104 MAHLE
ALT1268sa Electrolog
ALTH017 UNIPOINT
CA45IR HC
CA77IR HC
DAN609 DENSO
DRA0120 DELCO REMY
F042A0H017 BOSCH
HCA77IR HC
IA0017 MAHLE
IA0037 MAHLE
KTR1010004066 KTR
L30120 ATL
L32170 ATL
LRA00913 LUCAS
LRA199 LUCAS
MG123 MAHLE
NA284 VALEO
W23018 van Heck
W23023 van Heck

9972269               FIAT

fits:

AGRIFULL 80 .70C FIAT-8045.02.211 3.5 09.80-03.83
AGRIFULL 80 .70F FIAT-8045.02.278 3.5 09.80-12.84
AGRITALIA (CARRARO) 3100-4 PomareiroVinhateiro F3L912 2.8 -
AGRITALIA (CARRARO) 3300-4 PomareiroVinhateiro F3L913 3.0 -
AGRITALIA (CARRARO) 3400-4 PomareiroVinhateiro F4L912 3.7 -
AGRITALIA (CARRARO) 3500-4 PomareiroVinhateiro F4L913 4.0 -
AGRITALIA (CARRARO) 5.1000-4 Agrix F3L912 2.8 -
AGRITALIA (CARRARO) 5.1000-4 FruttetoVignetoBasso F3L912 2.8 -
AGRITALIA (CARRARO) 6.1000-4 Agrix F3L913 3.0 -
AGRITALIA (CARRARO) 6.1000-4 FruttetoVignetoBasso F3L913 3.0 -
AGRITALIA (CARRARO) 7.1000-4 Agrix F4L912 3.7 -
AGRITALIA (CARRARO) 7.1000-4 FruttetoVignetoBasso F4L912 3.7 -
AGRITALIA (CARRARO) 8.1000-4 Agrix F4L913 4.0 -
AGRITALIA (CARRARO) 8.1000-4 FruttetoVignetoBasso F4L913 4.0 -
FIAT 1000 ,DT 8065.02.200 5.2 04.75-12.76
FIAT 127 1050 127A.000 1.1 04.77-05.83
FIAT 127 Sport 127A1 1.1 06.78-11.81
FIAT 128 1100 128A.000 1.1 06.69-12.84
FIAT 128 1300 128A1.000 1.3 03.69-12.84
FIAT 128 3P 1100 Sport 128A.000 1.1 06.75-12.79
FIAT 128 3P 1300 Sport 128A1.000 1.3 06.75-12.79
FIAT 420 8035.01 2.3 04.82-12.83
FIAT 446 8035.02.276 2.6 02.82-12.83
FIAT 446 DT 8035.02.276 2.6 02.82-12.83
FIAT 465 C 8035.02.276 2.6 06.82-12.84
FIAT 474 8035.02.212 2.6 04.83-12.84
FIAT 480 DT 8035.02.202 2.6 01.76-06.78
FIAT 480 DT,S 8035.02.302 2.6 06.78-03.82
FIAT 500 ,DT 8035.02.201 2.6 06.73-12.76
FIAT 500 DT,S 8035.02.202 2.6 06.78-03.82
FIAT 505 S 8035.04.272 2.6 04.82-07.82
FIAT 540 ,DT 8035.02.302 2.6 03.72-06.78
FIAT 540 DT,S 8035.02.302 2.6 06.78-03.82
FIAT 566 DT 8035.04.376 2.8 02.82-12.83
FIAT 570 DT 8035.04.270 2.8 12.77-02.82
FIAT 580 DT 8035.04.270 2.8 12.77-02.84
FIAT 605 C,CS 8045.02.211 3.5 01.77-07.82
FIAT 640 ,DT 8045.02.200 3.5 10.72-12.76
FIAT 640 DT 8045.02.200 3.5 10.72-03.82
FIAT 666 8045.02.276 3.5 02.82-12.83
FIAT 666 DT 8045.02.376 3.5 02.82-12.83
FIAT 670 8045.02.278 3.5 09.80-04.82
FIAT 670 DT 8045.02.270 3.5 07.77-04.82
FIAT 680 DT 8045.02.270 3.5 07.77-02.84
FIAT 765 C 8045.04.276 3.7 06.82-12.83
FIAT 766 8045.04.276 3.7 02.82-12.83
FIAT 766 DT 8045.04.376 3.7 02.82-12.83
FIAT 780 ,DT 8045.04.270 3.7 01.75-02.84
FIAT 855 ,C 8045.04.275 3.7 02.81-12.84
FIAT 880 ,DT CO3-75 02.75-12.80
FIAT 955 C 8055.04.205 4.6 02.81-12.83
HUERLIMANN H 355 /F 1053P 3.1 01.82-06.86
HUERLIMANN H 360 H-1103/5 3.4 10.79-06.85
HUERLIMANN H 470 H-1104/6 4.6 09.79-06.85
HUERLIMANN H 480 H1104/7 4.6 07.83-12.85
HUERLIMANN H 490 H-1106/8T 4.6 04.79-06.86
HUERLIMANN H 5110 H1105,H1105/10T 5.7 07.83-12.84
HUERLIMANN H 6160 H-1106/15 6.8 03.79-03.84
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 1000 Serie 06.81-12.84
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 1056 ,DT 105HP 06.81-12.84
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 1156 105.6P 6.2 06.81-12.84
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 1256 DT 1056PP 6.2 06.78-07.81
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 1356 DT H1106-12; 135HP 6.8 12.80-12.84
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 1556 H1106-15 6.8 06.81-12.84
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 235 DT-S 2RM 982L 1.8 06.73-12.76
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 483 N-L 983L 02.85-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 583 N-L-S 983P 04.83-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 653 DT 105.3P 3.1 01.79-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 683 L,N 105.3P 3.1 04.83-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 684 DT 984P; 67HP 3.6 01.82-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 754 DT Same-984P 3.6 11.76-01.82
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) 784 DT 1054P 4.2 01.80-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) C 362 982L 1.8 02.85-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) C 553 02.85-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) C 554 Compact, 554 Ergomatic 100.3P 2.8 06.87-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) C 653 02.85-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 1056 DT 986-3 02.77-01.81
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 483 983L 2.7 02.85-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 513 DT, 513 V 983L 2.7 03.83-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 583 100-3P 03.83-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 613 F 105.3P 3.1 01.82-02.88
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 654 R, 654 DT 03.82-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 683 DT 2RM 105.3P 03.82-
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 684 F 984P 3.6 03.82-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 714 DT 2RM 100.4P 3.8 03.84-02.88
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 724 F 100.4P 02.82-04.86
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 754 105.4P 4.2 01.82-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 765 C 01.82-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 854 DT 2RM 105.4P 4.2 11.76-12.85
LAMBORGHINI(SAME DEUTZ-FAHR GROUP) R 955 DT 2RM 105.5P 5.2 06.79-12.85
MUZZI MD 100 SAME-1056P 06.79-
MUZZI MD 33 SAME-1053P 06.79-
MUZZI MD 45 SAME-1054 P 06.79-
MUZZI MD 55 SAME-1055 P 06.79-
MUZZI MD 65 SAME-1056P 06.79-
PALMIERI 1500 GN 25 Same-983P 05.78-01.82
PALMIERI 1500 GN 30 Same-1053P 05.78-
PALMIERI 1500 GN 50 Same-1055P 05.78-
PALMIERI 1500 GN 90 SAME-1056PT 05.78-
PALMIERI 1800 GN 100T Same-1056PT 01.80-
PALMIERI 1800 GN 30 SAME-983P 05.78-01.82

                     NO CORE EXCHANGE NEEDED

                                     TWO YEARS WARRANTY
