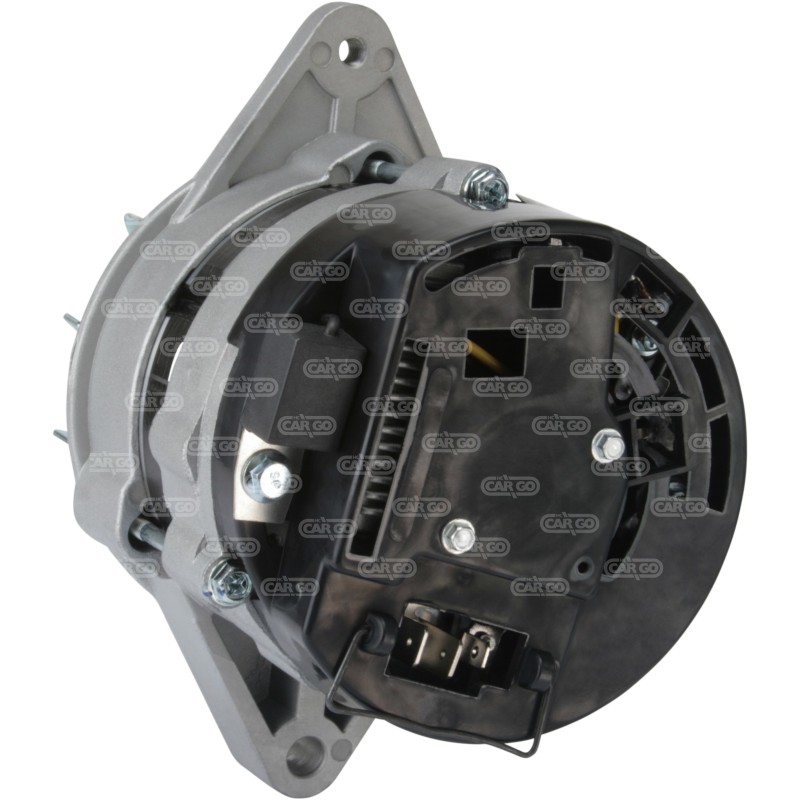

Alternator replacing LUCAS 24204 / 24124 / 24033A / 24033

Information:

Voltage 14

Amp 55

D = Bracket hole 10.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 27.00

E = Belt. adj. brackethole pos. 60

J = Radius 85.00

J = Radius 83.00

Position B + 6.30

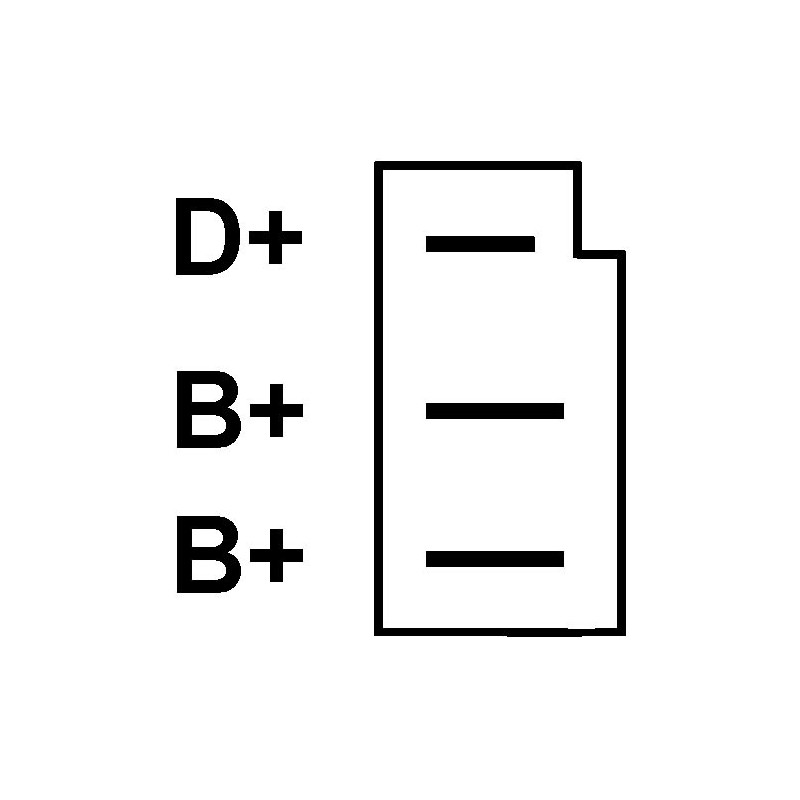

Plug no. 1 PL22

Fan Without

Pulley Without

R = Total length mm 165.00

generic brand

= HITACHI LR150-191 / LR150-190

= LUCAS 24033 / 24033a / 24124 / 24124a / 24124b

24204 / 24204a

= MOTOROLA  9AR5083G / 9AR5010F / 9AR2888 / 9AR2887 / 9AR2725F

510-501 / 510-492 / 510-456 / 510-368 / 510-320 / 510-316

510-315 / 510-301 / 510-300 / 510-299 / 510-298

510-187 / 432984qo

= VALEO 9AR2725

= PERKINS 2871D032 / 2871D033

= MASSEY FERGUSON 1699872m1 / 1699872r1

                   NO CORE EXCHANGE NEEDED

                                       TWO YEARS WARRANTY
