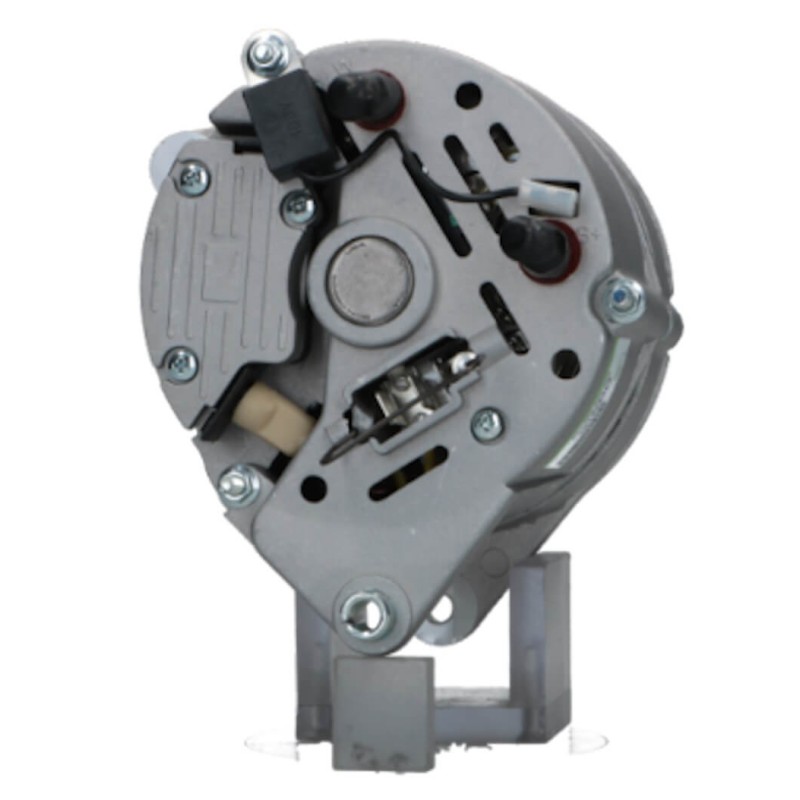

Alternator replacing LUCAS LEA0038 / 54022663 / 54022646

Information:

Voltage 14

Amp 65

Plug type W

D = Bracket hole 8.20

G = Belt. adj. bracket hole M8

B = Width/holder arm 11.50

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 81.70

H = Pulley dia. 66.00

A = Pulley dist. 36.00

Grooves/pulley 1

J = Radius 86.00

J = Radius 86.00

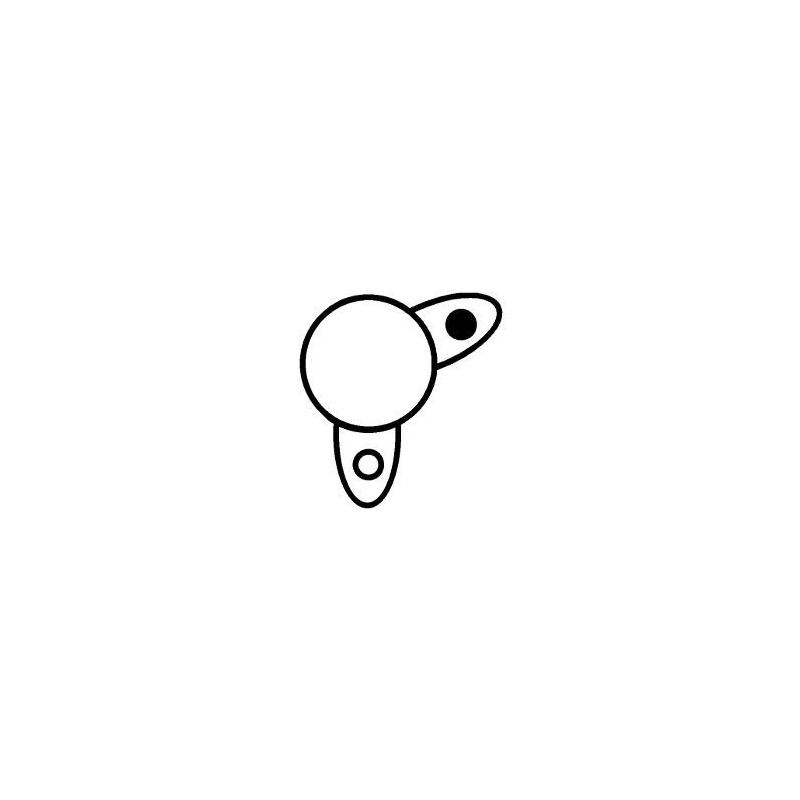

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

R = Total length mm 168.00

= LUCAS 54022591 / 54022552 / 54022510 / 54022393 / 54022268 / 54022267 / 54022256

24161 / 24161a / 24161d / 24228 / 24228a / 24240 / 24240a / 24241 / 24241a / 24242

24242a / 24242D / 24297 / 24297a / 24380 / 24380A / 54022058 / 54022140 / 54022179

54022189 / 54022220 / 54022646 / 54022663

= MAGNETI MARELLI 63324242

= MAGNETON 9515040

= PRESTOLITE  PBNA0382 / 66021412

= MASSEY FERGUSON 1475923M91

= PERKINS 2871a149

= ROVER GNU2393 / yle10025 / yle101560 / YLE101700

                            NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
