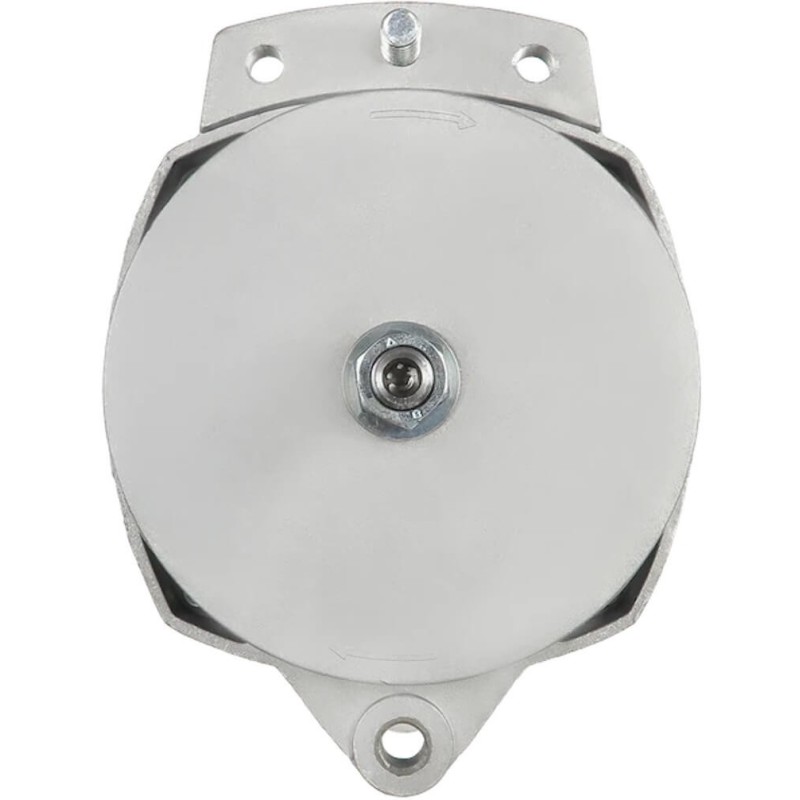

Alternator replacing MOTOROLA 8SC2282VG / 110-565 for NEW HOLLAND

Information:

Voltage 14

Amp 185

Insulated return Masse isolatede

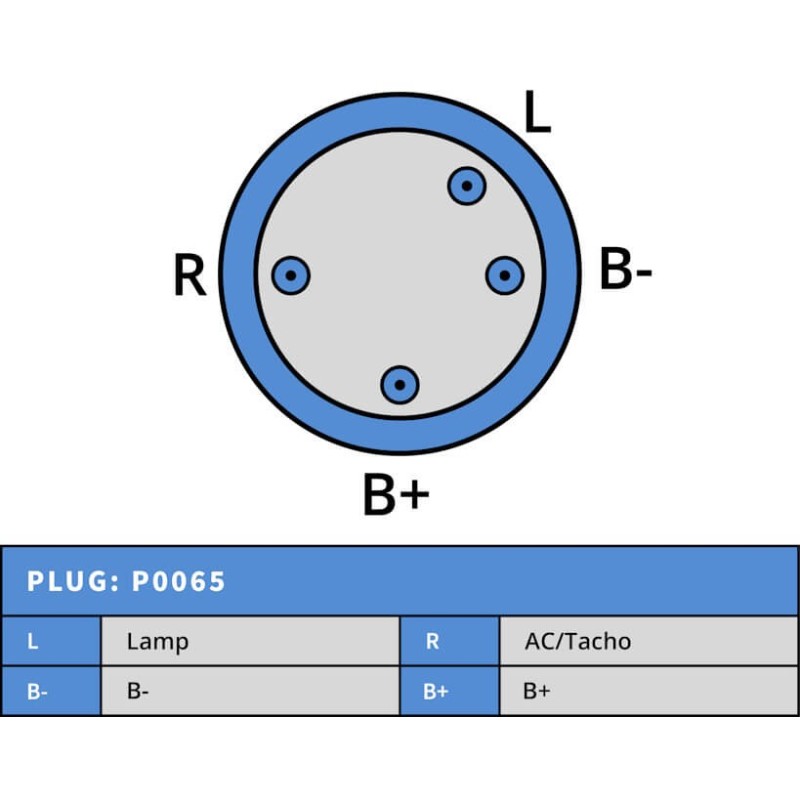

Plug type W

D = Bracket hole 13.00

G = Belt. adj. bracket hole M12

B = Width/holder arm 14.00

E = Belt. adj. brackethole pos. 56

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 103.00

J = Radius 107.50

J = Radius 103.10

J = Radius 106.50

J = Radius 106.50

Position B + M8

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Without

Belt. adj. bracket hole M12

R = Total length mm 263.00

E = Belt. adj. brackethole pos. 4

G = Belt. adj. bracket hole M12

Used onon  :

CASECOMBINES 8120 IVECO 10.3L 2008
CASECOMBINES 9120 IVECO 12.9L 2008
NEW HOLLANDCOMBINES CR9040 9.0L 6CYL 322HP DIESEL 2006
NEW HOLLANDCOMBINES CR9060 9.0L 6CYL 360HP DIESEL 2006
NEW HOLLANDCOMBINES CR9070 10.3L 6CYL 420HP DIESEL 2006

                  NO CORE EXCHANGE NEEDED

                                  TWO YEARS WARRANTY
