Alternator replacing BOSCH 0120489999 / 0120489975 / 0120489789

Information:

Voltage 14

Amp 65

Plug type W

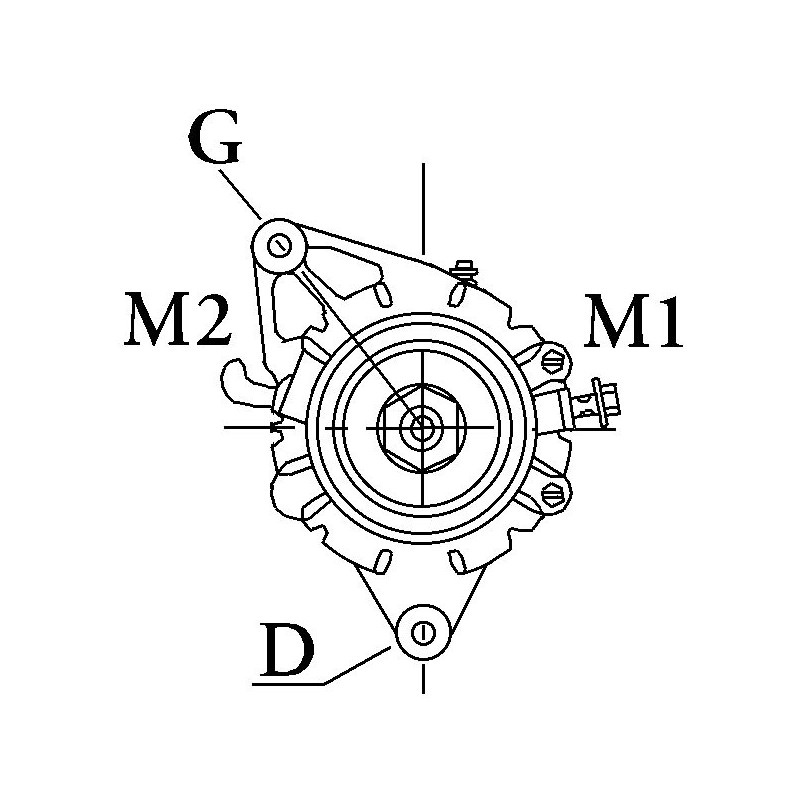

D = Bracket hole 8.40

G = Belt. adj. bracket hole 8.15

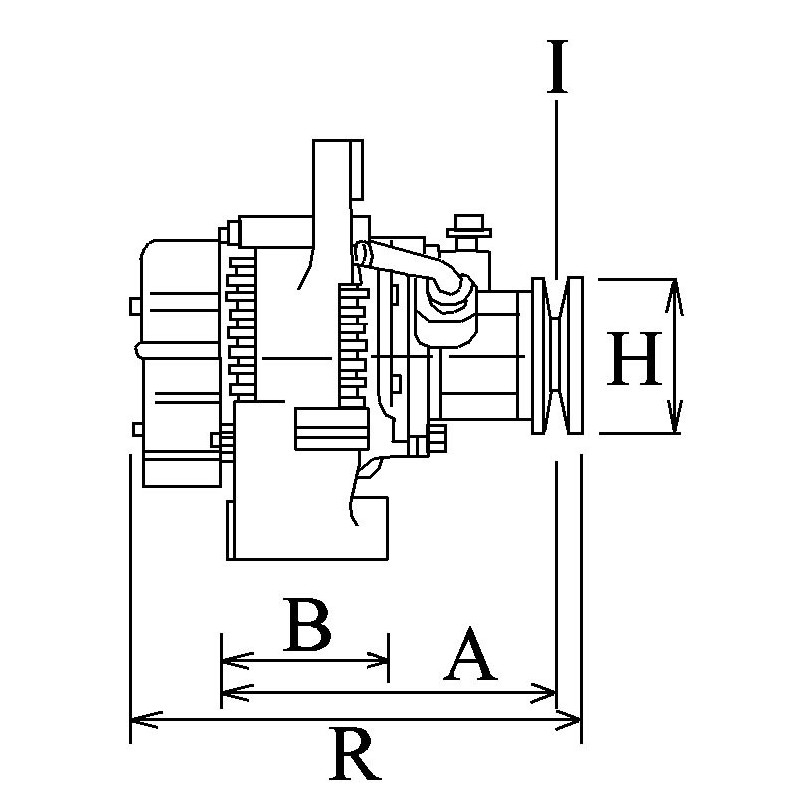

B = Width/holder arm 56.25

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 72.00

A = Pulley dist. 82.85

Grooves/pulley 1

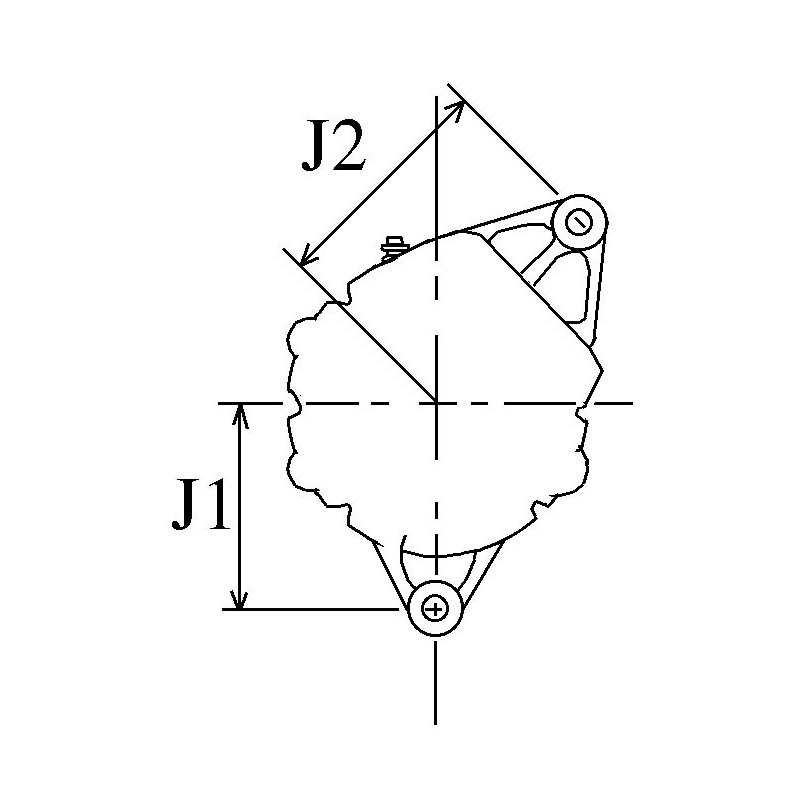

J = Radius 84.80

J = Radius 86.85

Position B + M6

Rotation Cr

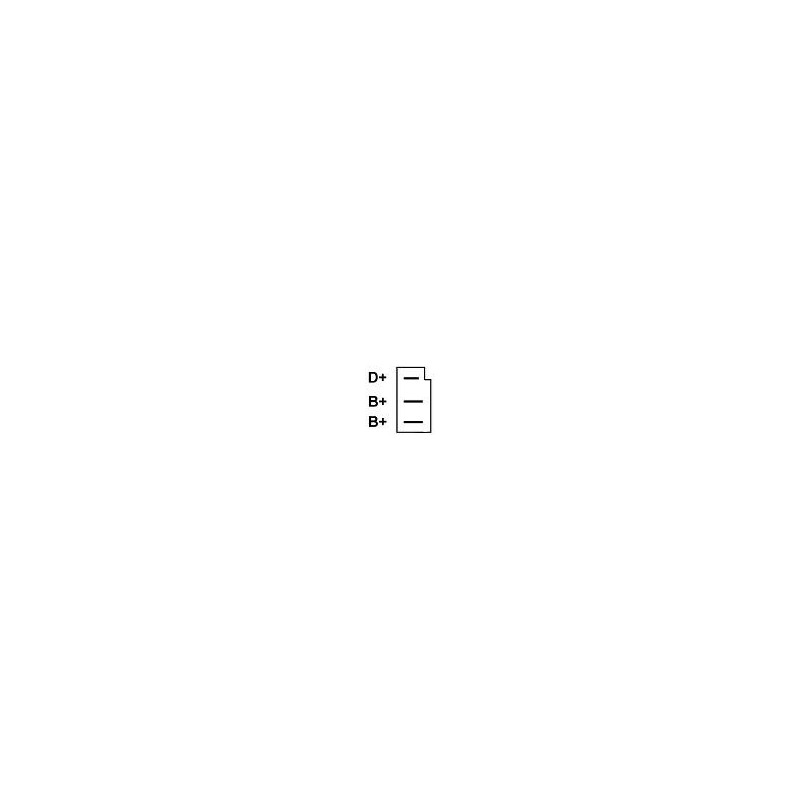

Plug no. 1 PL22

Fan Ef

Pulley Pulley

R = Total length mm 167.00

= BOSCH 0120489999 / 0120489975 / 0120489789

0120489569 / 0120489551 / 0120489058 / 0120400670

0120300584

= LUCAS NAB307 / 66021152 / 60021068 / 60021067

60021063 / 60021026 / 54021649

= MOTOROLA 9AR2529F / 9AR2529 / 510-146 / 510-123 / 2541263

= MOTOROLA USA 9FB2LD2A05

= PRESTOLITE 66021152

                    NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
