Alternator NEW replacing MAGNETON 9516061 / 9516060 / 9516051

Information:

Voltage 14

Amp 55

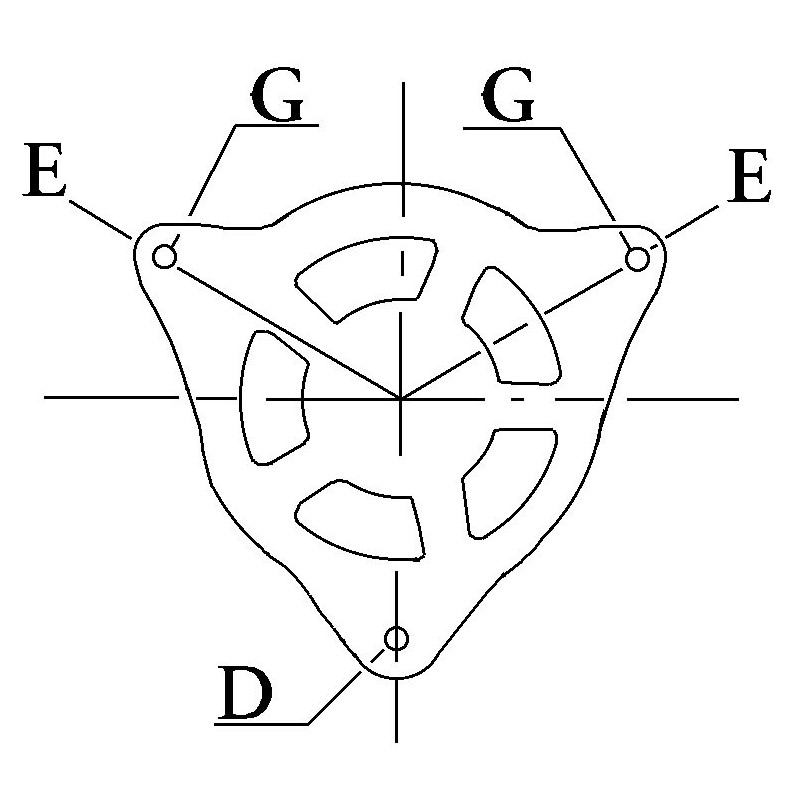

D = Bracket hole 10.00

G = Belt. adj. bracket hole 8.00

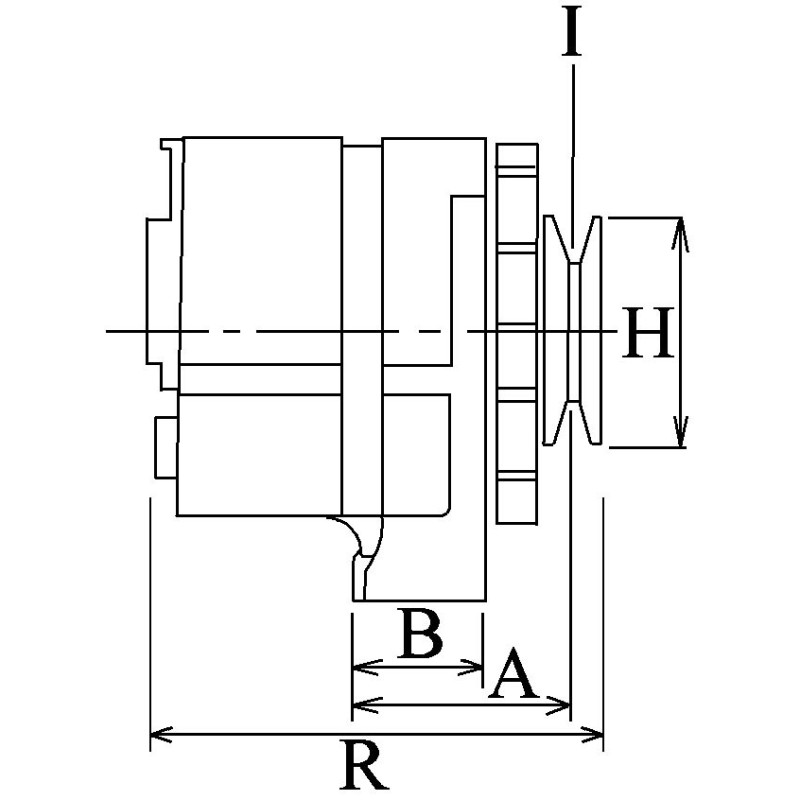

B = Width/holder arm 50.00

E = Belt. adj. brackethole pos. 10

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 73.00

A = Pulley dist. 79.00

Grooves/pulley 1

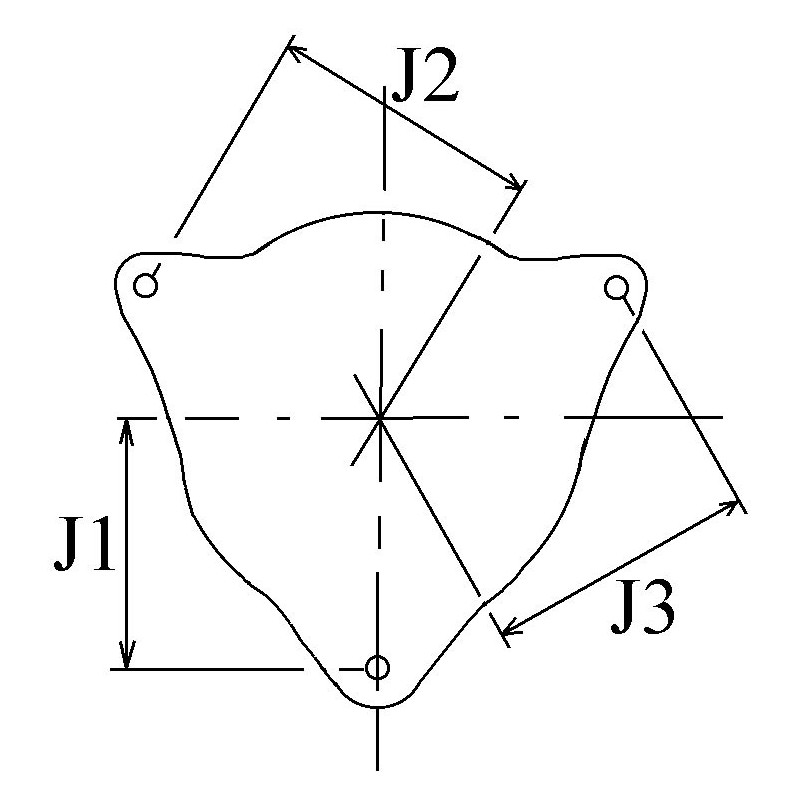

J = Radius 85.00

J = Radius 79.50

J = Radius 79.50

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Ef

Pulley Pulley

G = Belt. adj. bracket hole 8.00

R = Total length mm 165.00

Source MAGNETON

                      NO CORE EXCHANGE NEEDED

                                         TWO YEARS WARRANTY
