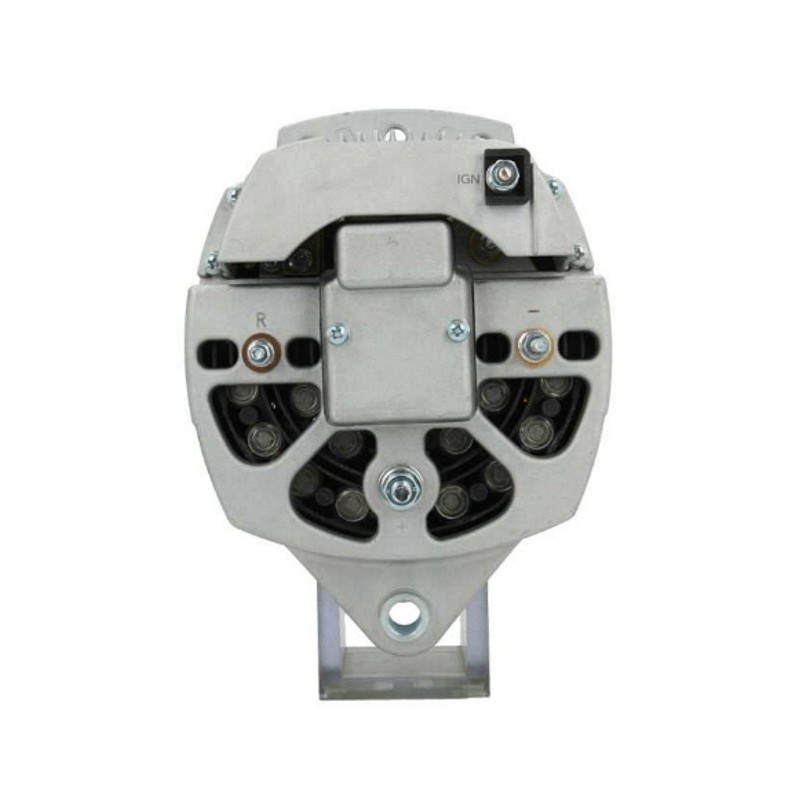

Alternator replacing 8SC3110VC111 / 8SC3110VC117 / 110-568
replacing Prestolite
| 8SC3110VC37 | |
| 8SC3110VC39 | |
| 8SC3110VC40 | |
| 8SC3110VC42 | |
| 8SC3110VC43 | |
| 8SC3110VC64 | |
| 8SC3110VC65 | |
| 8SC3110VC79 | |
| 8SC3110VC80 | |
| 8SC3110VC81S | |
| 8SC3110VC83 | |
| 8SC3110VC91 | |
| 8SC3110VC94 | |
| 8SC3110VC98 |
More info
Physical information | ||
|---|---|---|
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist. | 102.20 |
| D | Bracket hole | 13.00 |
| G | Belt. adj. bracket hole | 1/2" UNC |
| J | Radius | 108.00 |
| J | Radius 2 | 103.00 |
| K | B+ | 5/16" UNC |
| K | Position/B+ in min. | 30 |
| N | Rotation | CW |

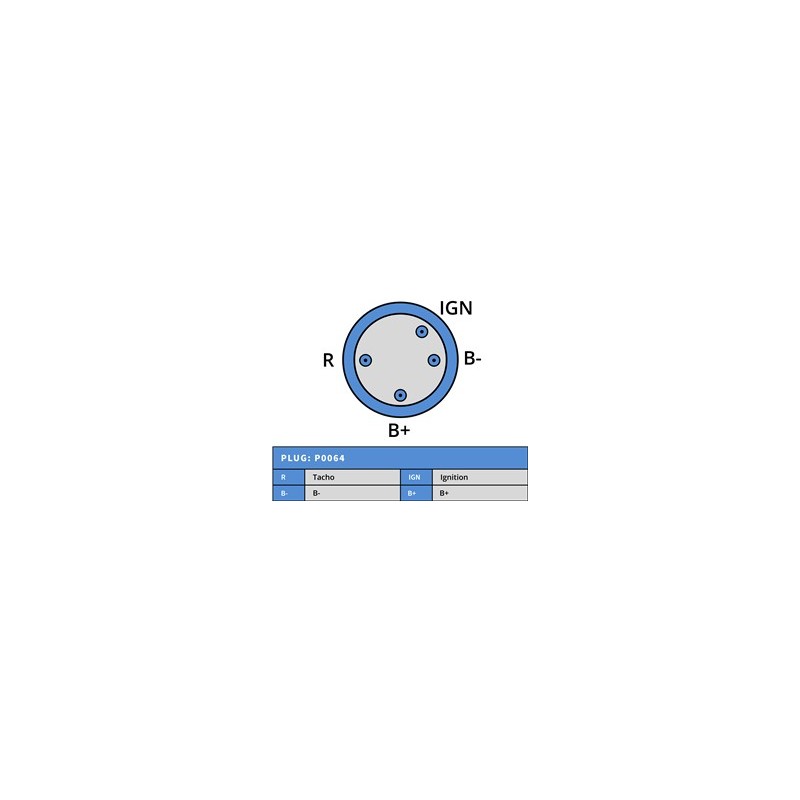

| Q | W plug type | 10-24 UNC |
| R | Total length mm | 266.50 |
Catalogue information | ||
|---|---|---|
| Pulley | w/o | |
| Regulator type | IR | |
| Prod. info | BN | |
| Remarks | For battery less system. | |
Electrical information | ||
|---|---|---|
| Voltage | 28 | |
| Amp | 150 | |
generic brand
replacing
| 0329568 | |
| 110306 | Prestolite |
| 110568 | Cargo |
| 114348 | Cargo |
| 19020521 | Remy |
| 190205521 | |
| 283608 | Elstock |
| 3040103 | Thermo King |
| 4125D55G02 | Thermo King |
| 446368 | Thermo King |
| 5D51321G01 | Thermo King |
| 646017150 | PSH |
| 67568 | NAPA |
| 8SC3018V | Motorola |
| 8SC3018VA | Motorola |
| 8SC3022V | Motorola |
| 8SC3074V | Prestolite |
| 8SC3110V | Prestolite |
| 8SC3110VC | Prestolite |
| 8SC3110VC09 | Prestolite |
| 8SC3110VC111 | Prestolite |
| 8SC3110VC117 | Prestolite |
| 8SC3110VC118 | Prestolite |
| 8SC3110VC120 | Prestolite |
| 8SC3110VC120E | Prestolite |
| 8SC3110VC17 | Prestolite |
| 8SC3110VC18 | Prestolite |
| 8SC3110VC23 | Prestolite |
| 8SC3110VC37 | Prestolite |
| 8SC3110VC39 | Prestolite |
| 8SC3110VC40 | Prestolite |
| 8SC3110VC42 | Prestolite |
| 8SC3110VC43 | Prestolite |
| 8SC3110VC64 | Prestolite |
| 8SC3110VC65 | Prestolite |
| 8SC3110VC79 | Prestolite |
| 8SC3110VC80 | Prestolite |
| 8SC3110VC81S | Prestolite |
| 8SC3110VC83 | Prestolite |
| 8SC3110VC91 | Prestolite |
| 8SC3110VC94 | Prestolite |
| 8SC3110VC98 | Prestolite |
| 8SC3110VCH114 | Prestolite |
| 8SC3110VCSZ | Prestolite |
| 8SC3127V | Prestolite |
| 8SC3150V | Prestolite |
| 8SC3150VC | Prestolite |
| 8SC3150VC30 | Prestolite |
| 8SC3150VC95 | Prestolite |
| 8SC3151VC | Prestolite |
| 8SC3151VCA49 | Prestolite |
| 8SC3151VCA59 | Prestolite |
| 8SC3151VCA7 | Prestolite |
| 8SC3151VCA77 | Prestolite |
| 8SC3151VCB7 | Prestolite |
| 8SC3200V | Motorola (USA) |
| 8SC3207V | Prestolite |
| ALT0191 | Unipoint |
| ALT0191A | Unipoint |
| ALT0191C | Unipoint |
| ALT0191P | Unipoint |
| DRA0268 | Remy |
| DRZ0129 | Remy |
| F042A08016 | Bosch |
| LRA01793 | Lucas |
| RNL8SC3110V | RNL |
