Alternator NEW replacing LUCAS NAB903 / 66021483 / 66021198

Information:

Voltage 28

Amp 55

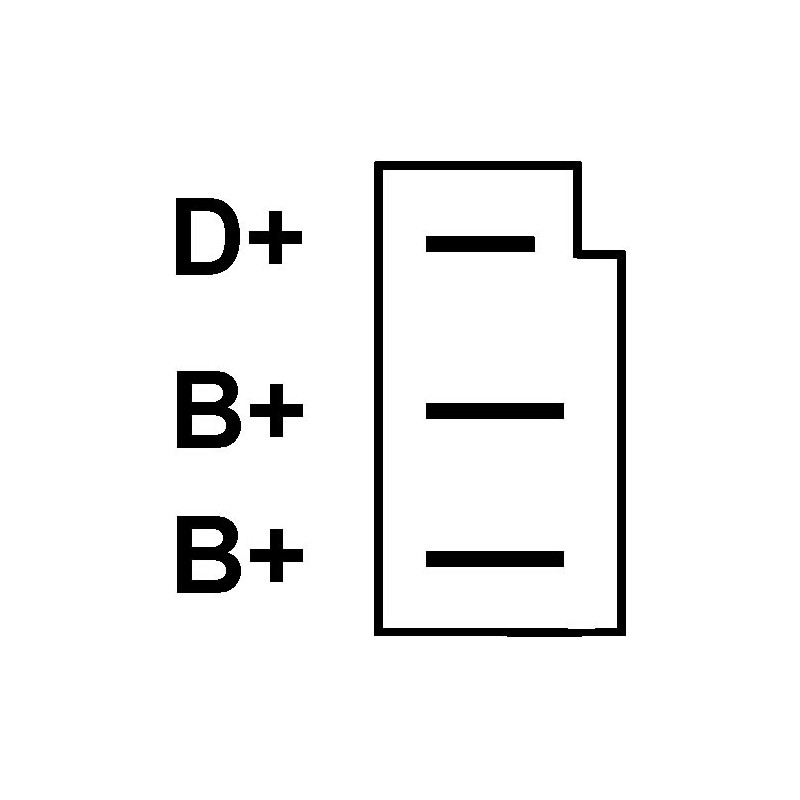

Plug type W

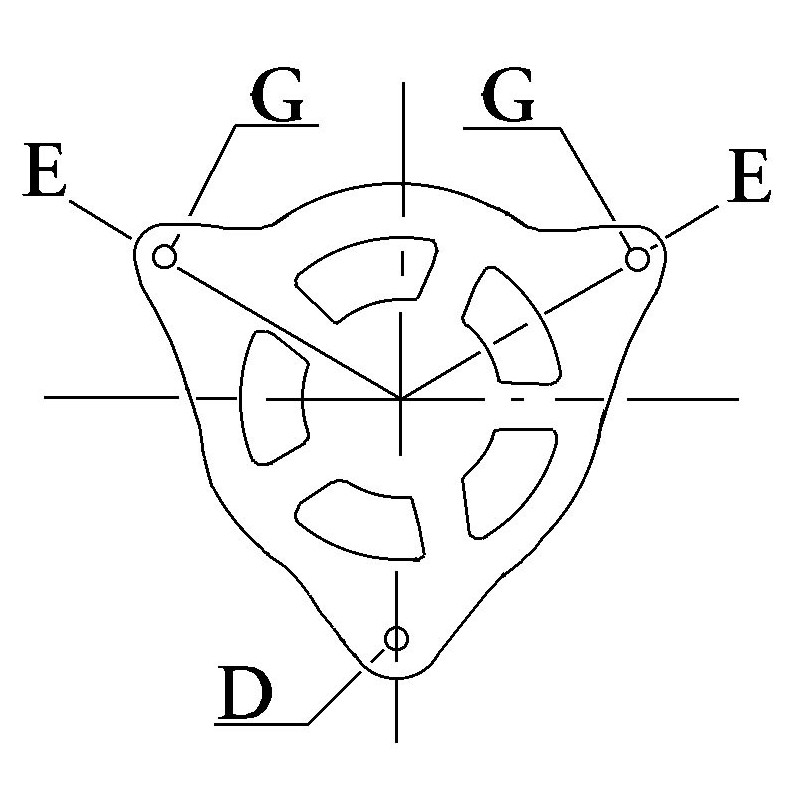

D = Bracket hole 10.15

G = Belt. adj. bracket hole 10.30

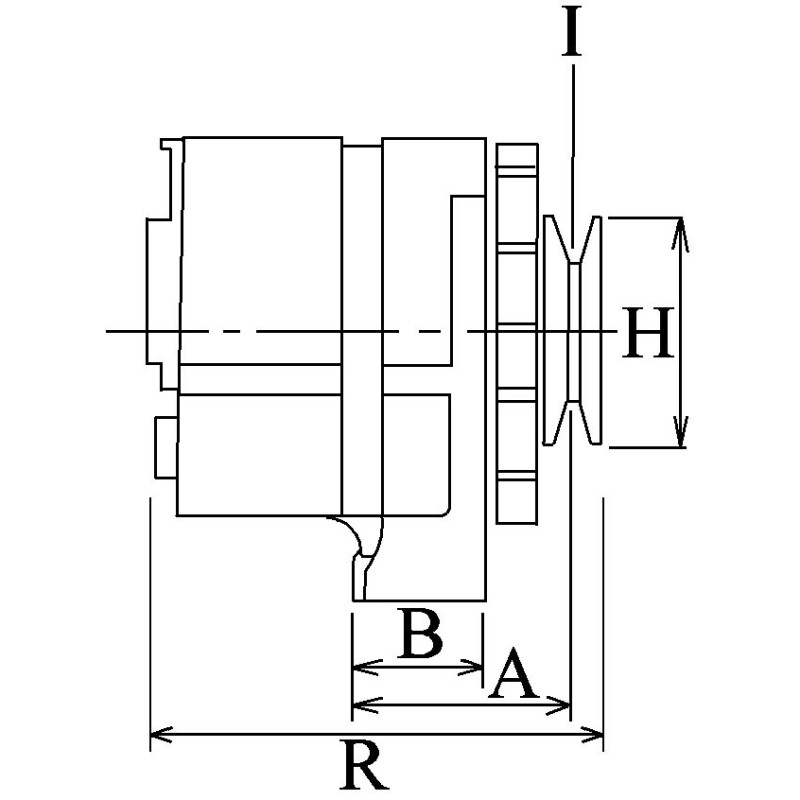

B = Width/holder arm 80.10

E = Belt. adj. brackethole pos. 50

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 74.00

A = Pulley dist. 115.20

Grooves/pulley 2

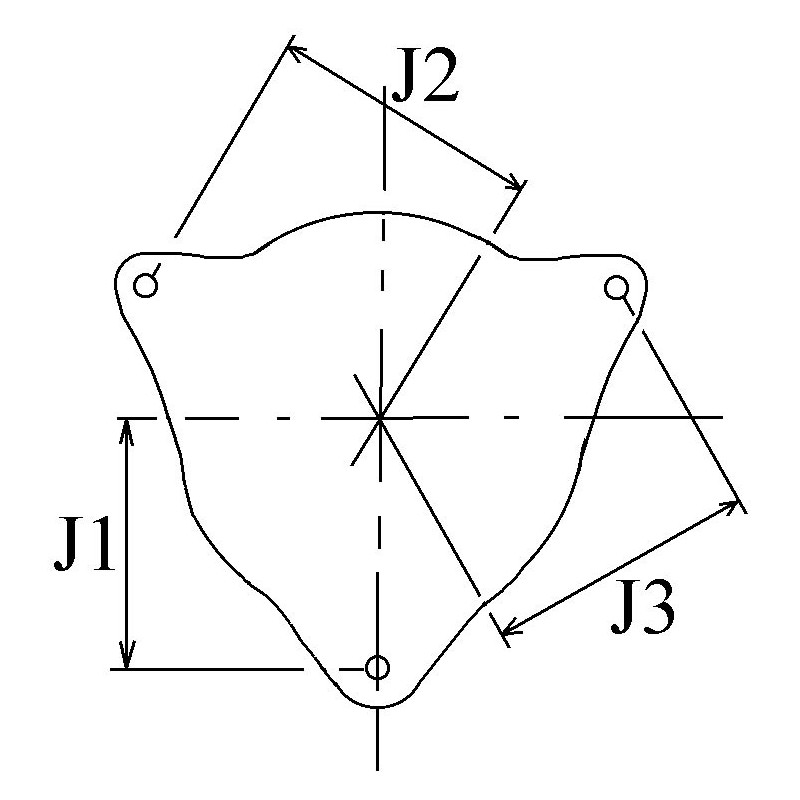

J = Radius 84.00

J = Radius 84.55

J = Radius 85.00

J = Radius 84.55

Position B + M6

Rotation Cr

Plug no. 1 PL22

Fan Ef

Pulley Pulley double

Remarks With couvercle from palier from Used onvers la left and côté supérieur du engine.

G = Belt. adj. bracket hole 10.30

R = Total length mm 183.00

Belt. adj. brackethole pos. 10

G = Belt. adj. bracket hole 10.30

Source PRESTOLITE

                                                    NO CORE EXCHANGE NEEDED

                                                                                      TWO YEARS WARRANTY
