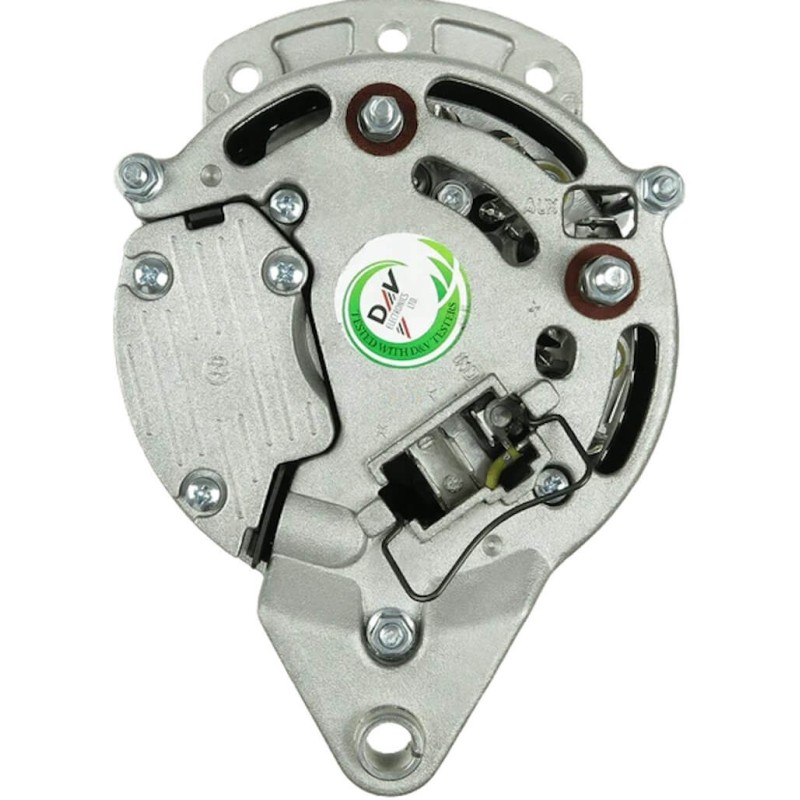

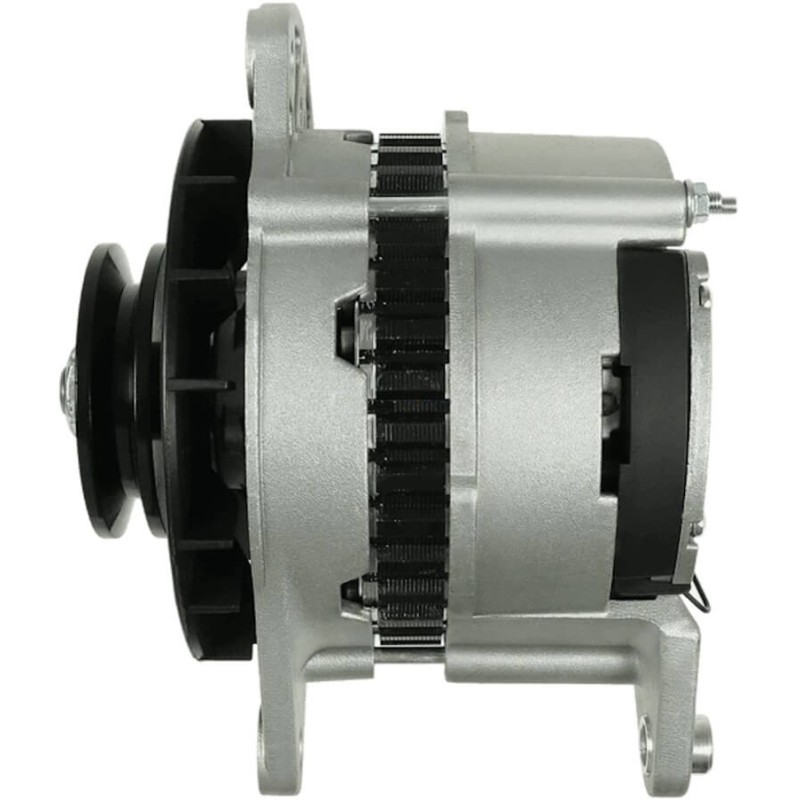

Alternator replacing LUCAS NAB900 / 66921126 / 66021070

Information:

Voltage 14

Amp 70

Plug type W

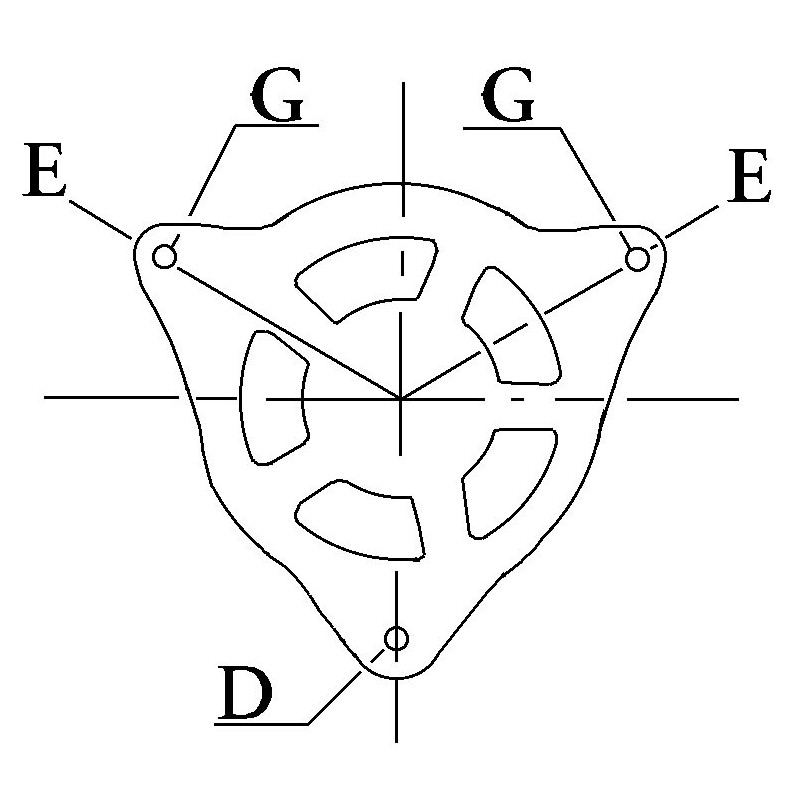

D =Bracket hole 10.00

G =Belt. adj. bracket hole 8.00

B =Width/holder arm 10.50

E =Belt. adj. brackethole pos. 55

E =Belt. adj. brackethole pos. 60

C =Mount. bracket dist 84.00

H =Pulley dia. 73.00

A =Pulley dist. 42.50

Grooves/pulley 1

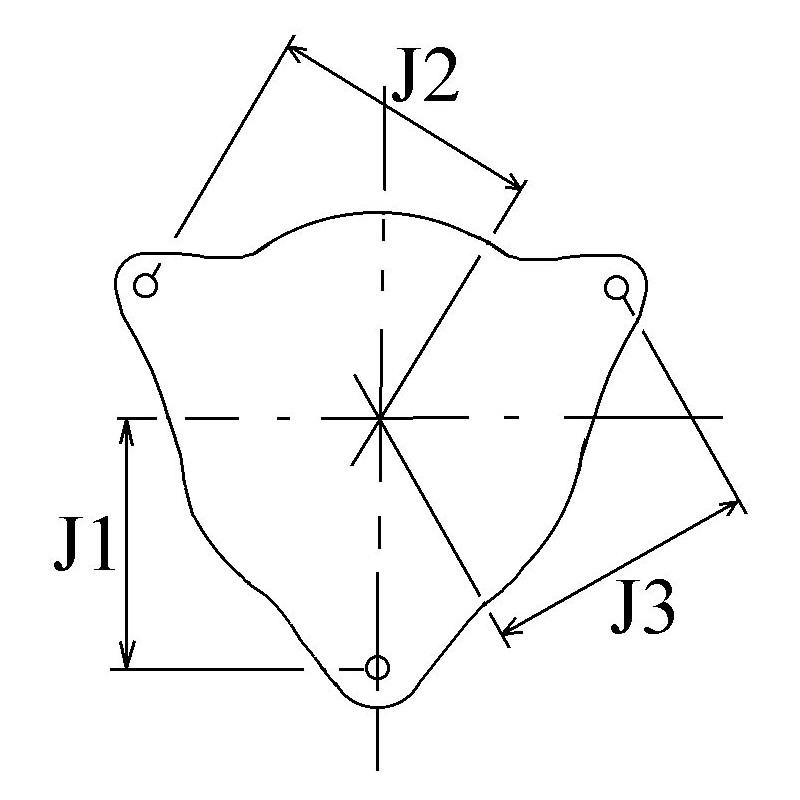

J1 =Radius 83.50

J2 =Radius 82.50

J3 =Radius 82.50

Position B + 9.40

Rotation Cr

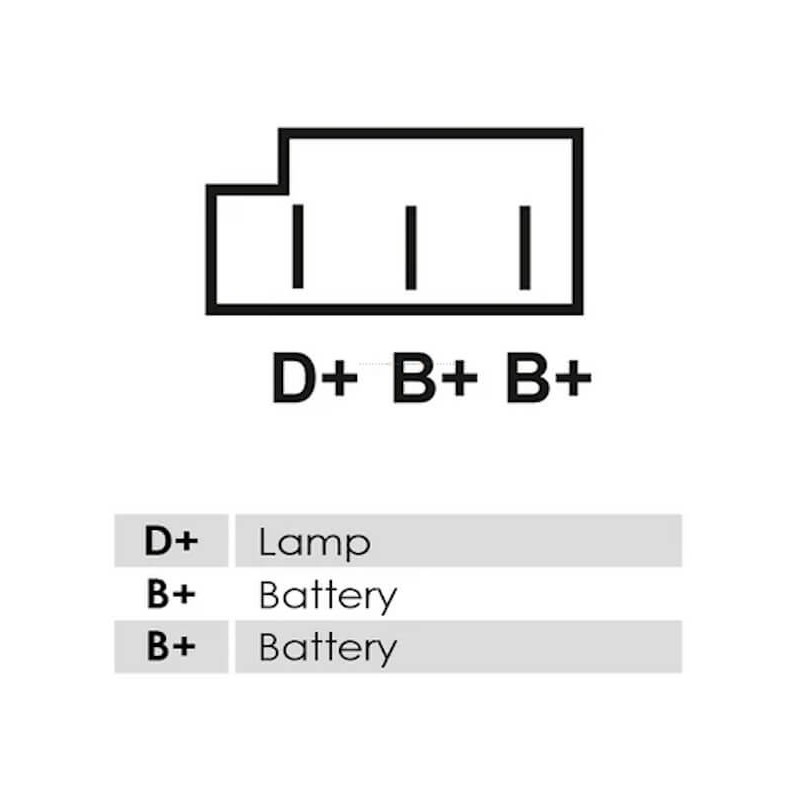

Plug no. 1 PL22

Fan Ef

Pulley Pulley

R =Total length mm 166.00

Belt. adj. brackethole pos. 5

Remarks With couvercle from palier from Used onvers la left and côté supérieur du engine.

generic brand

= BOSCH 9120690170

= LUCAS NAB900 / 66921126 / 66021155 / 66021070

                      NO CORE EXCHANGE NEEDED

                                      TWO YEARS WARRANTY
