Alternator replacing LUCAS NAB301 / 60921031 / 60921028

Information:

Voltage 14

Amp 65

D = Bracket hole 8.20

G = Belt. adj. bracket hole M8

B = Width/holder arm 11.00

E = Belt. adj. brackethole pos. 10

C = Mount. bracket dist 82.00

H = Pulley dia. 64.00

A = Pulley dist. 38.00

Grooves/pulley 1

J = Radius 85.15

J = Radius 86.35

Position B + M6

Rotation Cr

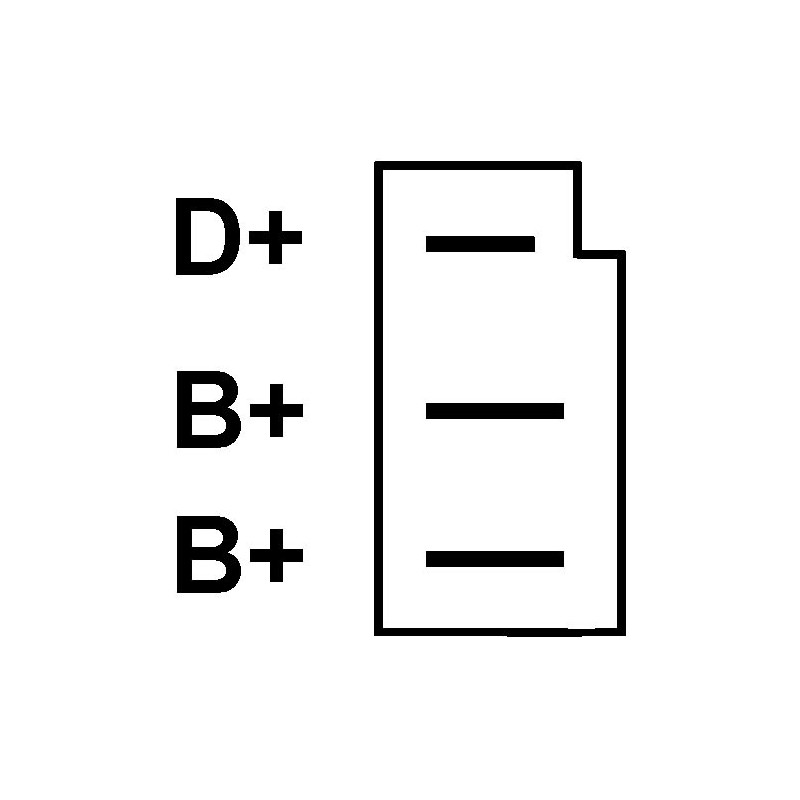

Plug no. 1 PL22

Fan Ef

Pulley Pulley

R = Total length mm 167.50

= FEMSA ALP12N-1

= LUCAS NAB301 / 60921031 / 60921028 / 60210160 / 60210159
60021065 / 60021061 / 60021041 / 60021015 / 60021012 / 23582

23582a / 23582b / 23582d / 23667 / 23667a / 23667b / 23667d / 23696

23696a / 23696b / 23696d / 23723 / 23723a / 23786 / 23786a / 23826

23826a / 23826b / 23935 / 23935a / 24044 / 24044a / 24064 / 24064a / 24064b

= MAZDA RF1118300 / RF1118300A / RF1118300B / RF1118300C

RF1118300E / RF1118300F / RF1118300G / RF1118300H

RF1118300K

= MOTOROLA 9AR2913 / 9AR2878 / 9AR2803F / 9AR2706G
9AR2706 / 9AR2704F / 9AR2684P / 9AR2655G / 9AR2653F / 9AR2653

= PRESTOLITE PBNA0586 / PBNA0229 / PBNA0130 / 66021637 / 66021438

66021137 / 66021115 / 20100693

= PERKINS 2871612 / 2871708 / 2871a110 / 2871a112 / 2871a123
2871a126

                                                TWO YEARS WARRANTY

                                    NO CORE EXCHANGE NEEDED
