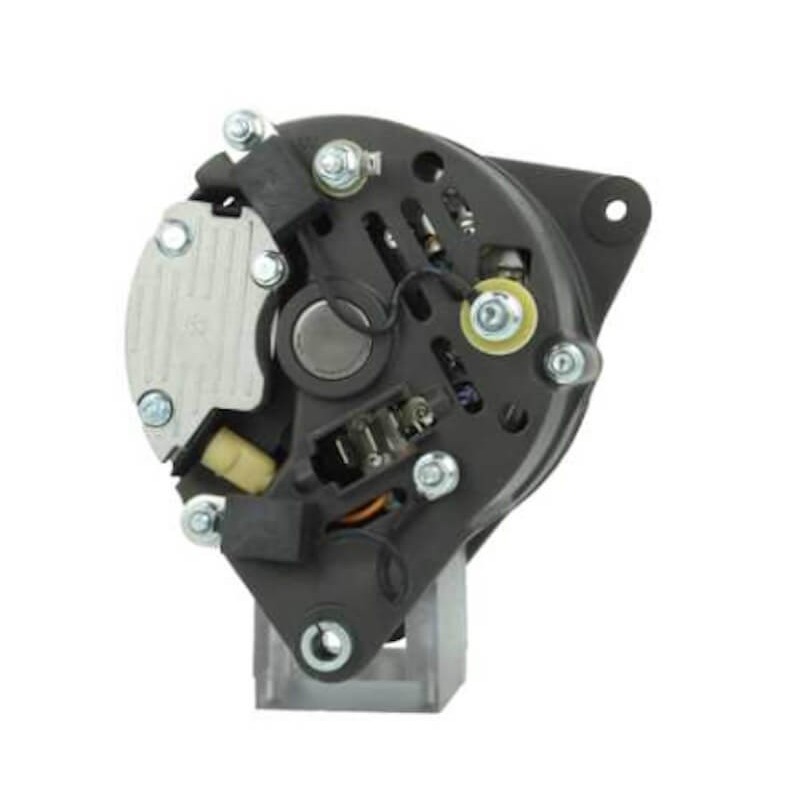

Alternator NEW for PERKINS, Sabre, YANMAR
= LUCAS 57020057 / 47020089 / 47020088 / 47020086 / 47020084 / 47020068 47020067 / 47020065 / 47020059 / 47020057 / 2871a152 / 2871a157
= MOTOROLA 9AR2999P / 9AR2958P / 9AR2958 / 9AR2854P / 9AR2831P / 9AR2747P 9AR2746P / 9AR2745P / 9AR2744P / 9AR2735P
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information:
Rotation CR/ACR
Amp 70 - Voltage 14 - Insulated return - Plug type W
Physical Information |
||
|---|---|---|
| D | Bracket hole | 8.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 11.50 |
| E | Belt. adj. brackethole pos. | 50 |
| C | Mount. bracket dist | 82.50 |
| H | Pulley dia. | 81.50 |
| A | Pulley dist. | 45.00 |
| i | Grooves/pulley | 1 |
| j | Radius | 86.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M6 |
| n | Rotation | CR/ACR |

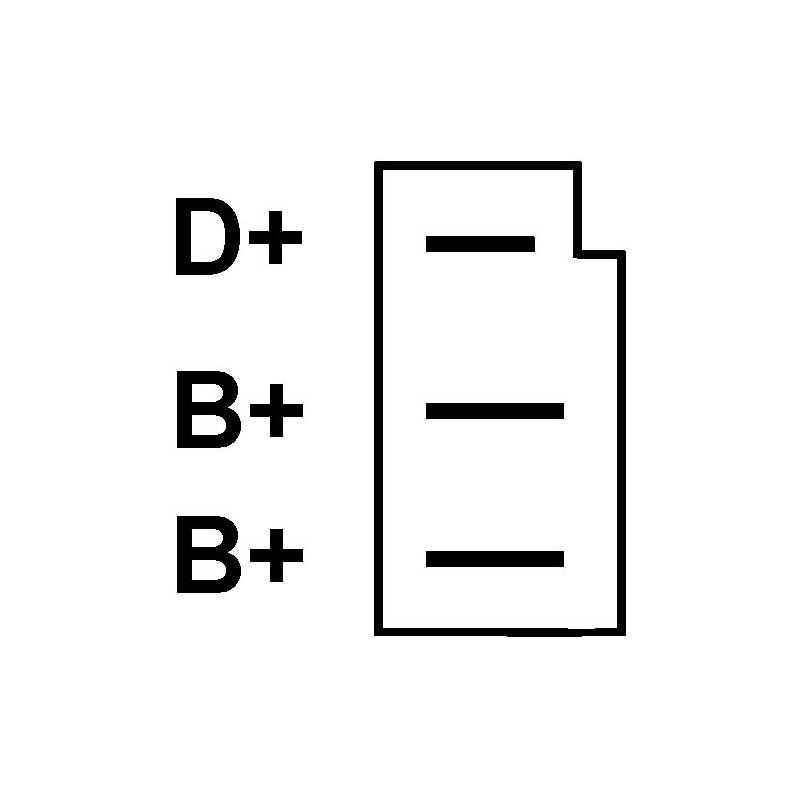

| o | Plug no. 1 | PL22 |
| Q | Tipo prise W | M5-6.3 |
| R | Total length mm | 170.50 |
Replacing |
|
|---|---|
| 11.201.332 | ISKRA |
| 11.201.832 | ISKRA |
| 111509 | CARGO |
| 2871A145 | PERKINS |
| 2871a152 | LUCAS |
| 2871a157 | LUCAS |
| 2871a602 | PERKINS |
| 2927440 | VALEO |
| 2928580 | VALEO |
| 2929580 | VALEO |
| 47020055 | LUCAS |
| 47020057 | LUCAS |
| 47020059 | LUCAS |
| 47020065 | LUCAS |
| 47020067 | LUCAS |
| 47020068 | LUCAS |
| 47020084 | LUCAS |
| 47020086 | LUCAS |
| 47020088 | LUCAS |
| 47020089 | LUCAS |
| 510-810 | MOTOROLA |
| 510-811 | MOTOROLA |
| 510-812 | MOTOROLA |
| 510-813 | MOTOROLA |
| 510-822 | MOTOROLA |
| 510-824 | MOTOROLA |
| 510-825 | MOTOROLA |
| 510-826 | MOTOROLA |
| 510-842 | MOTOROLA |
| 510-859 | MOTOROLA |
| 57020057 | LUCAS |
| 9ar2723p | MOTOROLA |
| 9ar2724p | MOTOROLA |
| 9ar2732p | MOTOROLA |
| 9ar2733p | MOTOROLA |
| 9ar2734p | MOTOROLA |
| 9ar2735p | MOTOROLA |
| 9ar2744p | MOTOROLA |
| 9ar2745p | MOTOROLA |
| 9ar2746p | MOTOROLA |
| 9ar2747p | MOTOROLA |
| 9ar2831p | MOTOROLA |
| 9ar2854p | MOTOROLA |
| 9ar2958 | MOTOROLA |
| 9ar2958p | MOTOROLA |
| 9ar2999p | MOTOROLA |
| aak3301 | ISKRA |
| 510-823 | PRESTOLITE |
| 510-824 | PRESTOLITE |
| 66021587 | PRESTOLITE |
= LUCAS 57020057 / 47020089 / 47020088 / 47020086 / 47020084 / 47020068 47020067 / 47020065 / 47020059 / 47020057 / 2871a152 / 2871a157
= MOTOROLA 9AR2999P / 9AR2958P / 9AR2958 / 9AR2854P / 9AR2831P / 9AR2747P 9AR2746P / 9AR2745P / 9AR2744P / 9AR2735P
Mounted on :
1985-Aujourd'hui YANMAR 2QMH
1975-Aujourd'hui FORD Castoldi 1600
1975-Aujourd'hui FORD Castoldi 3000,D
1975-Aujourd'hui FORD Castoldi 3500D
1975-Aujourd'hui FORD Fenwick 2401
1975-Aujourd'hui FORD Fenwick 2402
1975-Aujourd'hui FORD Fornaut 2401E
1975-Aujourd'hui FORD Fornaut 2402E
1976-Aujourd'hui JGM 1550D
1976-Aujourd'hui JGM 1800D
1976-Aujourd'hui JGM 2500D
1976-Aujourd'hui JGM 4150D
1979-Aujourd'hui Leyland Thornycroft D2367
1979-Aujourd'hui Leyland Thornycroft LT108
1979-Aujourd'hui Leyland Thornycroft LT230
1979-Aujourd'hui Leyland Thornycroft LT345
1979-Aujourd'hui Leyland Thornycroft LT54
1979-Aujourd'hui Leyland Thornycroft LT90
1982-Aujourd'hui MOTOROLA Various Models
Tous Sabre
1982-Aujourd'hui VALEO Various Models
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
