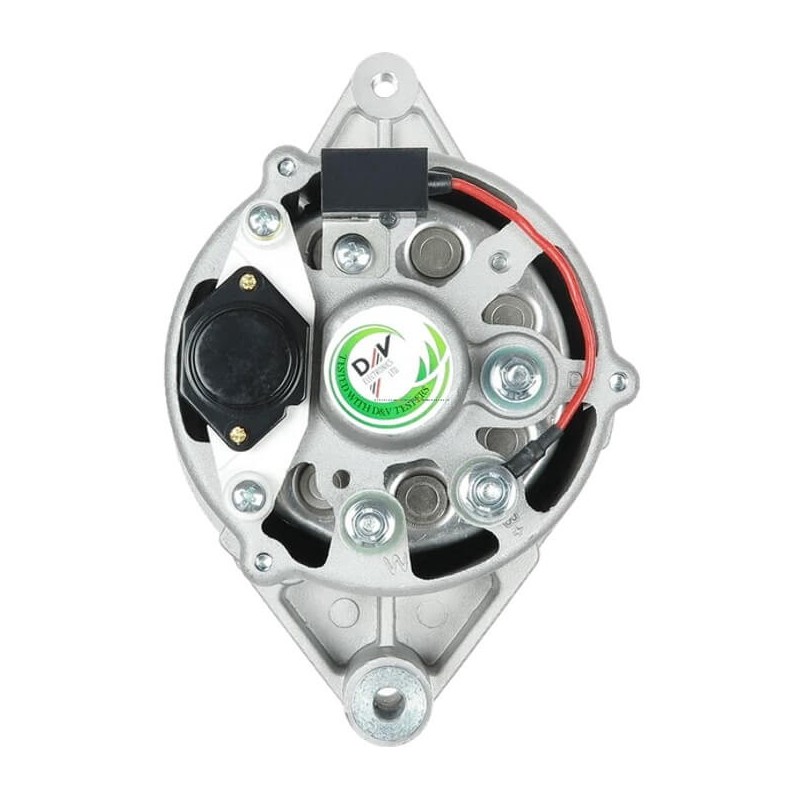

Alternator replacing BOSCH 0120300516 / 0120300535 / 0120300562
Alternator NEW for JOHN DEERE
= 111948 / 11201119 / 11201453 / 11201784 / 220350 / 280730 / 433052
9AR2862K / 9AR2944K / 9AR5040K / AAG1316 / AR62401 / DRA0090
DRA0110 / DRA3549 / IA0119 / IA0784 / LRA01199 / LRB136 / 555001033
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 33
D = Bracket hole 8.00
G = Belt. adj. bracket hole M8
B = Width/holder arm 56.00
E = Belt. adj. brackethole pos. 60
H = Pulley dia. 93.00
A = Pulley dist. 83.30
Grooves/pulley 1
J = Radius 84.50
J = Radius 87.50
Position B + M6
Rotation Cr
Plug no. 1 PL_NA
Fan Ef
Pulley Pulley
R = Total length mm 178.00
generic brand
= BOSCH 0120300516 / 0120300535 / 0120300562 / 0120339512 / 0120339513
0120339543 / 0120339544 / 0120339545 / 0120400775 / 0986030110 / 0986030114
= 111948 / 11201119 / 11201453 / 11201784 / 220350 / 280730 / 433052
9AR2862K / 9AR2944K / 9AR5040K / AAG1316 / AR62401 / DRA0090
DRA0110 / DRA3549 / IA0119 / IA0784 / LRA01199 / LRB136 / 555001033
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
