Alternator replacing BOSCH 0120489959 / 0120489958 / 0986033940

Information:

Voltage 14

Amp 65

Plug type W

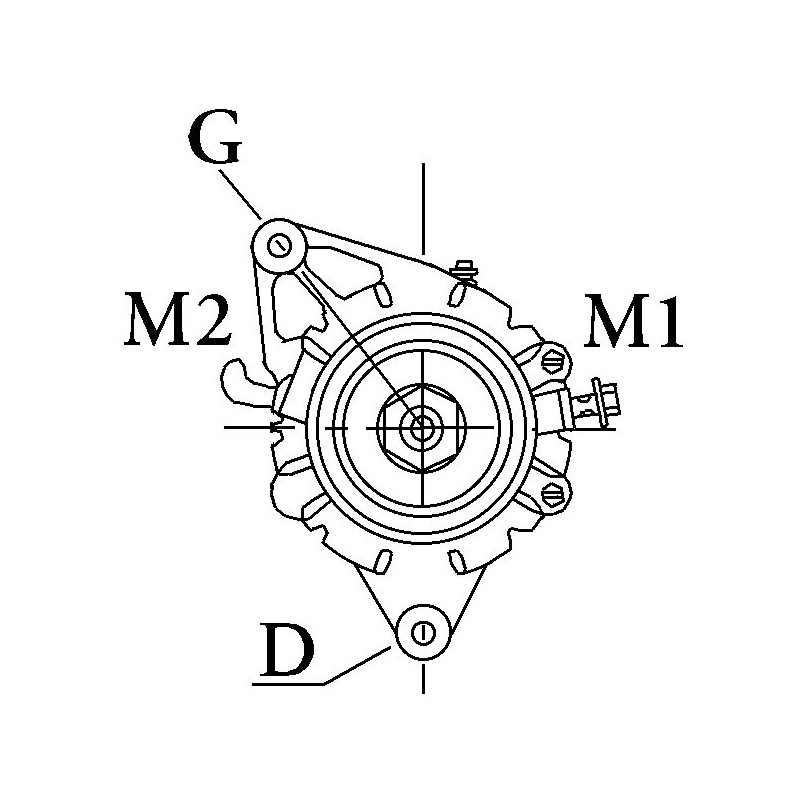

D = Bracket hole 8.20

G = Belt. adj. bracket hole M8

B = Width/holder arm 10.40

E = Belt. adj. brackethole pos. 50

C = Mount. bracket dist 83.00

H = Pulley dia. 90.80

A = Pulley dist. 36.85

Grooves/pulley 1

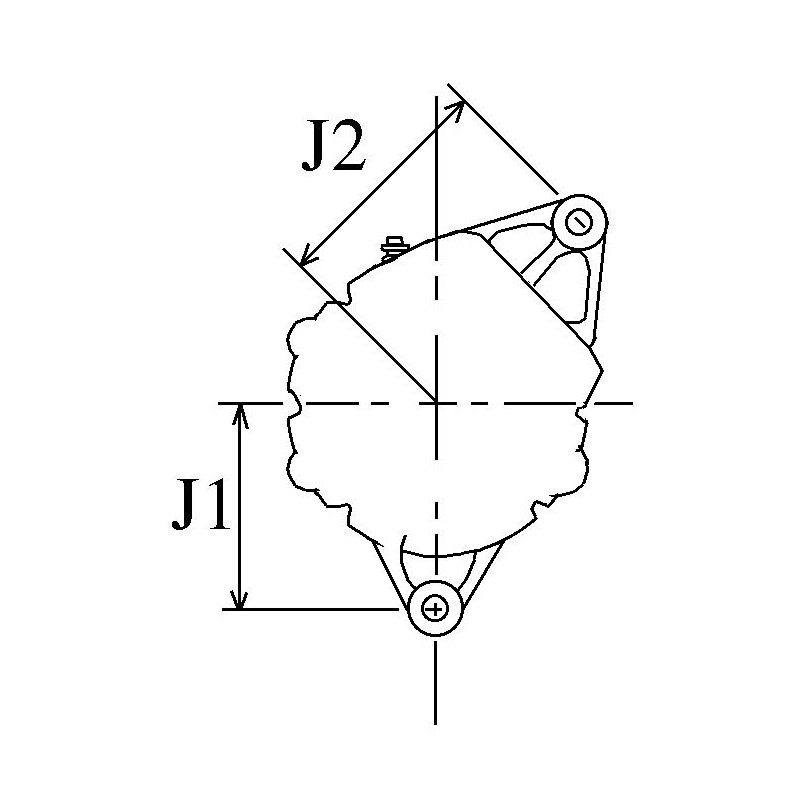

J = Radius 83.00

J = Radius 83.50

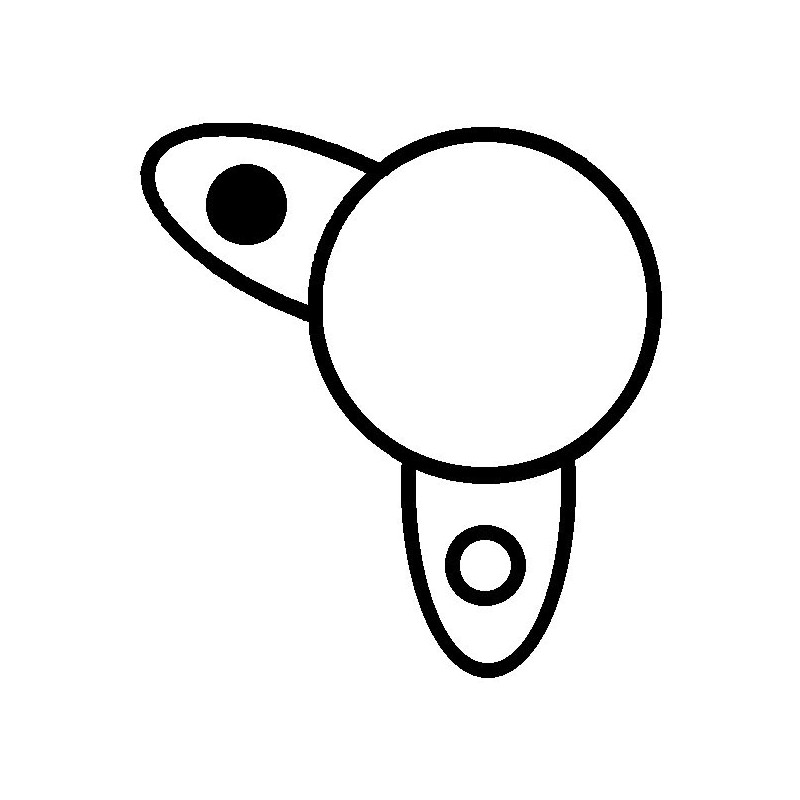

Position B + Plug

Rotation Cr

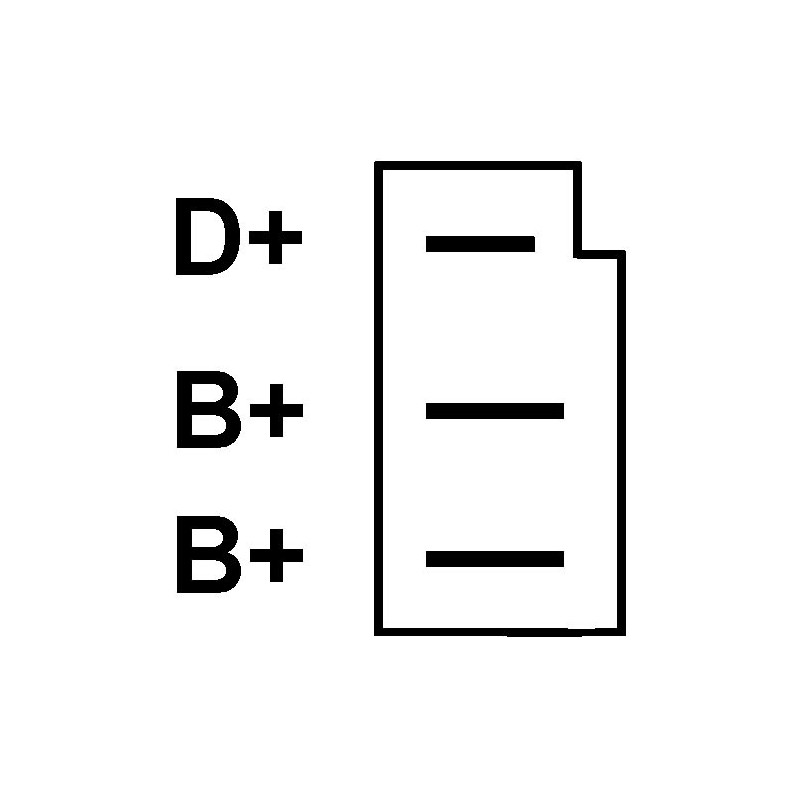

Plug no. 1 PL22

Fan Ef

Pulley Pulley

R = Total length mm 177.50

Generic brand

= BOSCH 0120489959 / 0120489958 / 0986033940

= FORD 81DB10300BA / 6173461

= ISKRA AAK4118 / 11.201.276

= LUCAS 24049B / 24049A / 24049 / 23680 / 23680a / 23680d

= MOTOROLA 9AR2963L / 9AR2963 / 9AR2919P / 9AR2919

= MASSEY FERGUSON 3477851R91 / 3538541M91

                             NO CORE EXCHANGE NEEDED

                                              TWO YEARS WARRANTY
