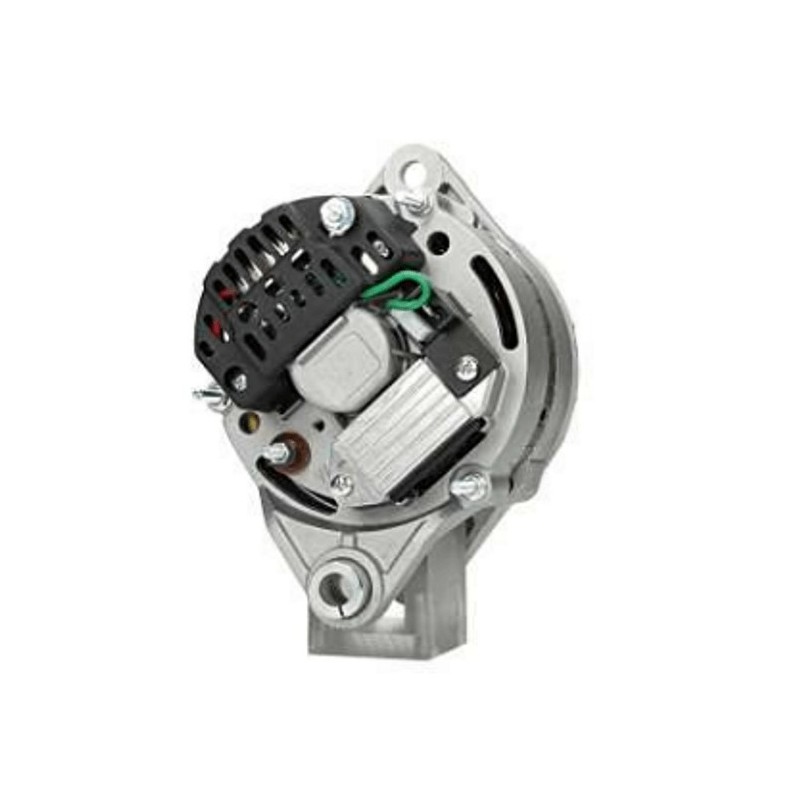

Alternator replacing BOSCH 0120489147 / 0120489146 / 0120489134

Information:

Voltage 14

Amp 55

D = Bracket hole 12.00

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 17.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 63.00

H = Pulley dia. 75.00

A = Pulley dist. 49.00

Grooves/pulley 1

J = Radius 84.60

J = Radius 80.30

Position B + M6

Rotation Cr

Plug no. 1 PL_NA

Fan Without

Pulley Pulley

R = Total length mm 169.00

= BOSCH 9120331881 / 0120489838 / 0120489770 / 0120489763 / 0120489151 / 0120489147 / 0120489146 / 0120489134

0120489107 / 0120489021 / 0120400943 / 0120400914

0986030971 / 0986030960 / 0986030970

= Alfa roméo 116760506000 / 116760506100

= FIAT 4242730 / 4263584 / 4263983 / 4285622
46231786 / 4721589 / 4721591 / 4721592
4731839 / 4750583 / 4808503 / 4808505 / 77515411

= HELLA 8EL725718-001

= ISKRA AAK4140 / AAK3560 / AAK1135 / 11.201.457 / 11.201.306 / 11.201.242 / 11.201.112

= LUCAS LEA0015 / 61920269 / LRA190 / LRA00833 / LRA833

= MAGNETI MARELLI 943356353 / 943320023 / 63321180 / 63321041 / 63320100 / 63320023 / 63307841 / 63307536 / 63307526

63307506 / 63307236 / 63305606 / 63305536 / 63305526

63305506

= MOTOROLA 9AL5050K

= DELCO REMY 19025046 / DRA0970

= VALEO 2950500 / 432868 / 436103

             NO CORE EXCHANGE NEEDED E

                                  TWO YEARS WARRANTY
