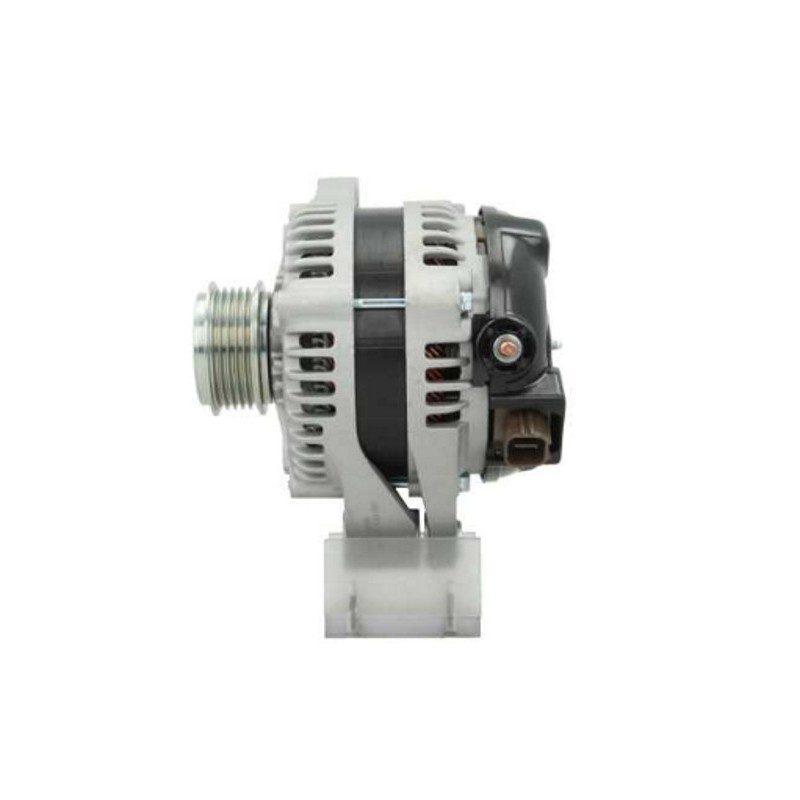

Alternator DENSO DAN1345 / 104210-3050 / 104210-3051 / 104210-3052
Alternator NEW DENSO for TOYOTA
= DENSO 104210-3050 / 104210-3051 / 104210-3052
= TOYOTA 27060-27040 / 27060-27050
= 0986049221 / DAN1345 / DRA0857 / LRA03240
vous trouverez la version en Generic Brand sous la Reference w116366
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 9.80 |
| B | Width/holder arm | 53.00 |
| E | Belt. adj. brackethole pos. | 55 |
| H | Pulley dia. | 58.20 |
| A | Pulley dist. | 92.50 |
| i | Grooves/pulley | 5 |
| j | Radius | 90.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M6 |
| n | Rotation | Cr |

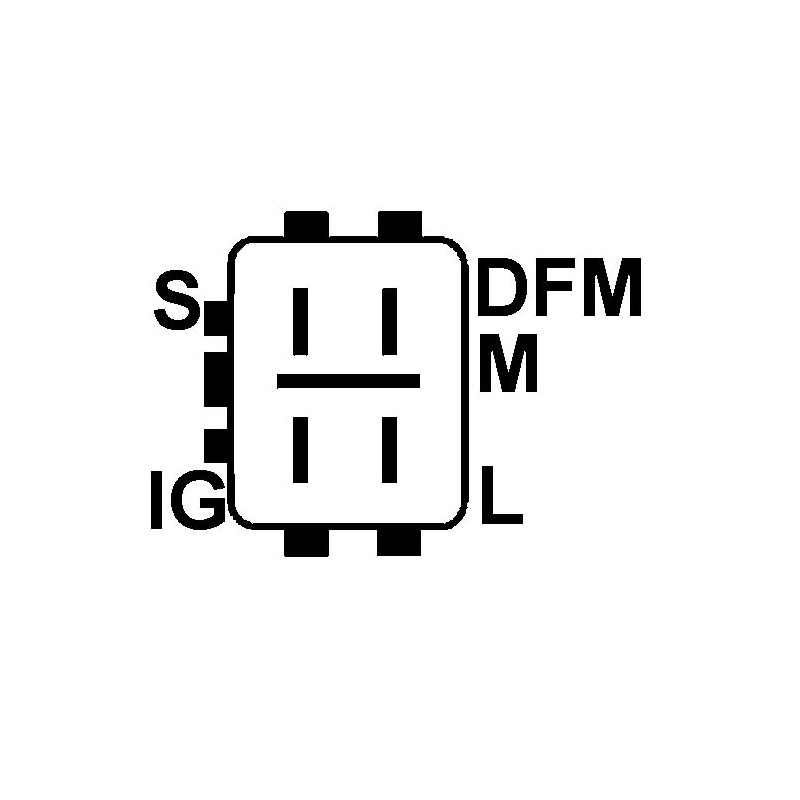

| o | Plug no. 1 | PL78 |
| R | Total length mm | 165.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 130 | |
Generic Brand
Replacing | |
|---|---|
| 104210-3050 | DENSO |
| 104210-3051 | DENSO |
| 104210-3052 | DENSO |
| 27060-27040 | TOYOTA |
| 0986049221 |
| 1042103050 |
| 1042103051 |
| 1042103052 |
| 195556130 |
| 23298 |
| 23298N |
| 2706027040 |
| 2706027050 |
| 285852 |
| 2905419 |
| 6195SP |
| 9090407F |
| 930857 |
| ATA623 |
| DAN1345 |
| DRA0857 |
| HJA1721IR |
| J5112105 |
| J5112132 |
| JA1721IR |
| LRA03240 |
| TNA074 |
| TRA218 |
fits:
| TOYOTA | Avensis 2.0 | 2.0 D-4D | 08/01 |
| TOYOTA | Corolla | 2.0 D-4D | 01/02 |
| TOYOTA | Previa | 2.0 D-4D | 03/01 |
| TOYOTA | Rav4 2.0 | 2.0 D-4D | 09/01 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
