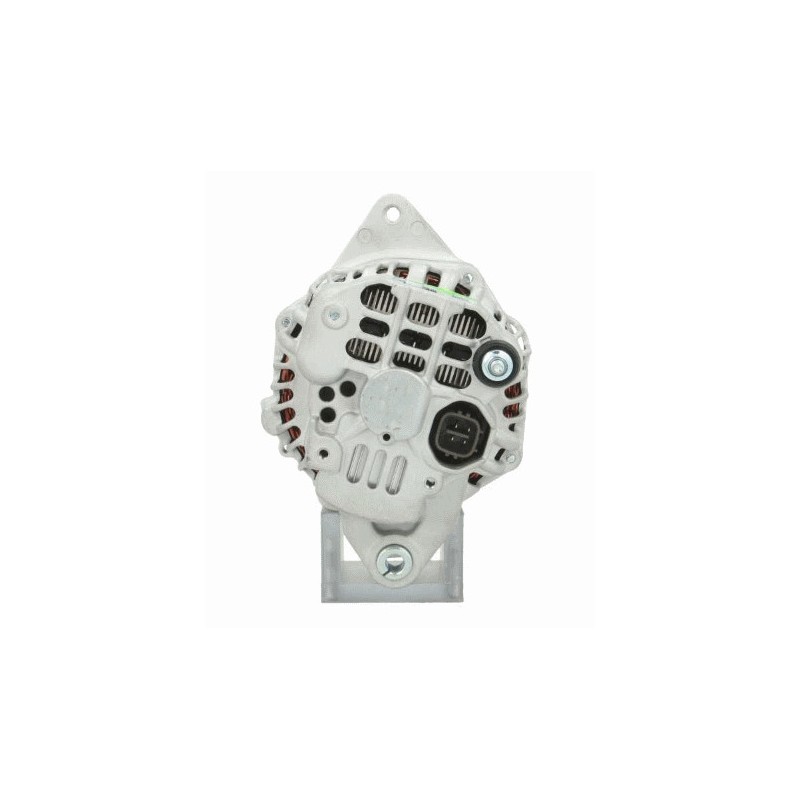

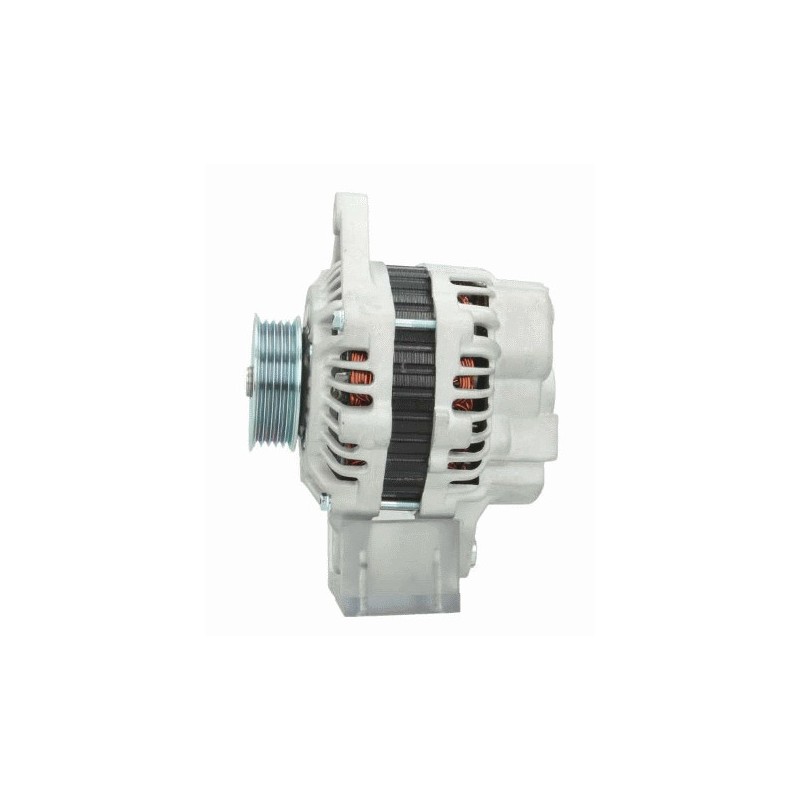

Alternator replacing A005TB1391 / 31100-RSH-004 / AHGA69

Display all pictures

Alternator replacing A005TB1391 / 31100-RSH-004 / AHGA69

Reference: w11177n

Condition: New product

2 Item Items

Alternator NEW replacing :

HONDA 31100-RSH-004, AHGA69, MITSUBISHI A005TB1391

NO CORE EXCHANGE NEEDED

TWO YEARS WARRANTY

More info

More info

Electrical information
Voltage		14
Amp.		80

Physical Information
A	Pulley dist.	42.00
B	Width/holder arm	16.50
C	Mount. bracket dist	39.00
D	Bracket hole	M8
E	Belt. adj. brackethole pos.	2
G	Belt. adj. bracket hole	M8
H	Pulley dia.	65.00
I	Grooves/pulley	5
J	Radius	81.00
J	Radius 2	85.00
K	Position B +	M6
K	B+ position en min.	10
N	Rotation	Cr

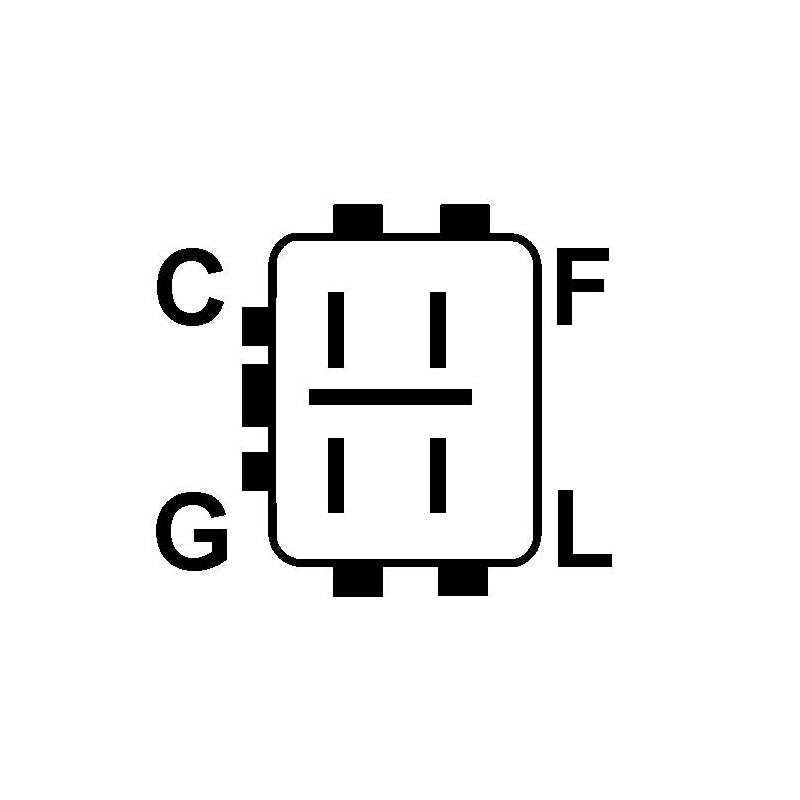

O	Plug n° 1	PL65
R	Total length mm	165.00

generic brand

replacing :

0986080570	BOSCH Remanufactured
11177	EAI
11177N	WAI
11177R	WAI
12060884	EuroTec
125530080	PSH
23544N	WAI
284888	Elstock
31100PWA004	HONDA
31100RSH004	HONDA
57180	EAI
6330SP	Spidan
9090517F	Friesen
A003TB1391	MITSUBISHI
A005TB0091	MITSUBISHI
A005TB1391	MITSUBISHI
A3TB1391	MITSUBISHI
A5TB0091	MITSUBISHI
A5TB1391	MITSUBISHI
AHA426	ATK
AHGA56	HONDA
AHGA69	HONDA
ALT5145sa	Electrolog
DRA0143	DELCO REMY
HJA1897IR	HC
J5114036	Nipparts
JA1897IR	HC
KTR251060160	KTR
L80590	ATL
LRA02544	LUCAS
TRA295	TWA

fits:

Brand	Model	Year
HONDA	Airwave 1.5	01.2004-
HONDA	City 1.3	01.2003-
HONDA	City 1.5	01.1997-
HONDA	Civic 1.4	01.2006-
HONDA	Fit 1.3	01.2003-
HONDA	Fit 1.5	01.2003-
HONDA	Jazz 1.2	01.2002-12.2008
HONDA	Jazz 1.3	01.2002-12.2007
HONDA	Jazz 1.4	01.2002-12.2008
HONDA	Jazz 1.5	01.2002-12.2008
HONDA	Mobilio 1.5	01.2001-12.2008
