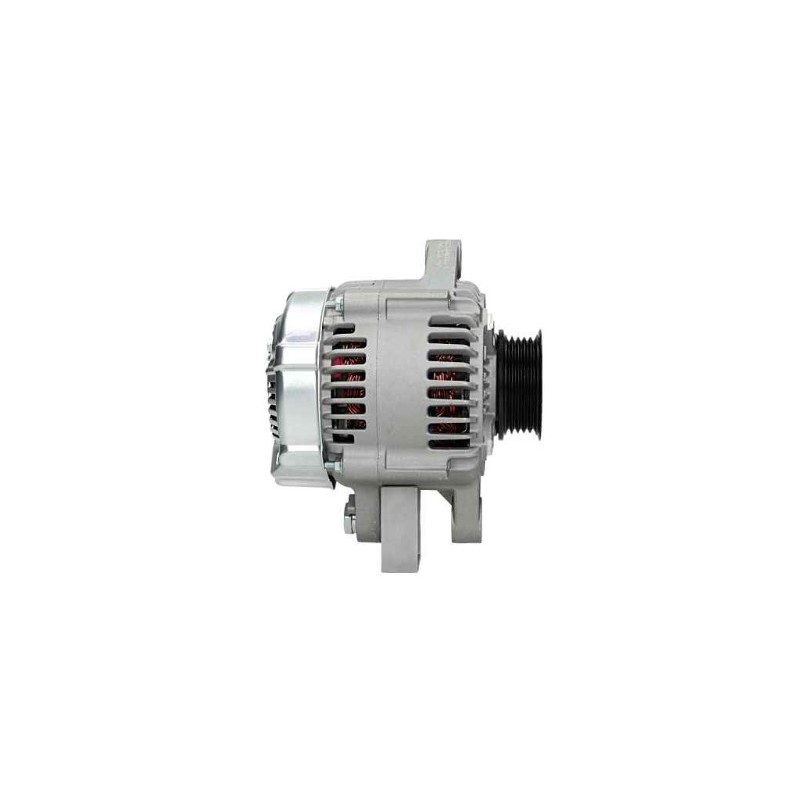

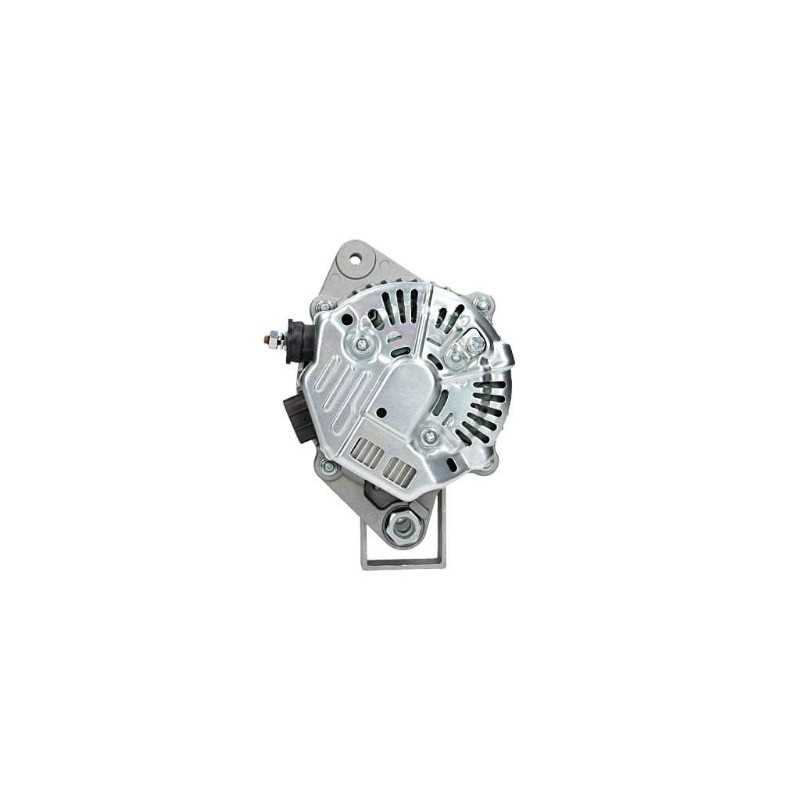

Alternator replacing DENSO 102211-2770 / TOYOTA 27060-33030
Alternator NEW replacing DENSO 102211-2770 / TOYOTA 27060-33030
DRA0013 / LRA02860
fitsYaris 1.4 diesel
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 18.20 |
| E | Belt. adj. brackethole pos. | 5 |
| C | Mount. bracket dist | 41.70 |
| H | Pulley dia. | 59.50 |
| A | Pulley dist. | 31.00 |
| i | Grooves/pulley | 5 |
| j | Radius | 80.00 |
| j | Radius 2 | 79.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

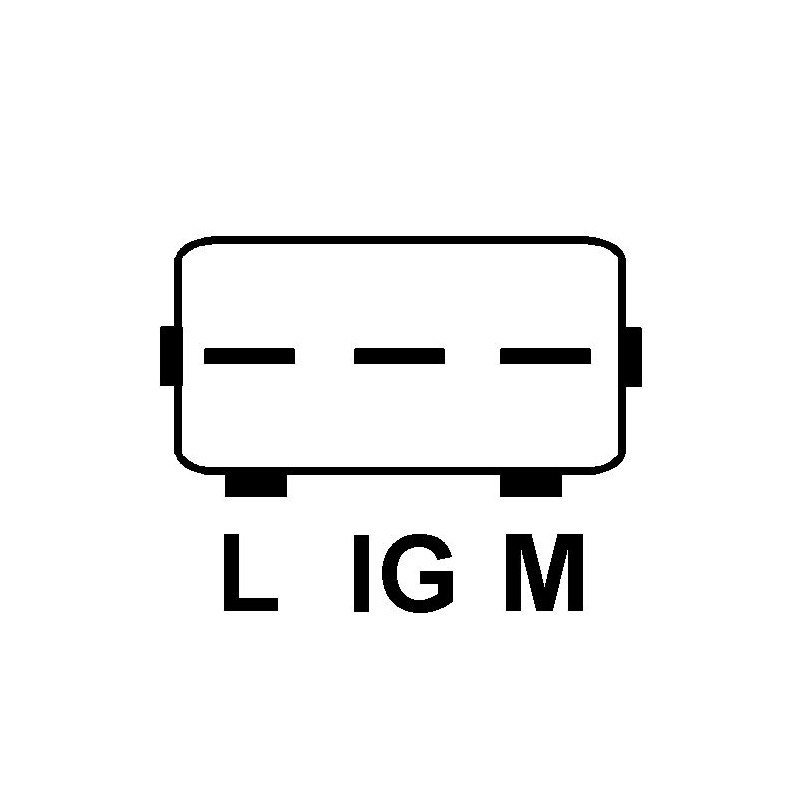

| o | Plug no. 1 | PL67 |
| R | Total length mm | 162.00 |
Replacing | |
|---|---|
| 102211-2770 | DENSO |
| 27060-33030 | TOYOTA |
| ja1892ir | HC-PARTS |
| 1022112770 |
| 195589090 |
| 23860 |
| 2706033030 |
| 284976 |
| 2905423A |
| 6317SP |
| 9090567F |
| 930013 |
| ATA620 |
| DRA0013 |
| HJA1892IR |
| JA1892IR |
| LRA02860 |
generic brand
Mounted on :
| Yaris | Yaris | 1.4 | Diesel | 2001 12 | 2005 08 | 1ND-TV | D-4D | 55 | 75 | Hayon | 1364 | 4 | NLP10 |
| Yaris | Yaris Verso | 1.4 | Diesel | 2001 12 | 2005 09 | 1ND-TV | D-4D | 55 | 75 | MPV | 1364 | 4 | NLP22 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
