Alternator replacing DENSO 101211-5170 / 101211-5130

Information:

Rotation Cr

Amp 80

Voltage 14

D = Bracket hole 10.50

G =  Belt. adj. bracket hole M8

B =  Width/holder arm 53.00

E =  Belt. adj. brackethole pos. 55

H =  Pulley dia. 97.00

A =  Pulley dist. 96.00

Grooves/pulley 1

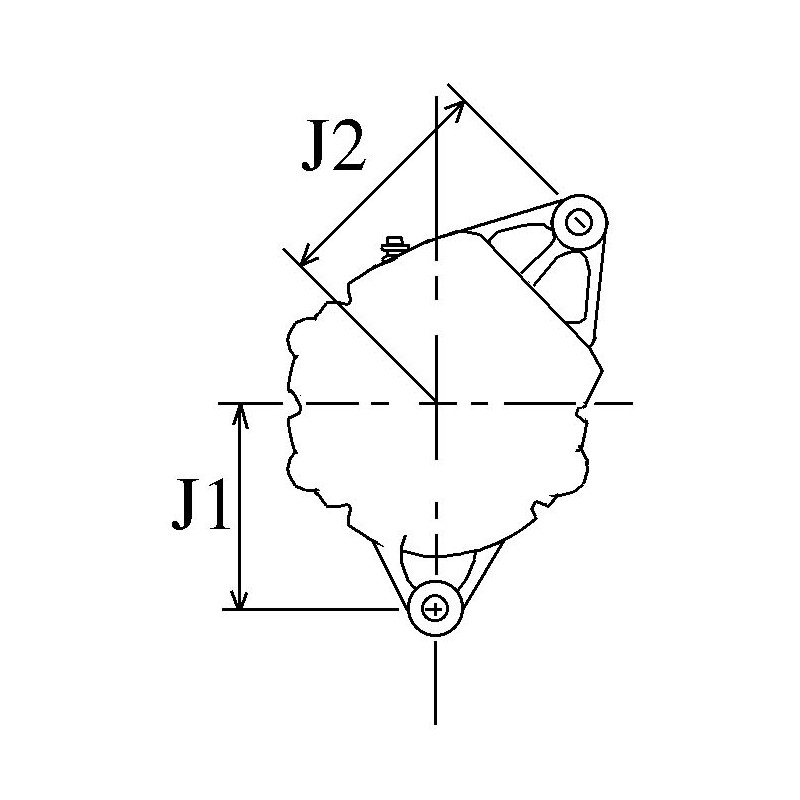

J =  Radius 78.35

J = Radius 2 85.20

Position B + M6

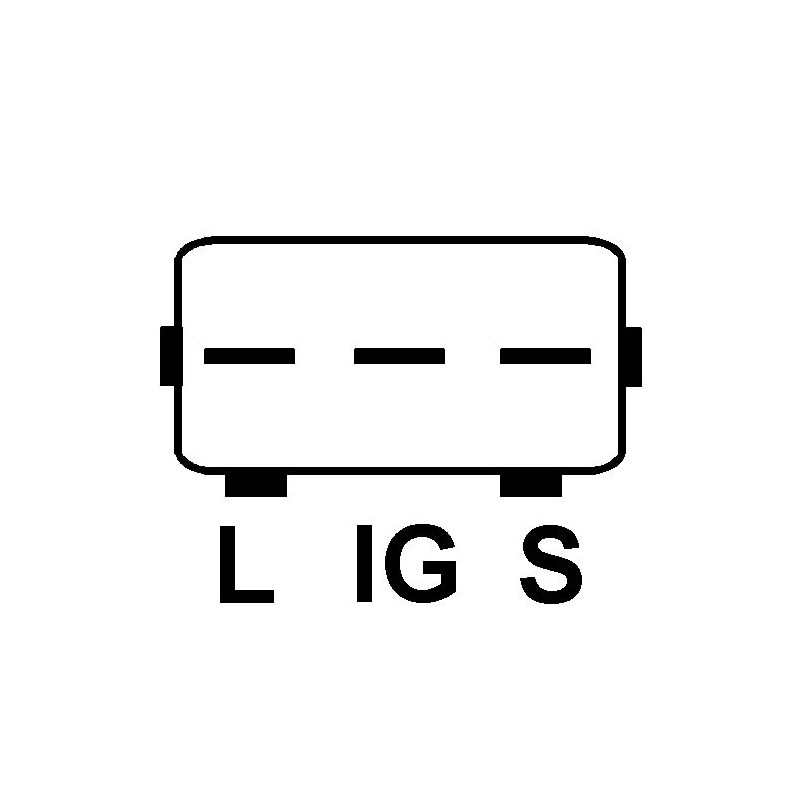

Plug no. 1 PL42

Fan If

Pulley Pulley

generic brand

replacing

= DENSO 101211-5170 / 101211-5130

= TOYOTA 27060-64130 / 27060-64150

= LUCAS LRA2391

= DELCO REMY DRA3738

                        NO CORE EXCHANGE NEEDED

                                          TWO YEARS WARRANTY
