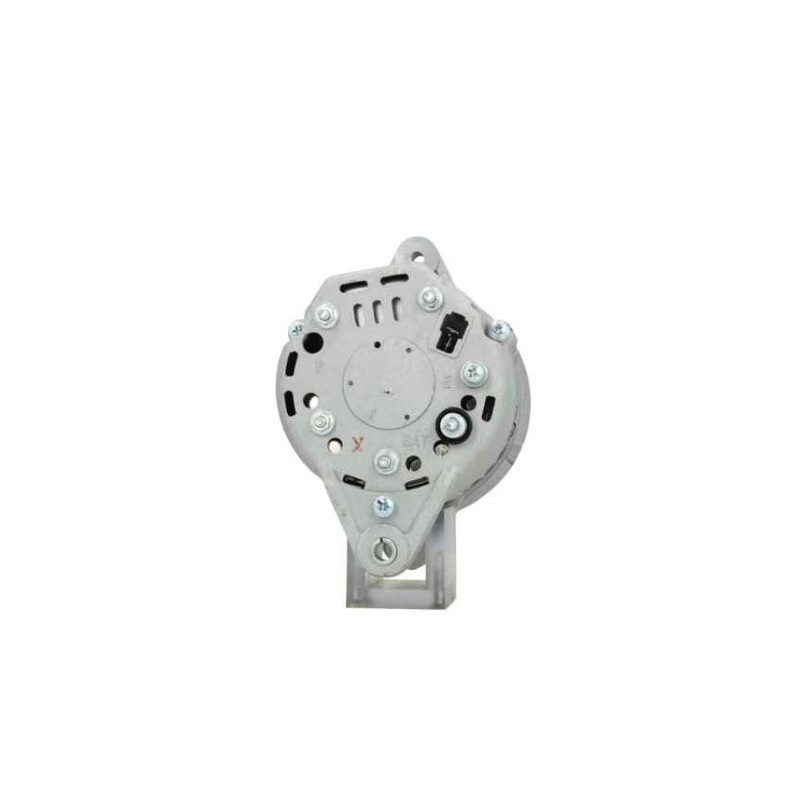

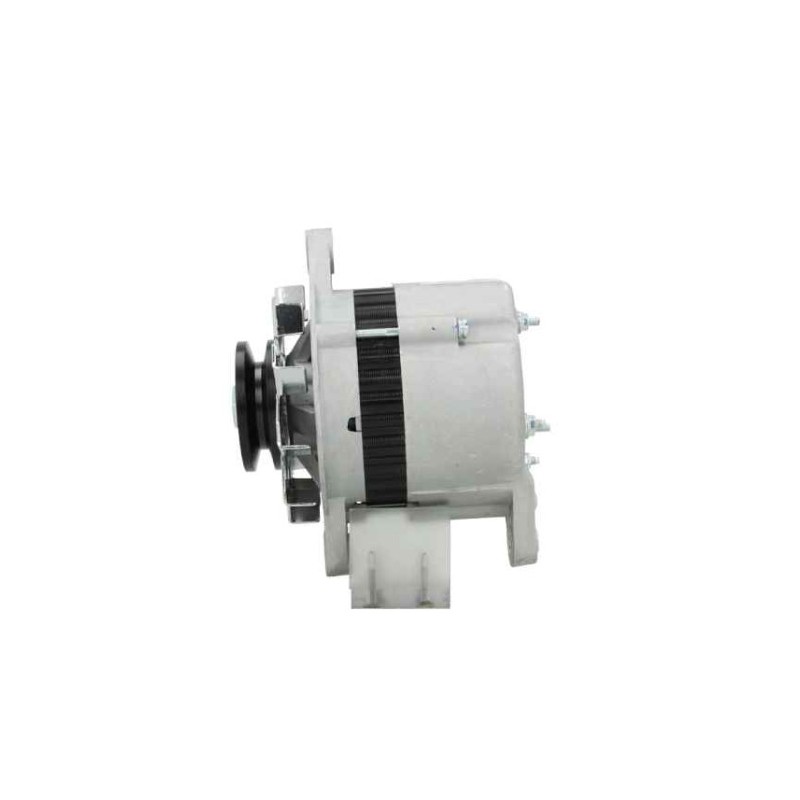

Alternator replacing HITACHI LR150-99B / LR150-99 / LR150-98E

Information:

Voltage 14

Amp 50

D = Bracket hole 10.00

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 81.00

H = Pulley dia. 72.00

A = Pulley dist. 42.50

Grooves/pulley 1

J = Radius 88.50

J = Radius 85.00

Position B + M5

Rotation Cr

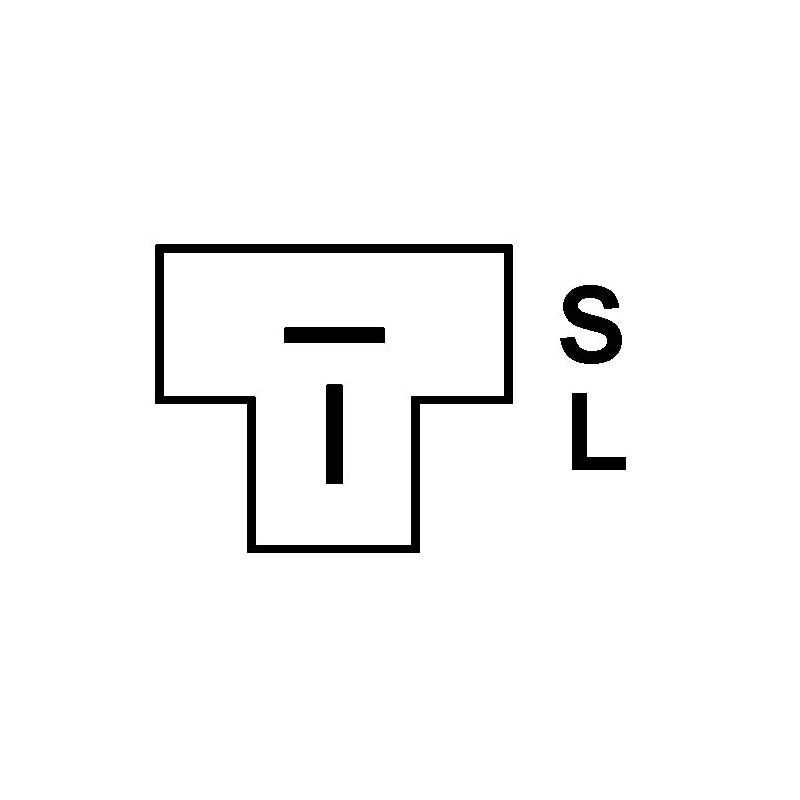

Plug no. 1 PL08

Fan Ef

Pulley Pulley

R = Total length mm 171.00

generic brand

replacing

= NISSAN

2310005B10  / 2310010B10  / 2310027G00 / 2310027G10  / 3100H7700
23100H7701  / 23100H7702  / 23100H7703 / 23100H7710  / 23100H7711
23100M5960  / 23100M6600  / 23100M6601 /  23100M6610  / 23100N9500
23100N9502  / 23100N9510 / 23100N9511  / 23100N9512  / 23100Q4501
23100Q4511  / 23100R9011  / 23100U9500 / 23100U9501 / 23100U9502
23100U9503  / 23100U9510 / 23100U9511  / 23100U9512 / 23100U9513
23100W5800 / 23100W5801 / 23100W5802  / 23100W5803  / 23100W5805
23100W5806  / 23100W5807  / 23100W5807L  / 23100W5807R
23100W5810  / 23100W5811  / 23100W5816  / 23100W7015
23100W7100  / 23100W7101 / 23100W7110  / 23100W7111

= MITSUBISHI
A002T22871  / A002T24172  / A002T24272  / A002T24971
A002T24972 / A005T00272  / A005T20374  / A005T20871
A005T20872  / A005T20972  / A005T21871  / A2T17172
A2T22871  / A2T24072  / A2T24172  / A2T24272
A2T24372  / A2T24971  / A2T24972 / A5T00272
A5T20374  / A5T20871  / A5T20872
A5T20972  / A5T21871  / AQ2050A24
AQ2050N12  / AQ2250C2 / AQ2250D32

= HITACHI
LR150100 / LR150101 / LR150101B  / LR150125 / LR150125B
LR150177  / LR15031 / LR15035  / LR15036  / LR15050
LR15052  / LR15053  / LR15058  / LR15066
LR15067  / LR15098  / LR15098B  / LR15098E  / LR15099
LR15099B

= MAZDA
N22118300  / N22118300C  / N22118300XA

                                             TWO YEARS WARRANTY

                         NO CORE EXCHANGE NEEDED
