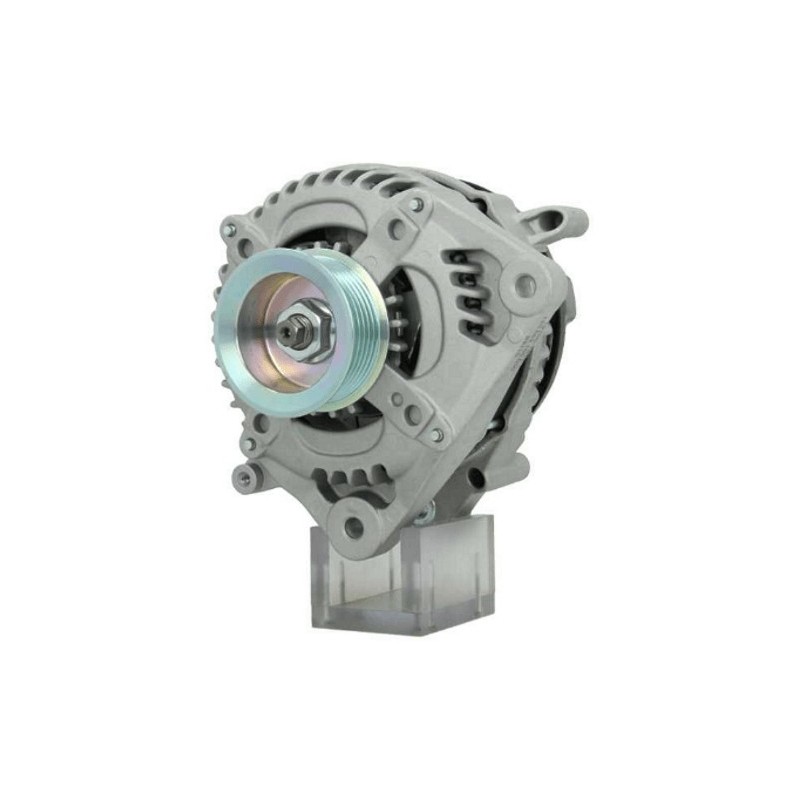

Alternator replacing 104210-1540 / 31100-R1P-H01 / CSJ54
| 0210802060 | Denso |
| 1042101540 | Denso |
| 1042101540SEL | +line |
| 12061101 | EuroTec |
| 125582105 | PSH |
| 2221701302 | DRI |
| 287627 | Elstock |
| 31100R1PH01 | Denso |
| 40211 | CEVAM |
| CSJ54 | Honda |
| CSJ5464 | Honda |
| DAN1370 | Denso |
| DRA1192 | Remy |
| LRA04018 | Lucas |
More info
Physical information | ||
|---|---|---|
| A | Pulley dist. | 46.00 |
| B | Width/holder arm | 20.00 |
| C | Mount. bracket dist. | 38.00 |
| D | Bracket hole | 9.00 |
| E | Belt. adj. brackethole pos. | 13 |
| G | Belt. adj. bracket hole | 8.50 |
| H | Pulley dia. | 60.30 |
| I | Grooves/pulley | 6 |
| J | Radius | 85.00 |
| J | Radius 2 | 86.00 |
| K | B+ | M6 |
| K | Position/B+ in min. | 20 |
| N | Rotation | CW |
| R | Total length mm | 158.00 |

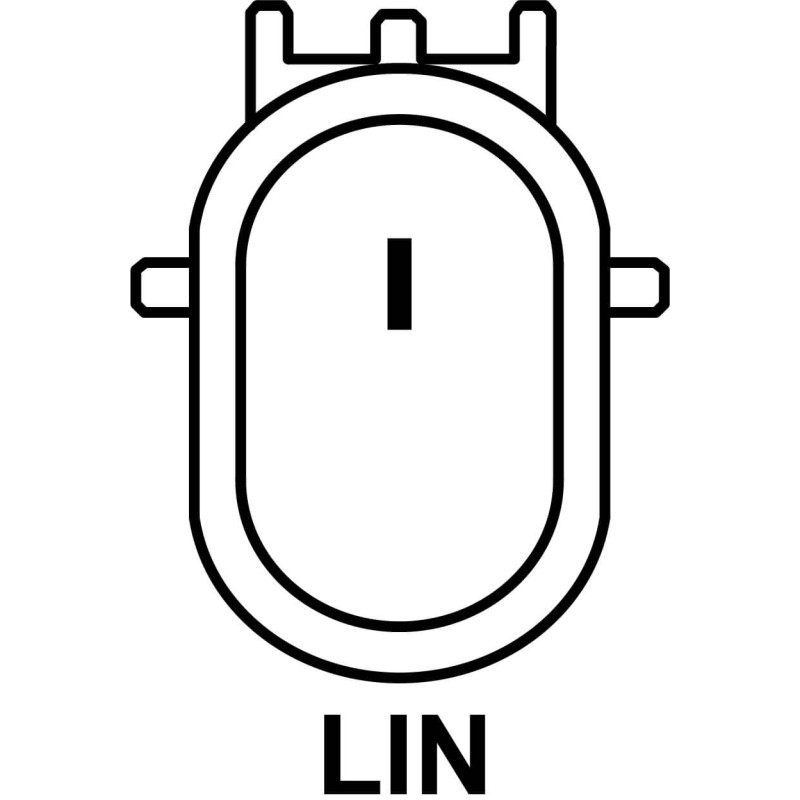

| Terminal type | COM | |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 105 | |
generic brand
for the following models
| Brand | Model | Type | Year |
| HONDA | CR-V 2.0 | [R20A9] | 01/10/12 |
| HONDA | CR-V 2.0 AWD | [R20A9] | 01/10/12 |
