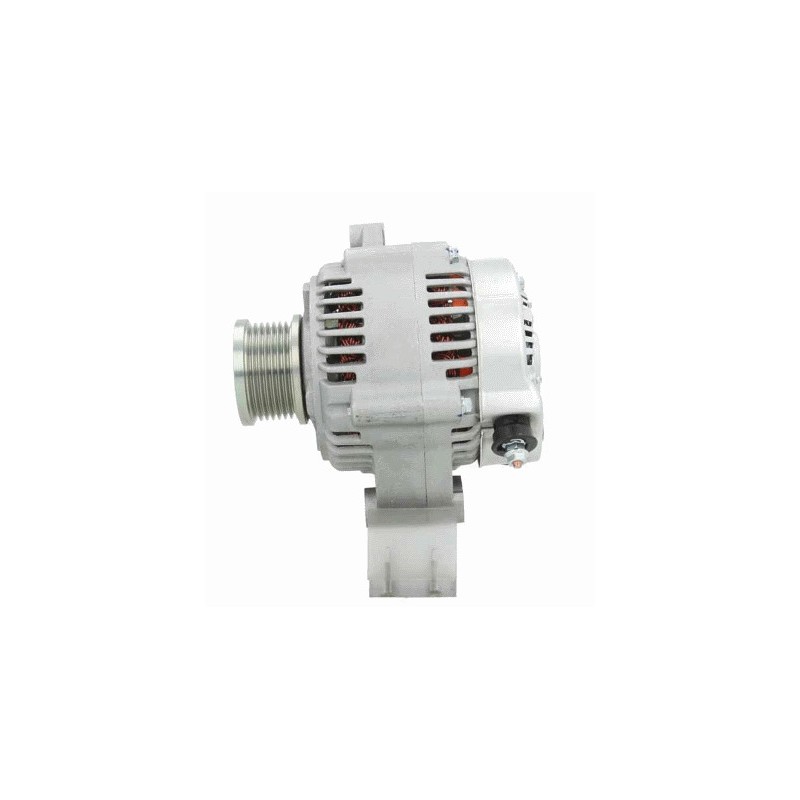

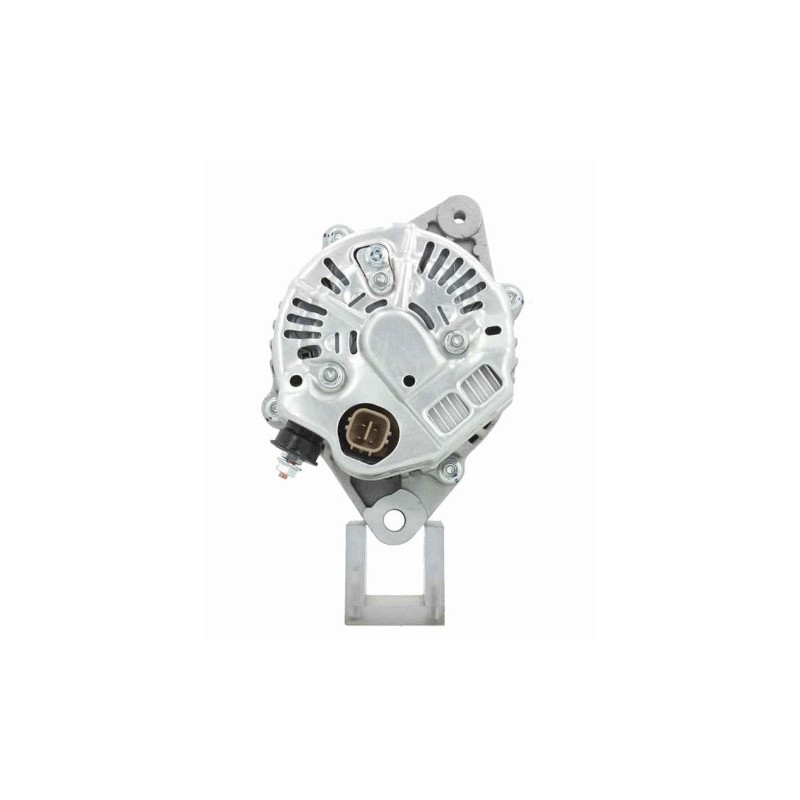

Alternator replacing DENSO 104210-9410 / 104210-9351 / 104210-9340
Alternator NEW for TOYOTA Hiac / Hilux / Land cruiser
= BOSCH 0124315033 / 0124315034 / 0124315046
= DENSO 104210-9410 / 104210-9351 / 104210-9340 / 104210-9231 104210-9230 / 104210-9011 / 104210-9010 / 104210-8370 / 104210-8242 / 104210-8241 / 104210-8240 / 104210-8220 / 104210-8021 / 104210-8020 / 102211-5670 / 102211-5600 / 102211-2810 / 102211-2310
More info
Information:
Rotation Cr
Amp 80
Voltage 14
D = Bracket hole 10.70
G = Belt. adj. bracket hole M8
B = Width/holder arm 58.00
E = Belt. adj. brackethole pos. 57
H = Pulley dia. 58.00
A = Pulley dist. 95.00
Grooves/pulley 7
J = Radius 84.00
J = Radius 2 83.00
Position B + M6

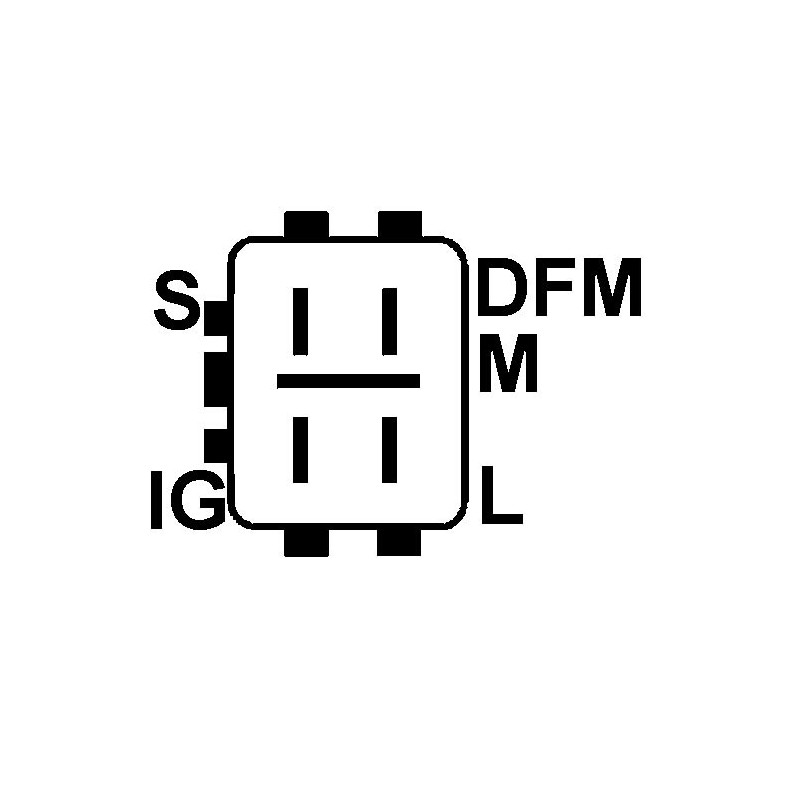

Plug no. 1 PL78
Fan If
Pulley Serpentine Pulley/ Freewheel pulley
Tipo regulator Ir
R = Total length mm 168.00
generic brand
= BOSCH 0124315033 / 0124315034 / 0124315046 / 0986082040
= DENSO 104210-9410 / 104210-9351 / 104210-9340 / 104210-9231 104210-9230 / 104210-9011 / 104210-9010 / 104210-8370 / 104210-8242
104210-8241 / 104210-8240 / 104210-8220 / 104210-8021 / 104210-8020
102211-5670 / 102211-5600 / 102211-2810 / 102211-2310 / DAN1347
= DELCO REMY DRA4279
= LUCAS LRA02317
= TOYOTA 270600L020 / 270600L021 / 270600l022 / 270600L060
270600L080 / 270600L081 / 270600L090 / 2706030010
2706030020 / 2706030030 / 2706030040 / 2706030050
2706030120 / 2706030150 / 2706030151
2706030154
fits:
| Brand | Model | Tipo | Year |
|---|---|---|---|
| TOYOTA | Dyna 2.5 D-4D | [2KD-FTV] | 08.2001- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 11.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 08.2006- |
| TOYOTA | Hiace 2.5 D-4D | [2KD-FTV] | 09.2006- |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 11.2001-08.2006 |
| TOYOTA | Hiace 2.5 D-4D 4WD | [2KD-FTV] | 11.2001- |
| TOYOTA | Hiace 2.5 D-4D 4x4 | [2KD-FTV] | 08.2006- |
| TOYOTA | Hiace 2.5 D-4D 4x4 | [2KD-FTV] | 09.2006- |
| TOYOTA | Hilux 2.5 D | [2KD-FTV] | 12.2007- |
| TOYOTA | Hilux 2.5 D | [2KD-FTV] | 01.2010- |
| TOYOTA | Hilux 2.5 D 4x4 | [2KD-FTV] | 12.2007- |
| TOYOTA | Hilux 2.5 D-4D | [2KD-FTV] | 11.2001-07.2005 |
| TOYOTA | Hilux 2.5 D-4D | [2KD-FTV] | 06.2006- |
| TOYOTA | Hilux 2.5 D-4D 4WD | [2KD-FTV] | 11.2001-07.2005 |
| TOYOTA | Hilux 2.5 D-4D 4x4 | [2KD-FTV] | 12.2007- |
| TOYOTA | Hilux 3.0 D 4x4 | [1KD-FTV] | 12.2007- |
| TOYOTA | Land Cruiser 150 3.0 TDi | [1KD-FTV] | 01.2010- |
| TOYOTA | Land Cruiser 3.0 D-4D | [1KD-FTV] | 10.2000- |
| TOYOTA | Land Cruiser 3.0 D-4D | [1KD-FTV] | 01.2003- |
| TOYOTA | Land Cruiser 3.0 D-4D | [1KD-FTV] | 08.2004- |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
