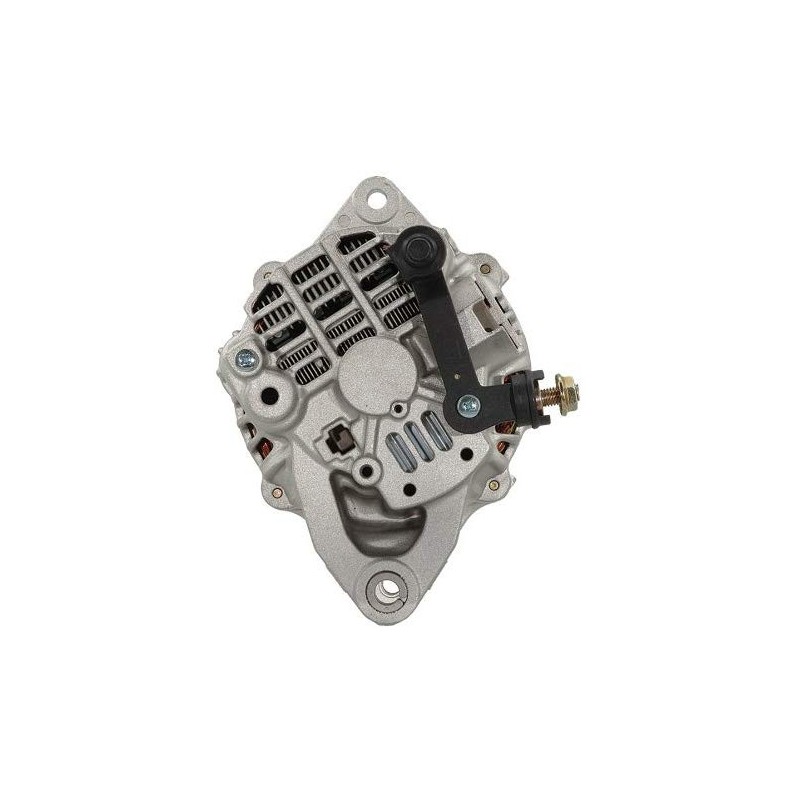

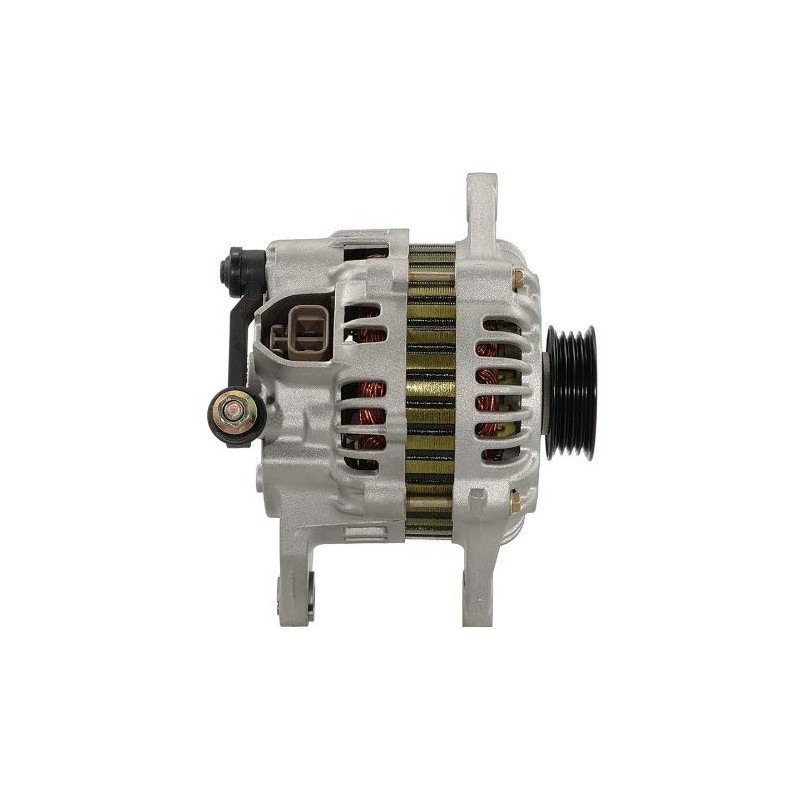

Alternator replacing MITSUBISHI A2TB7791 / A2TB0191B / A2TB0191A

Information:

Voltage 14

Amp 80

D = Bracket hole M10

G = Belt. adj. bracket hole 8.50

B = Width/holder arm 13.50

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 67.00

H = Pulley dia. 55.00

A = Pulley dist. 39.00

Grooves/pulley 4

J = Radius 90.00

J = Radius 85.00

Position B + M8

Rotation Cr

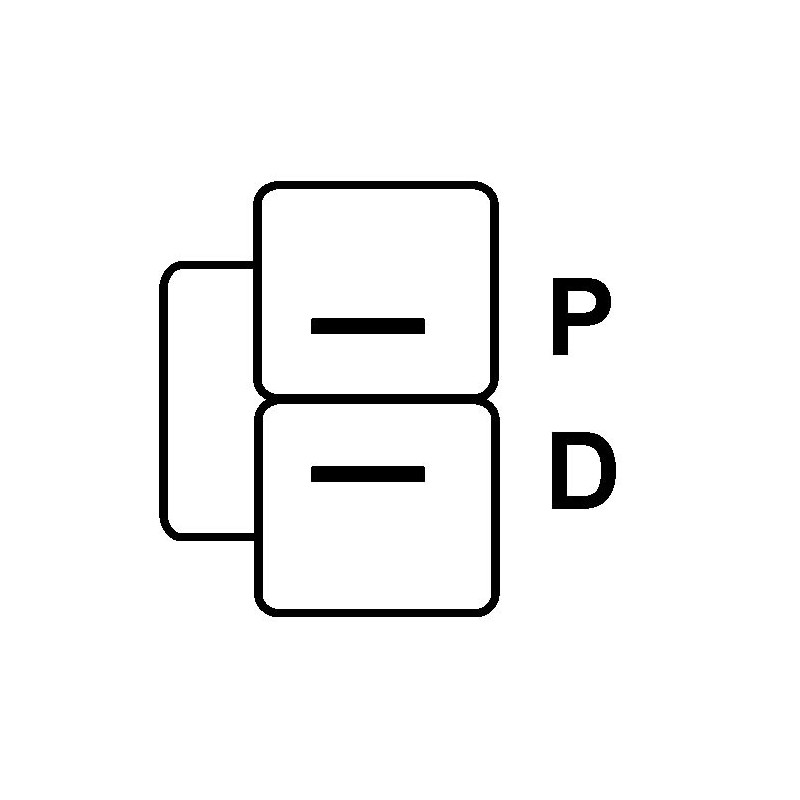

Plug no. 1 PL54

Fan If

Pulley Serpentine Pulley

Total length mm 163.00

generic brand

= BOSCH 0986042911 / 0986UR0170

= DELCO REMY DRA3864

= Elstock 27-2816

= HELLA 8EL737620-001

= HITACHI lr180-766

= LUCAS LRA1122

= MAZDA FP34-18-300A / FP34-18-300 / FPG6-18-300 / FP34-18-300C / BP6D-18-300 / BP6D-18-300a

= MITSUBISHI A002TB0191 / A2TB7791  / A002TB0191B / A2TB0191B / A002TB7791

A2TB0191 / A2TB0191A / A002TB0191A

= VALEO 437478 / 437628

                             NO CORE EXCHANGE NEEDED

                                                 TWO YEARS WARRANTY
