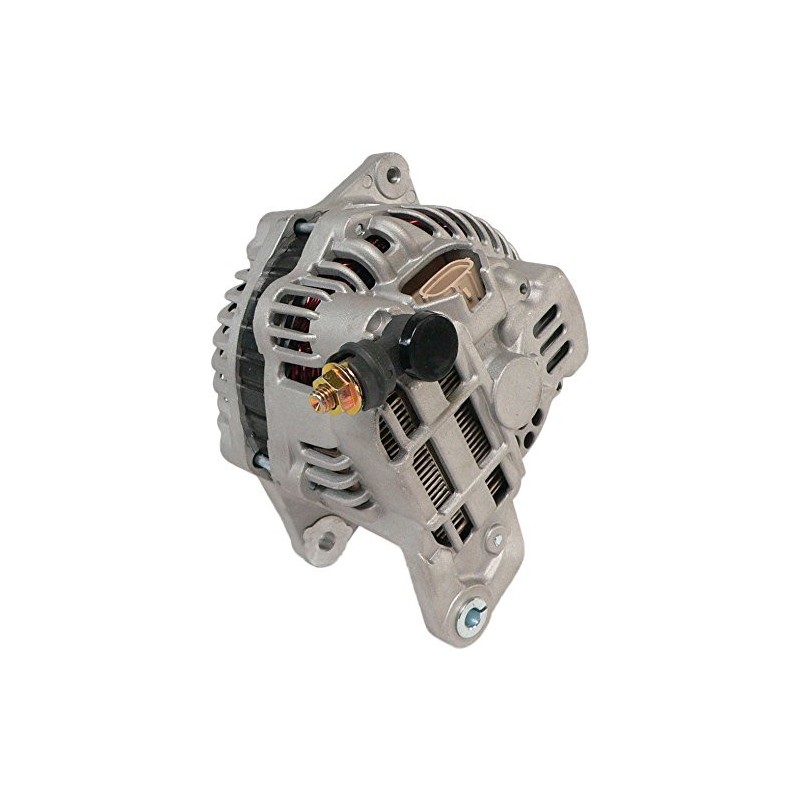

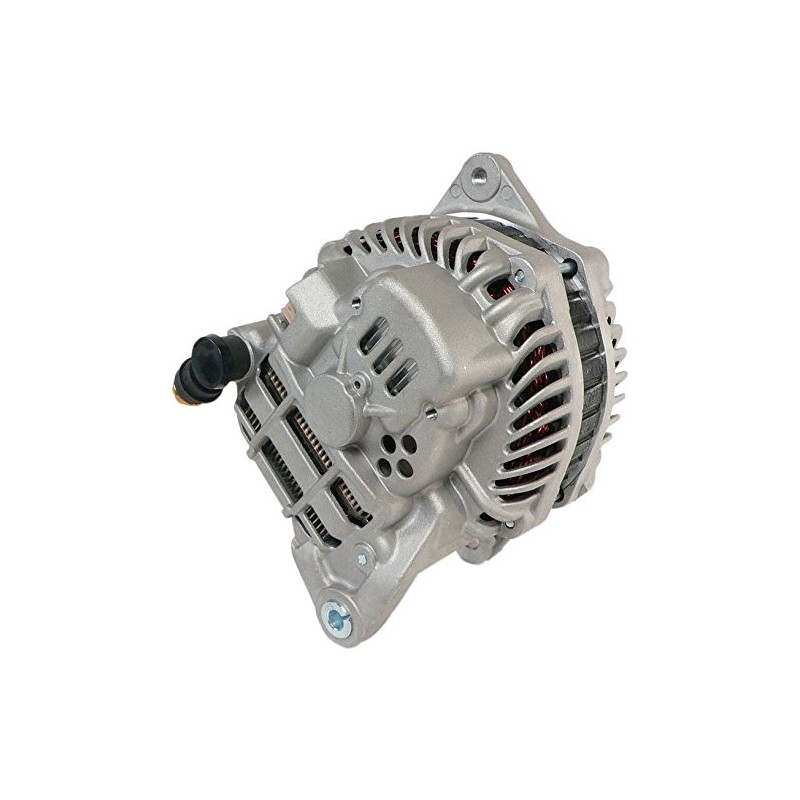

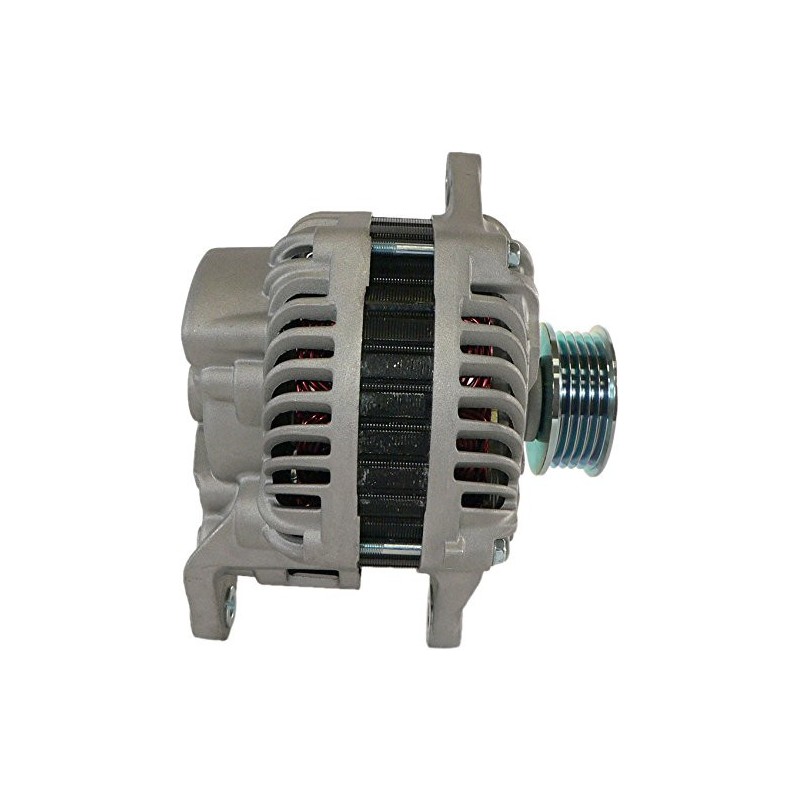

Alternator replacing MITSUBISHI A3TG2391 / A3TG2391ZC / SUBARU 23700-AA55A
Alternator NEW replacing MITSUBISHI A3TG2391 / A3TG2391ZC / SUBARU 23700-AA55A /DRA0655
fitsSUBARU Legacy / Outback 2.5 essence
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 110 | |
| Insulated return | Non | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 8,50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13,00 |
| E | Belt. adj. brackethole pos. | 60 |
| C | Mount. bracket dist | 80,00 |
| H | Pulley dia. | 55,00 |
| A | Pulley dist. | 45,00 |
| i | Grooves/pulley | 5 |
| j | Radius | 90,00 |
| j | Radius 2 | 85,00 |
| k | Position B + | M8x1.25 |
| n | Rotation | CW |

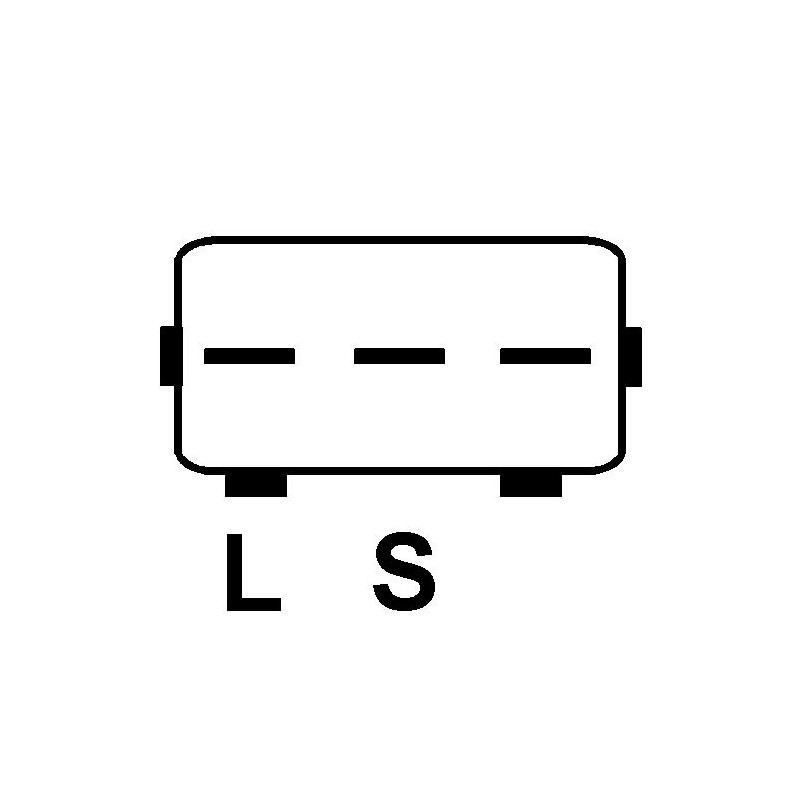

| o | Plug no. 1 | PL85 |
| G | Belt. adj. bracket hole 2 2 | 60 |
| R | Total length mm | 169,1 |
| Un fil from branchement: (auto-excitation) | Non | |
Replacing | |
|---|---|
| 23700-AA55A | SUBARU |
| A3TG2391 | MITSUBISHI |
| A3TG2391ZC | MITSUBISHI |
generic brand
Mounted on :
| Legacy | Legacy | 2.5 | Unleaded | 2003 09 | - | EJ25 | 121 | 165 | Break | 2457 | 4 | B13_ | ||
| Outback | Outback | 2.5 | Unleaded | 2003 11 | - | EJ25D | 121 | 165 | Break | 2457 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
