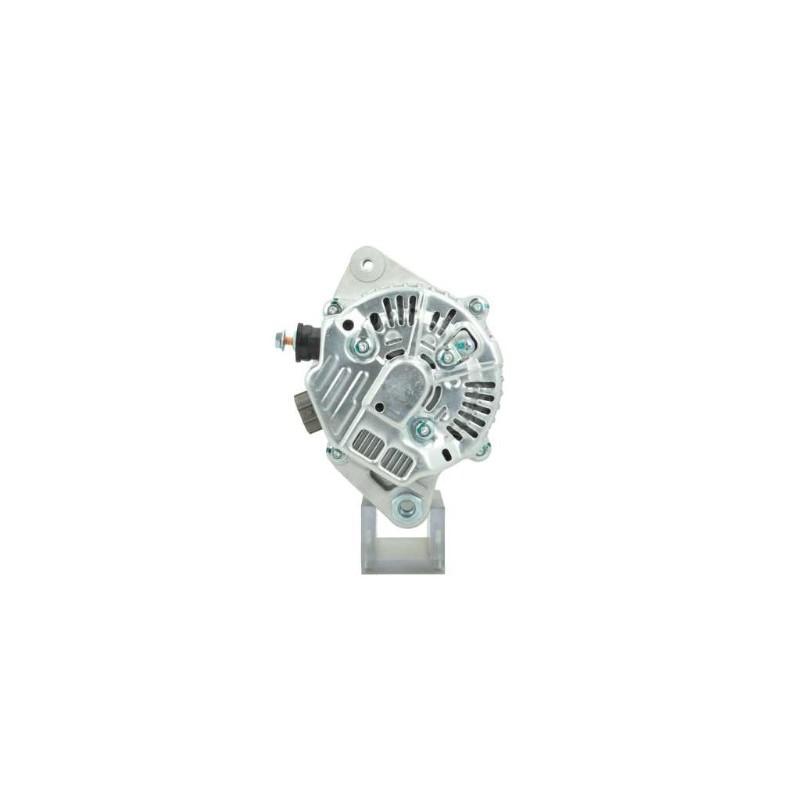

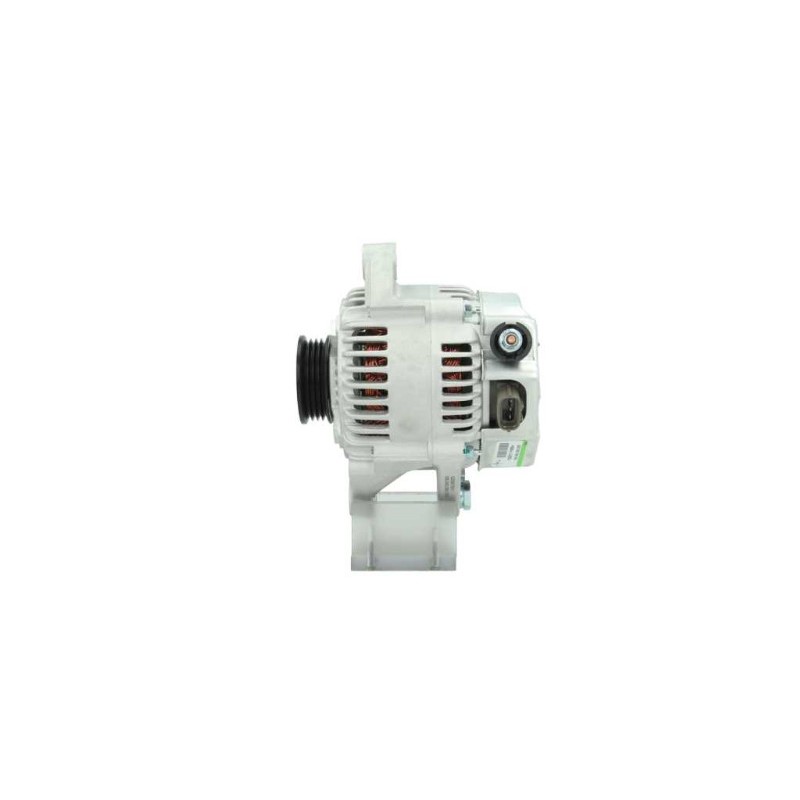

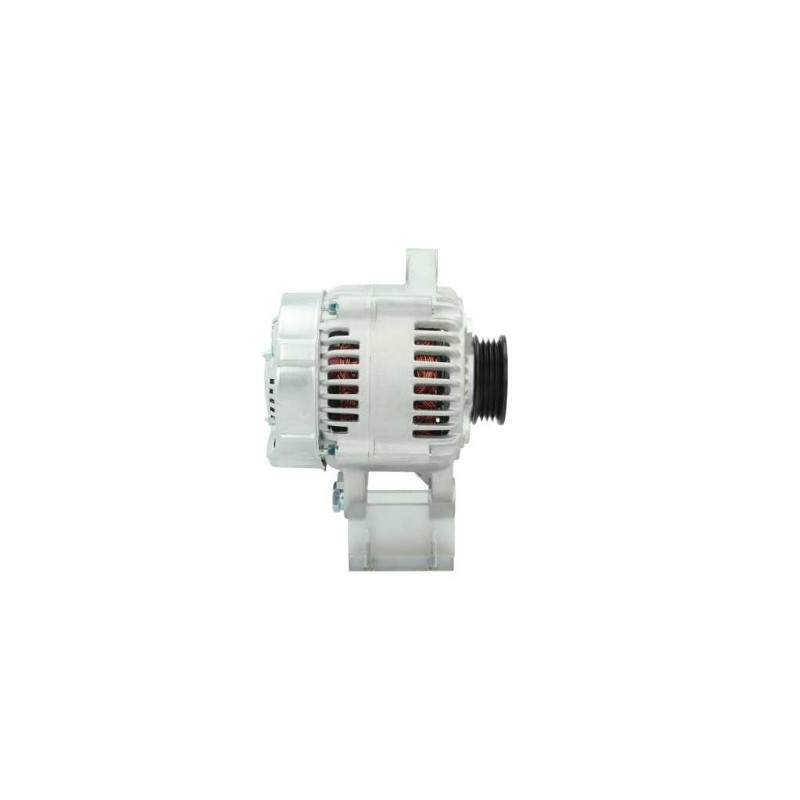

Alternator replacing 102211-1950 / 102211-1960 / 102211-9070
Alternator replacing DENSO 102211-1950 / 102211-1960 / 102211-9070 /
TOYOTA 27060-21020 / 27060-21030 / 27060-21031
0986045831 / DAN959 / DRB5831 / J5112106 / 9062106F
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |

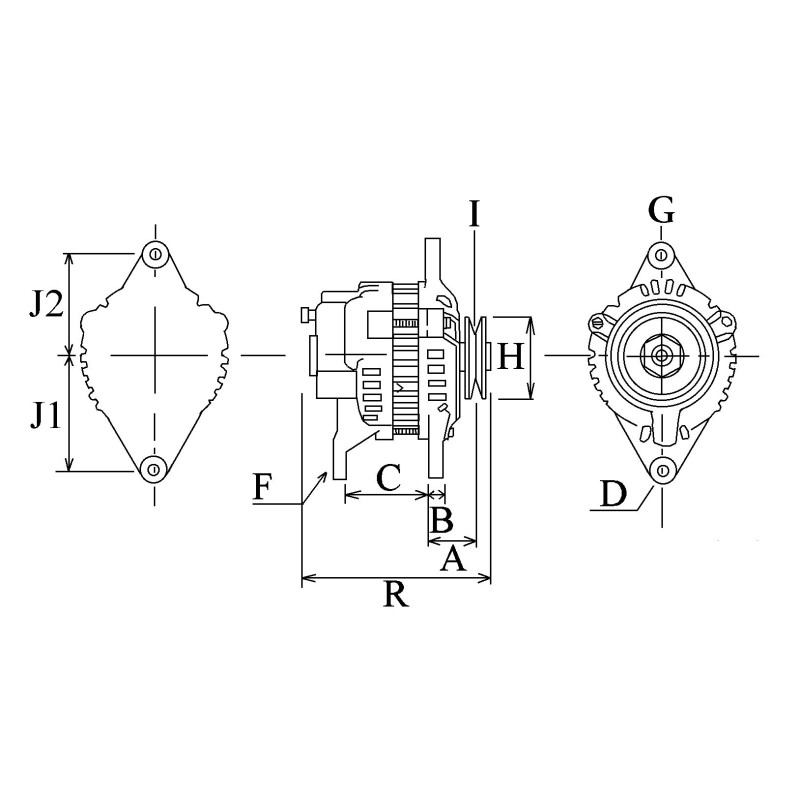

Physical Information | ||
|---|---|---|
| D | Bracket hole | 11.00 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 18.00 |
| E | Belt. adj. brackethole pos. | 3 |
| C | Mount. bracket dist | 41.60 |
| H | Pulley dia. | 60.00 |
| A | Pulley dist. | 33.00 |
| i | Grooves/pulley | 4 |
| j | Radius | 81.50 |
| j | Radius 2 | 81.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

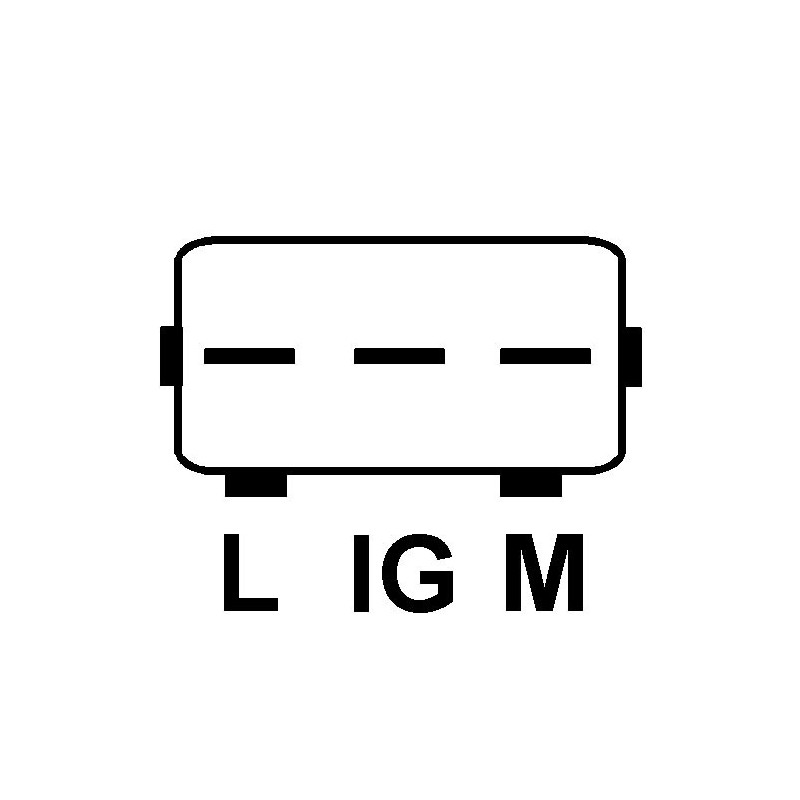

| o | Plug no. 1 | PL67 |
Replacing | |
|---|---|
| 102211-1950 | DENSO |
| 102211-1960 | DENSO |
| 102211-9070 | DENSO |
| 27060-21020 | TOYOTA |
| 27060-21030 | TOYOTA |
| 27060-21031 | TOYOTA |
| ja1595ir | HC-PARTS |
| 0986045831 |
| 1022111950 |
| 1022115930 |
| 1022119070 |
| 1022119540 |
| 195540080 |
| 2706021011 |
| 2706021030 |
| 2706021031 |
| 283871 |
| 440294 |
| 6264SP |
| 9062106F |
| 9662219195 |
| DAN959 |
| DRB5831 |
| HJA1794IR |
| J5112106 |
| JA1794IR |
| LRA01971 |
| TRA056 |
generic brand
Mounted on :
TOYOTA
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Yaris | Yaris Verso | 1.3 | Unleaded | 1999 08 | 2002 10 | 2NZ-FE | 63 | 86 | MPV | 1299 | 4 | NCP2_ | ||
| Yaris | Yaris | 1.5 | Unleaded | 2003 01 | - | 1NZ-FE | TS | 77 | 105 | Hayon | 1497 | 4 | _CP10_ | |
| Yaris | Yaris Verso | 1.3 | Unleaded | 2002 11 | - | 2NZ-FE | 62 | 84 | MPV | 1299 | 4 | NCP2_ | ||
| Yaris | Yaris | 1.3 | Unleaded | 1999 11 | - | 2NZ-FE | 16V | 63 | 86 | Hayon | 1299 | 4 | NCP10 | |
| Yaris | Yaris | 1.5 | Unleaded | 2001 04 | - | 1NZ-FE | i 16V | 78 | 106 | Hayon | 1497 | 4 | NCP13 | |
| Yaris | Yaris | 1.5 | Unleaded | 2003 03 | 2005 07 | 1NZ-FE | VVTi TS | 110 | 150 | Hayon | 1497 | 4 | _CP10 | |
| Yaris | Yaris Verso | 1.5 | Unleaded | 2000 03 | 2005 09 | 1NZ-FE | 78 | 106 | MPV | 4WD | 1497 | 4 | _NLP2_, _NCP2_ | |
| Yaris | Yaris Verso | 1.5 | Unleaded | 2000 03 | - | 1NZ-FE | 16V | 78 | 106 | MPV | 1497 | 4 | NCP21 | |
| Yaris | Yaris Verso | 1.5 | Unleaded | 2003 05 | - | 1NZ-FE | TS | 77 | 105 | MPV | 1497 | 4 | NCP2_ | |
| Yaris | Yaris | 1.5 | Unleaded | 2005 11 | - | 1NZ-FE | 80 | 109 | Hayon | 1497 | 4 |
