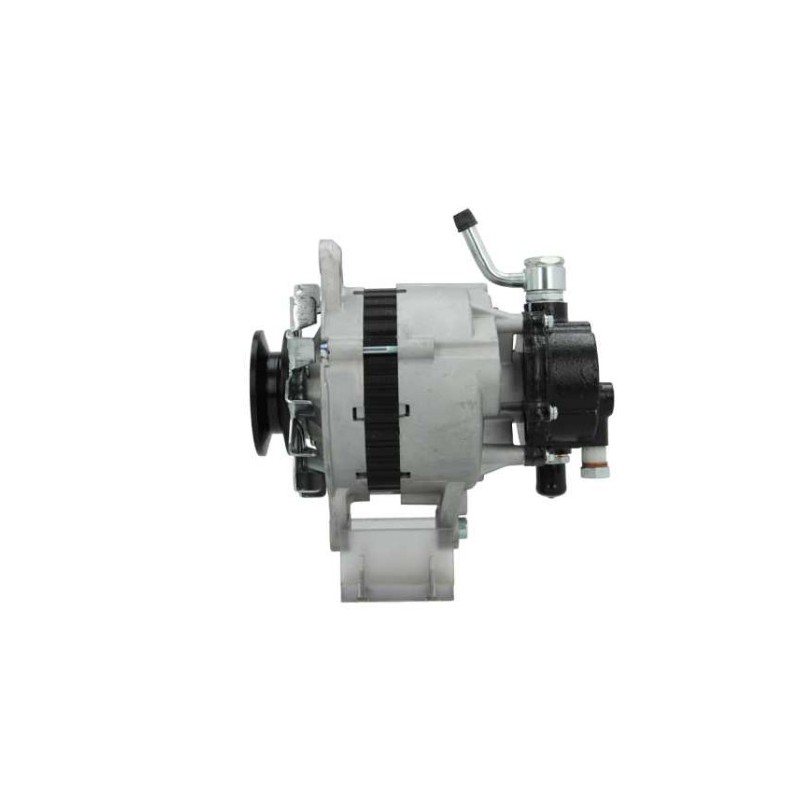

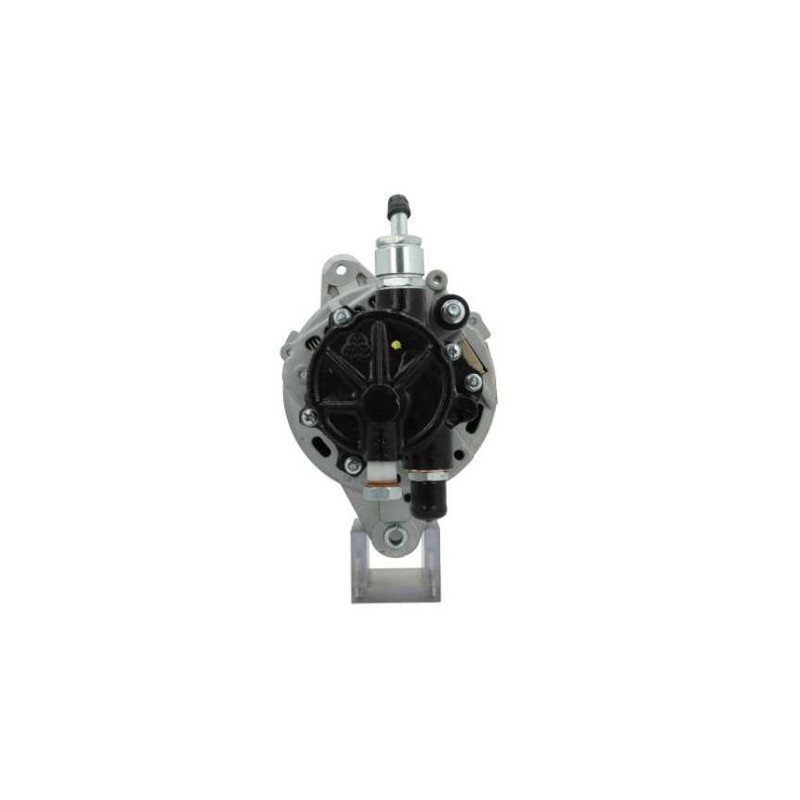

Alternator replacing A002T17783 / A002T27883 / a2t17783 / a2t27883 / md140189 / md147245
Alternator NEW replacing :
MITSUBISHI A002T17783, A002T27883, MITSUBISHI Motors MD140189, MD147245
0986042311 / DRA3194 / TA000A61901
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 65 | |

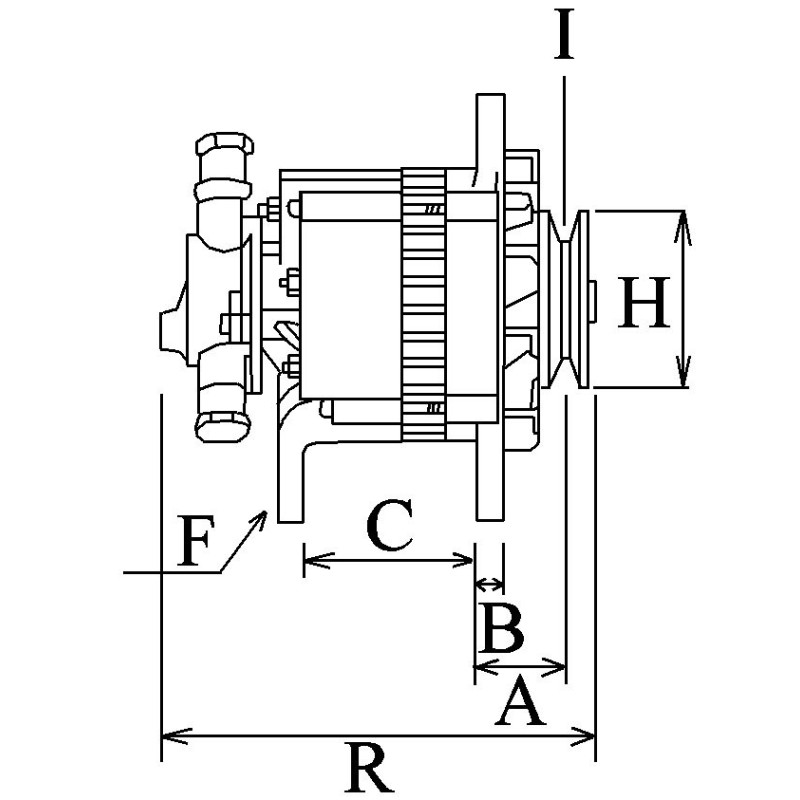

Physical Information | ||
|---|---|---|

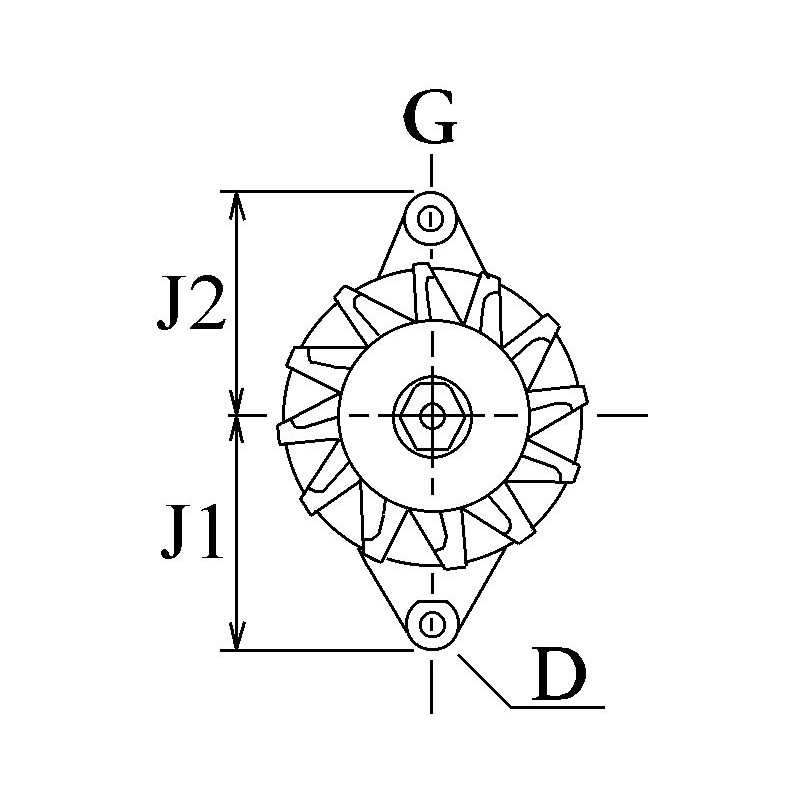

| D | Bracket hole | 8.20 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 3 |
| C | Mount. bracket dist | 54.00 |
| H | Pulley dia. | 82.00 |
| A | Pulley dist. | 44.50 |
| i | Grooves/pulley | 1 |
| j | Radius | 90.00 |
| j | Radius 2 | 87.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

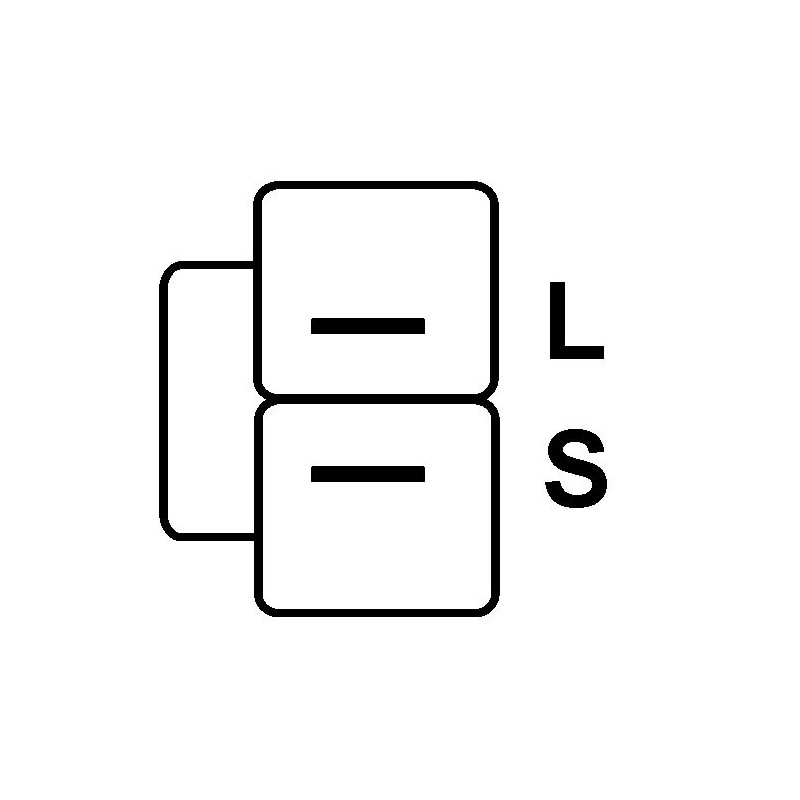

| o | Plug no. 1 | PL07 |
| R | Total length mm | 275.00 |
Replacing | |
|---|---|
| A002T17783 | MITSUBISHI |
| A002T27883 | MITSUBISHI |
| a2t17783 | MITSUBISHI |
| a2t27883 | MITSUBISHI |
| had165504 | HALLA |
| ja674ir | HC-PARTS |
| md140189 | MITSUBISHI |
| md147245 | MITSUBISHI |
| 0986042311 | BOSCH |
| 12060166 | EuroTec |
| 12060193 | EuroTec |
| 12627N | WAI |
| 12627R | WAI |
| 155809065 | PSH |
| 281701 | Elstock |
| 5359SP | Spidan |
| 56622 | EAI |
| 726389001 | HELLA |
| 933194 | EDR |
| A002T17783 | MITSUBISHI |
| A002T27783 | MITSUBISHI |
| A002T27883 | MITSUBISHI |
| A2T17783 | MITSUBISHI |
| A2T27783 | MITSUBISHI |
| A2T27883 | MITSUBISHI |
| ACA973 | ATK |
| DRA3194 | DELCO REMY |
| HJA674IR | HC |
| J5115047 | Nipparts |
| JA674IR | HC |
| JA878IR | HC |
| LRB00225 | LUCAS |
| MD140189 | MITSUBISHI |
| MD147245 | MITSUBISHI |
| TA000A61901 | VALEO |
generic brand
fitsMITSUBISHI :
| Model | litre | Tipo of Gas | Start build | End built | Tipo engine | engine | KW | CH | châssis | cm3 | Cylindres |
| L 300 | 2.5 | Diesel | 1988 11 | - | 4D56T | TD | 64 | 87 | De bus | 2477 | 4 |
| L 300 | 2.5 | Diesel | 1986 11 | 2006 02 | 4D56 | Diesel | 51 | 69 | Boîte/Trucksnette | 2477 | 4 |
| L 300 | 2.5 | Diesel | 1986 11 | - | 4D56 | Diesel V8 | 51 | 69 | De bus | 2477 | 4 |
| L 300 | 2.5 | Diesel | 1986 11 | 1994 04 | 4D56 | Diesel | 51 | 69 | Pick-up | 2477 | 4 |
| Galant | 1.8 | Diesel | 1988 11 | 1992 10 | 4D65T | TD | 55 | 75 | Hayon | 1796 | 4 |
| Pajero | 2.5 | Diesel | 1986 05 | 1989 10 | 4D56T | TD | 62 | 84 | Décapotable | 2477 | 4 |
| Pajero | 2.5 | Diesel | 1989 11 | 1990 11 | 4D56T | TD | 70 | 95 | 2477 | 4 | |
| Pajero | 2.5 | Diesel | 1989 11 | 1990 11 | 4D56T | TD | 70 | 95 | 2477 | 4 | |
| Pajero | 2.5 | Diesel | 1986 05 | 1989 10 | 4D56T | TD | 62 | 84 | Décapotable | 2477 | 4 |
| Pajero | 2.5 | Diesel | 1990 01 | 1991 12 | 4D56T | TD | 64 | 87 | 2477 | 4 | |
| Pajero | 2.5 | Diesel | 1990 01 | 1991 12 | 4D56T | TD | 64 | 87 | 2477 | 4 | |
| Pajero | 2.5 | Diesel | 1989 11 | 1990 11 | 4D56T | TD | 70 | 95 | Décapotable | 2477 | 4 |
| Pajero | 2.5 | Diesel | 1990 12 | 1999 10 | 4D56TD | TD | 73 | 99 | 2477 | 4 | |
| Pajero | 2.5 | Diesel | 1989 11 | 1990 11 | 4D56T | TD | 70 | 95 | Décapotable | 2477 | 4 |
| Pajero | 2.5 | Diesel | 1990 12 | 2000 04 | 4D56TD | TD | 73 | 99 | Décapotable | 2477 | 4 |
| Shogun | 2.5 | Diesel | 1986 06 | 1996 12 | 4D56 | TD | 62 | 84 | 2477 | 4 |
NO CORE EXCHANGE NEEDED
Two Years Warranty
