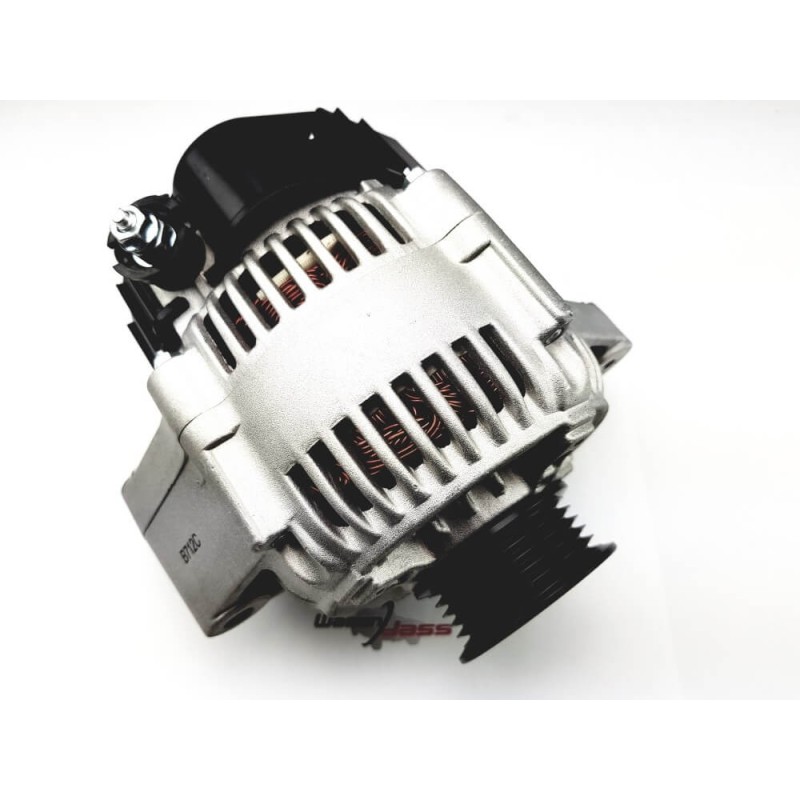

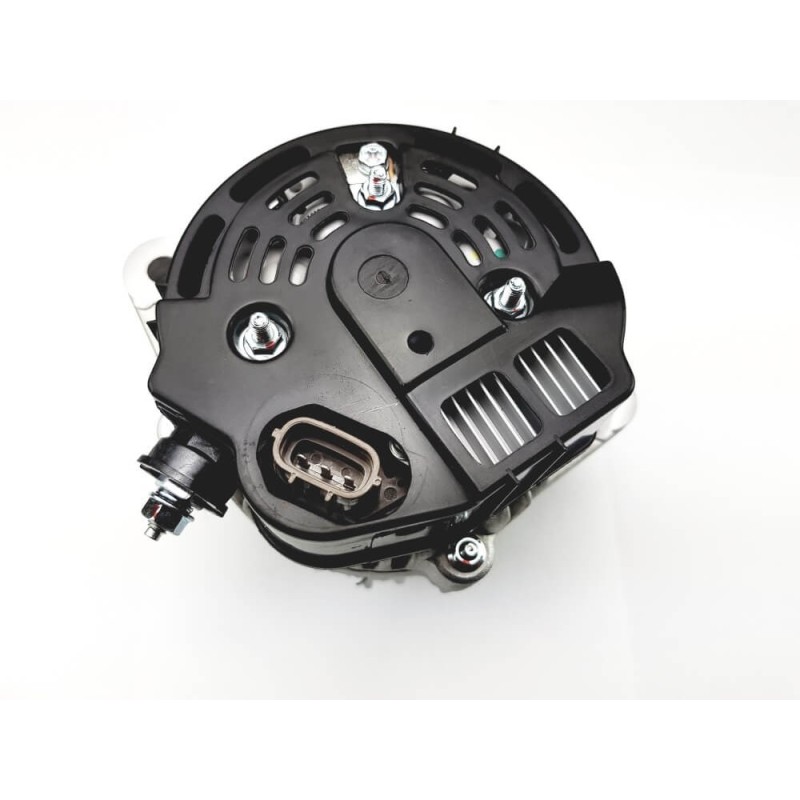

Alternator replacing DENSO 101211-4420 / 101211-4161 / 101211-4160

Information:

Rotation Cr

Amp 70

Voltage 14

D = Bracket hole 10.70

G =  Belt. adj. bracket hole M8

B =  Width/holder arm 58.00

E =  Belt. adj. brackethole pos. 5

H =  Pulley dia. 52.00

A =  Pulley dist. 89.70

Grooves/pulley 5

J =  Radius 78.00

J =  Radius 2 85.00

Position B + M6

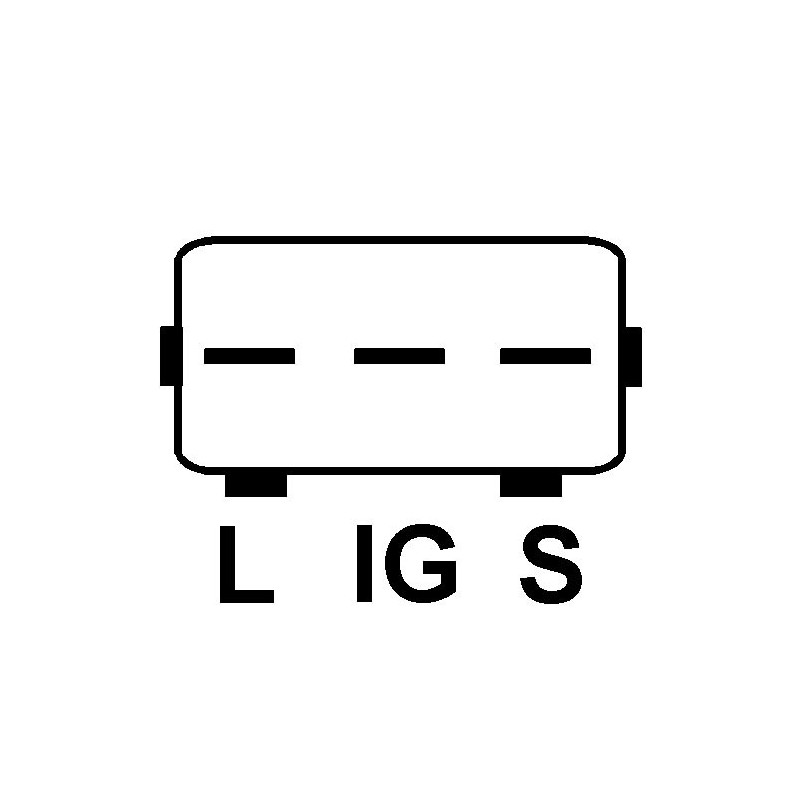

Plug no. 1 PL42

Fan If

Pulley Serpentine Pulley

Tipo regulator Ir

R =  Total length mm 163.25

= BOSCH 0986040531 / 0986043041

= DELCO REMY DRA3498 / DRB3041

= DENSO 101211-4420 / 101211-4161 / 101211-4160 / 101211-0851 / 101211-0510 / 101211-0380 / 101211-0170 / 101211-0100 / 101211-0072 / 101211-0071 / 101211-0070 / DAN953 / DAN955

= HELLA 8EL737056001

= LUCAS LRB00211

= TOYOTA 27060-16320 / 27060-16350 / 27060-74370 / 27060-74380

27060-74400 / 27060-74450 / 27060-74630 / 27060-74730

= KTR391070140 / TRA050 / J5112090 / 90295234 / 9051290F

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
