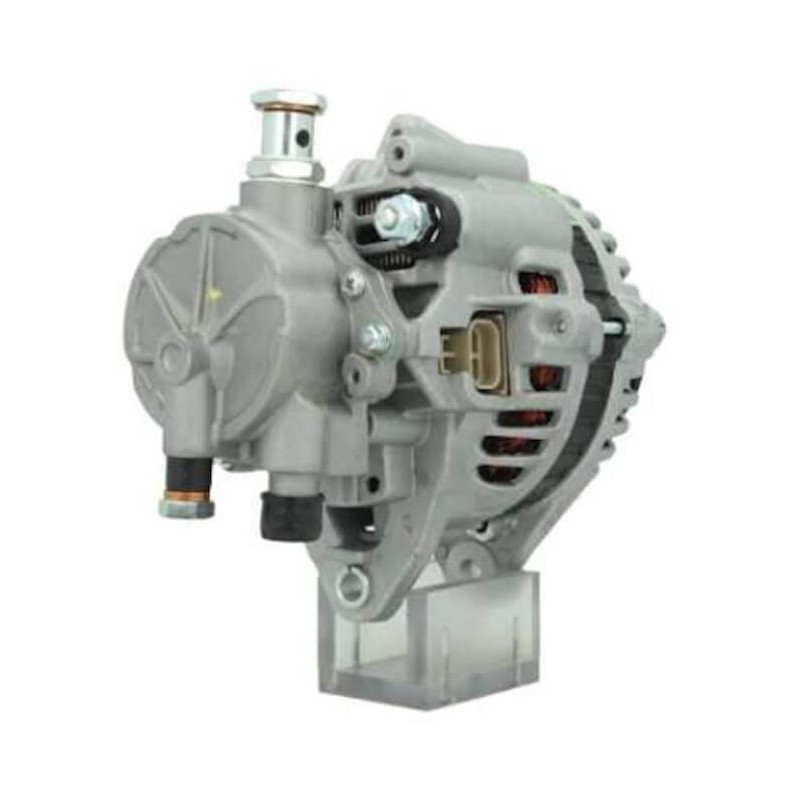

Alternator NEW replacing MITSUBISHI md366051 / md327514 / md313942 / md313940 / md306834
| A002TN1199 | Mitsubishi |
| A002TN1199A | Mitsubishi |
| A002TN1199AM | Mitsubishi |
| A002TN1199AT | Mitsubishi |
| A002TN1199ZT | Mitsubishi |
| A003T15099 | Mitsubishi |
| A003TN0299 | Mitsubishi |
| A003TN0399 | Mitsubishi |
| A003TN0999 | Mitsubishi |
| A2TN1199 | Mitsubishi |
| A2TN1199A | Mitsubishi |
| A2TN1199AM | Mitsubishi |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 75 | |

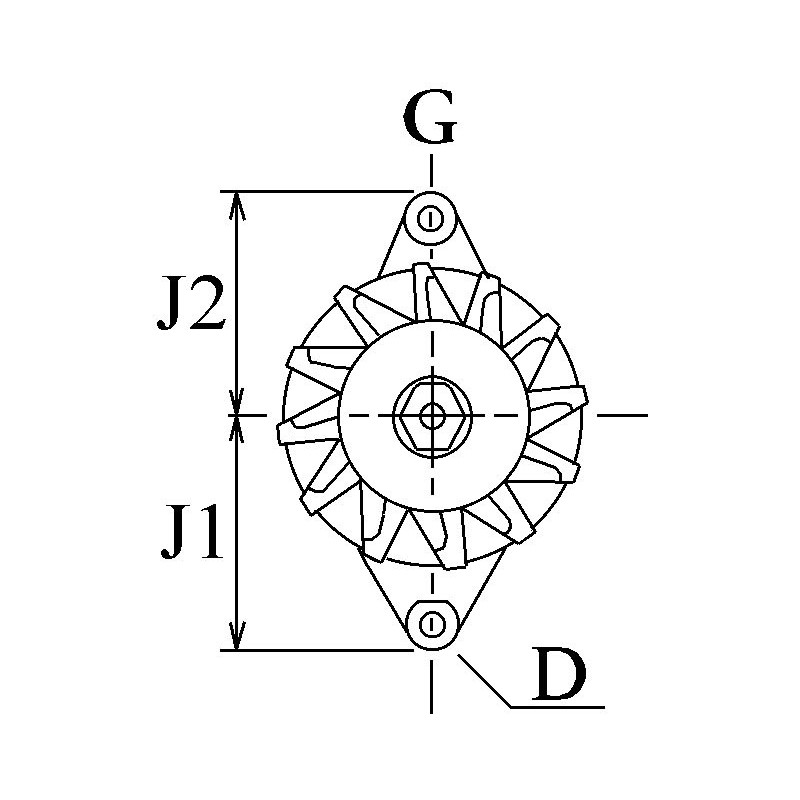

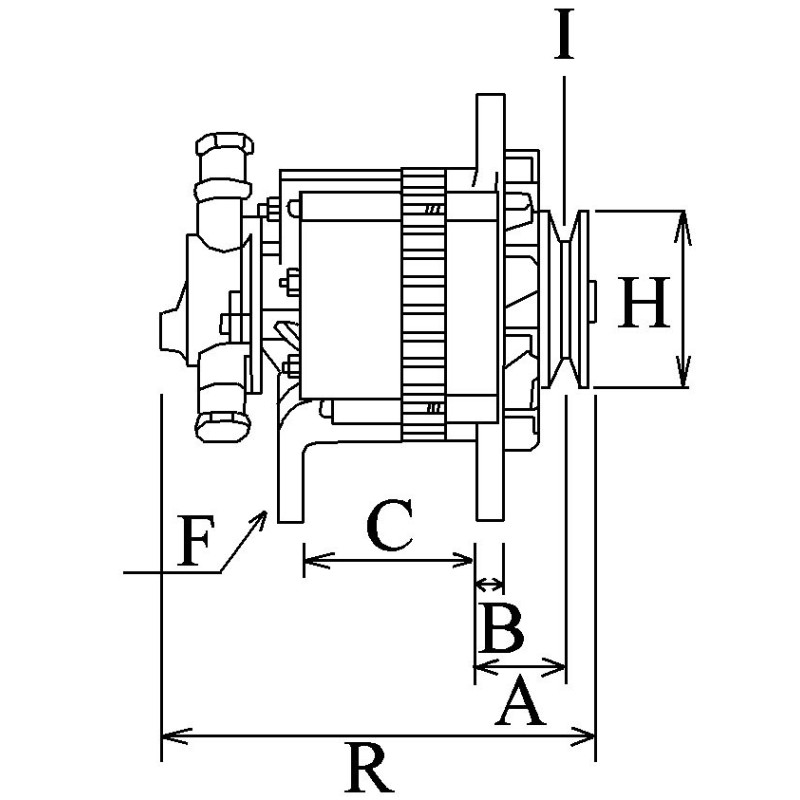

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.70 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 13.00 |
| E | Belt. adj. brackethole pos. | 4 |
| C | Mount. bracket dist | 55.10 |
| H | Pulley dia. | 80.00 |
| A | Pulley dist. | 42.00 |
| i | Grooves/pulley | 2 |
| j | Radius | 90.00 |
| j | Radius 2 | 98.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL07 |

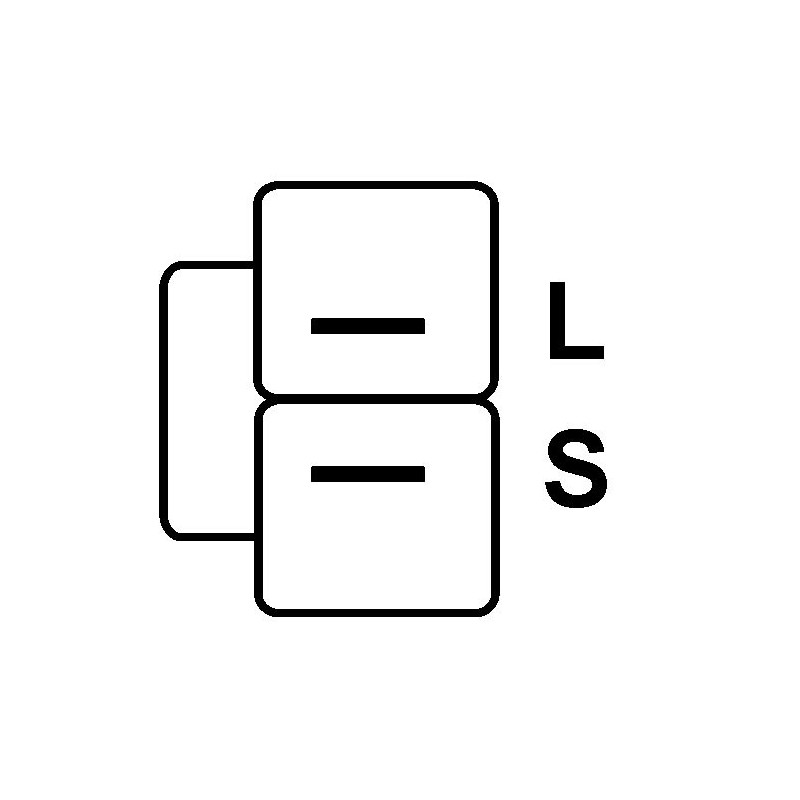

| Tipo borne | L-S | |
generic brand
replacing
| 063730015010 | Magneti Marelli |
| 063731271010 | Magneti Marelli |
| 0986042291 | Bosch ruil |
| 0986045571 | Bosch ruil |
| 112128 | Cargo |
| 155604075 | PSH |
| 282844 | Elstock |
| 283899 | Elstock |
| 284671 | Elstock |
| 287505 | Elstock |
| 437147 | Valeo |
| 437706 | Valeo |
| 600184 | Valeo |
| 61920334 | Lucas |
| 746994 | Valeo |
| A002TN1199 | Mitsubishi |
| A002TN1199A | Mitsubishi |
| A002TN1199AM | Mitsubishi |
| A002TN1199AT | Mitsubishi |
| A002TN1199ZT | Mitsubishi |
| A003T15099 | Mitsubishi |
| A003TN0299 | Mitsubishi |
| A003TN0399 | Mitsubishi |
| A003TN0999 | Mitsubishi |
| A2TN1199 | Mitsubishi |
| A2TN1199A | Mitsubishi |
| A2TN1199AM | Mitsubishi |
| A2TN1199AT | Mitsubishi |
| A2TN1199ZT | Mitsubishi |
| A3T15099 | Mitsubishi |
| A3TN0299 | Mitsubishi |
| A3TN0399 | Mitsubishi |
| A3TN0999 | Mitsubishi |
| ACA969M | ATK |
| ACA971 | ATK |
| ALT31077 | Wood Auto |
| DRA3474 | Remy |
| DRA4226 | Remy |
| F042303112 | Bosch |
| F042512983 | Bosch |
| H647992C | Valeo |
| HJA1271IR | HC |
| JA1271IR | HC |
| LRA01995 | Lucas |
| LRA02205 | Lucas |
| LRA1995 | Lucas |
| LRA2205 | Lucas |
| LRB236 | Lucas |
| LRBO236 | Lucas |
| MD306834 | Mitsubishi |
| MD313940 | Mitsubishi |
| MD313942 | Mitsubishi |
| MD327514 | Mitsubishi |
| MITA2TN1199 | Wood Auto |
| OAN10845 | Optimum |
| RNLA3TN0299 | RNL |
