Alternator replacing MITSUBISHI MD304139 / MD096859 / MD095741

Information:

Voltage 14

Amp 45

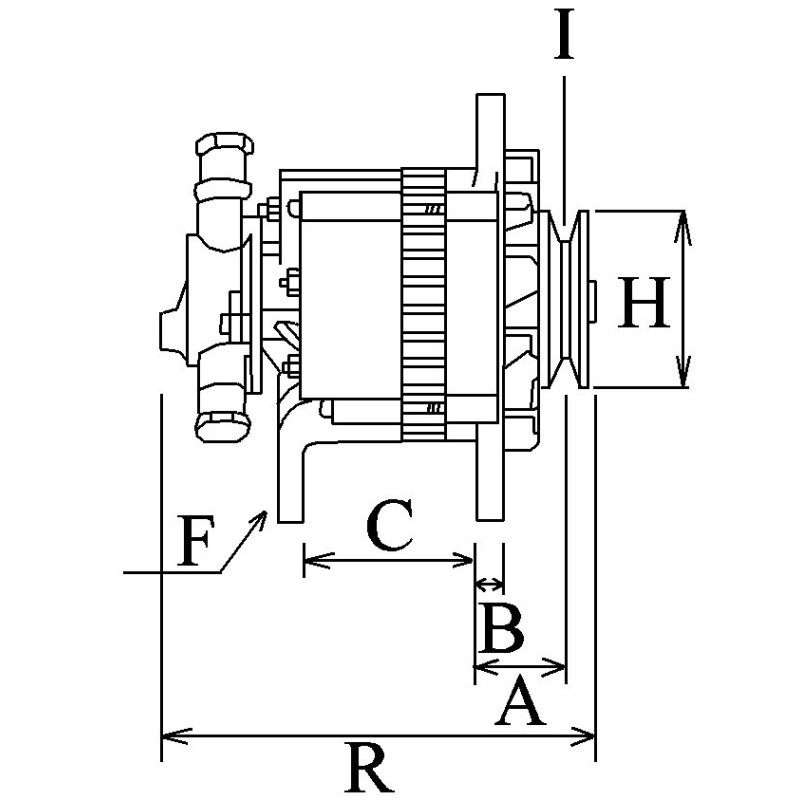

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 13.10

E = Belt. adj. brackethole pos. 4

C = Mount. bracket dist 54.20

H = Pulley dia. 95.00

A = Pulley dist. 45.30

Grooves/pulley 1

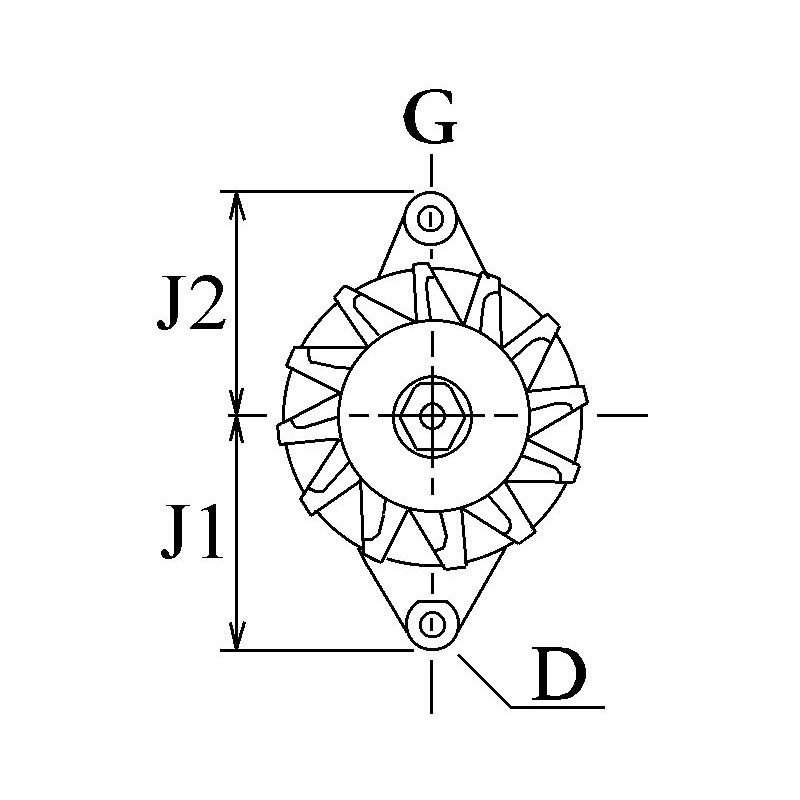

J = Radius 90.00

J = Radius 87.50

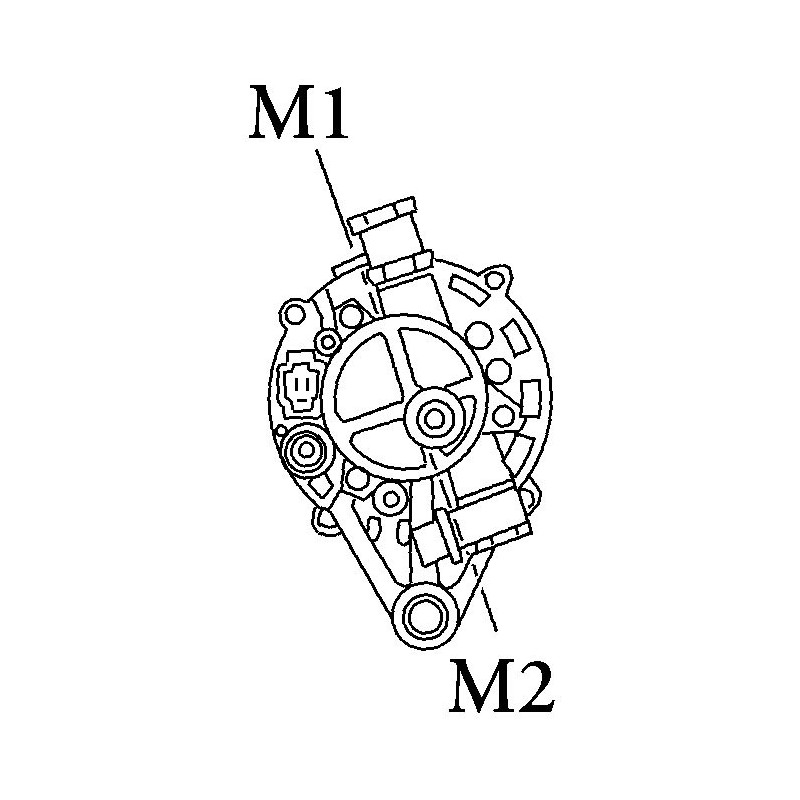

Position B + M5

Rotation Cr

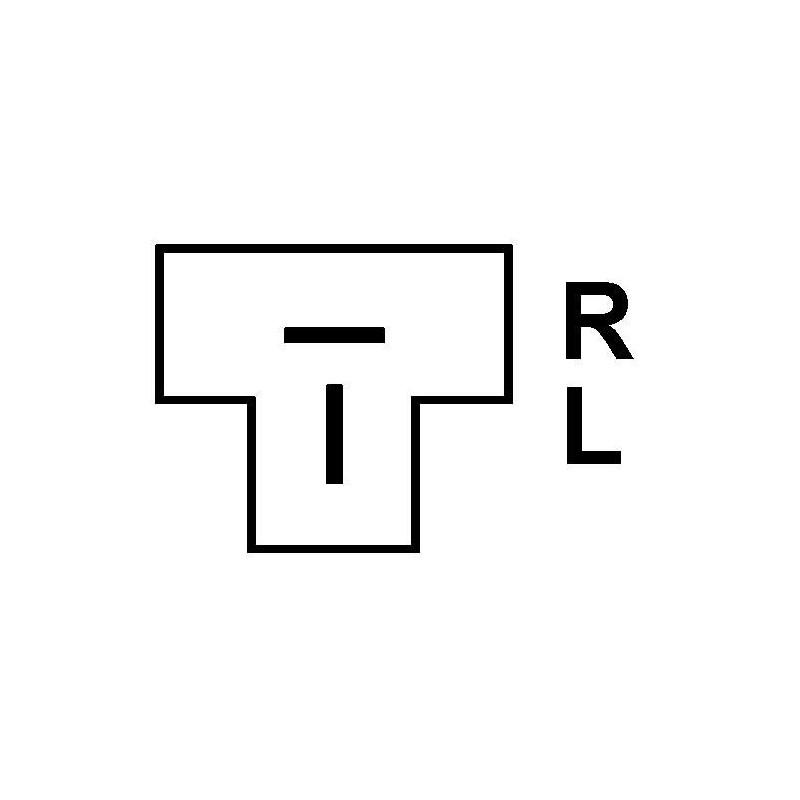

Plug no. 1 PL09

Fan Ef

Pulley Pulley

R = Total length mm 221.50

= BOSCH 0986046401 / 0986UR0066

= DELCO REMY DRA3035

= Elstock 28-0836, /28-2830

= HELLA 012427-681

=LUCAS LRA00501 / LRA00499

= MITSUBISHI MD304139 / MD096859 / MD095741
MD086016 / MD086015 / MD070310 / MD069859
MD068565 / MD067411 / MD060793 / A5T21984 / A5T15884

A5T21984B / A5T15784 / A5T 23784 / A5T15684 / A5T21684

A5T16084

= VALEO AD150413 / 2EA0550A1 / 437143

                           NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
