Alternator replacing DENSO 100211-3810 / 100211-3800

Information:

Voltage 14

Amp 50

D = Bracket hole 8.50

G = Belt. adj. bracket hole M8

B = Width/holder arm 20.00

E = Belt. adj. brackethole pos. 60

C = Mount. bracket dist 66.00

H = Pulley dia. 55.00

A = Pulley dist. 37.50

Grooves/pulley 4

J = Radius 78.00

J = Radius 76.00

Position B + M6

Rotation Cr

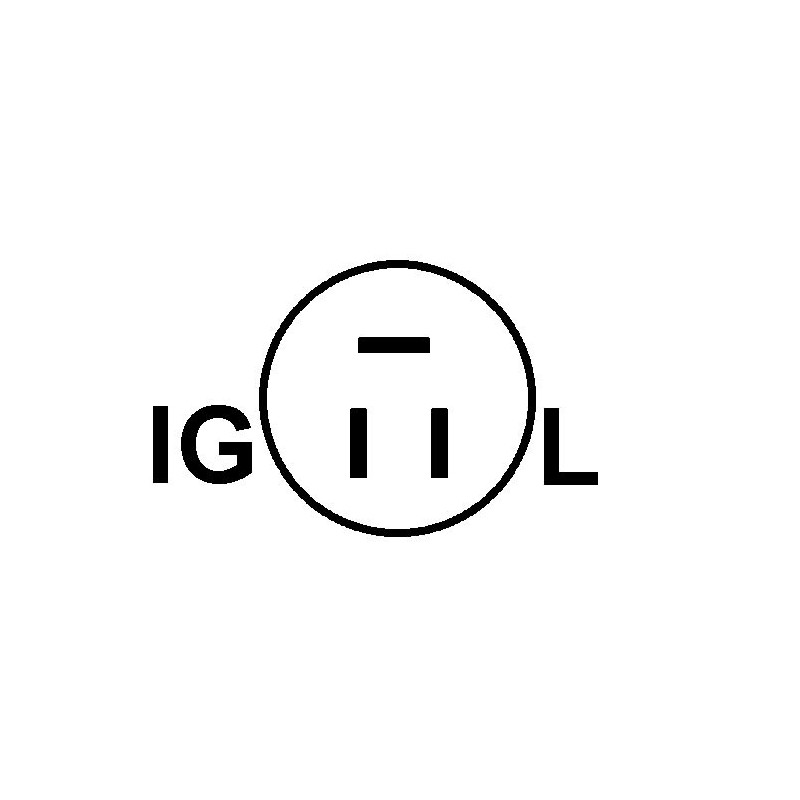

Plug no. 1 PL11

Fan If

Pulley Serpentine Pulley

R = Total length mm 160.00

generic brand

= BOSCH 9120334318 / 9120334317 / 0123115013

= DENSO 100211-3810 / 100211-3800

= MITSUBISHI A7T02591 / A7T02491B / A7T02491A / A7T02491 / A7T01991 / A7T00598

A7T00591 / A7T00191 / A5TA0791ZC / A001T01791 / A001T02991 / A001T03191

A001T03191ZC / A001T03195 / A001T03195ZC / A001T04495 / A005T07091

A005T07091A / A005T07091ZC / A005TA0791AC / A005TA0791ZC

= SUZUKI 31400-50G10 / 31400-60a00 / 31400-60a10 / 31400-60a11 / 31400-60a20

31400-60a21 / 31400-60ac0 / 31400-60ac1 / 31400-60b30 / 31400-60b31

31400-60b50 / 31400-60e10 / 31400-60e11 / 31400-71c10 / 31400-71c20

31400-71c30 / 31400-86520 / 31400-86521

                         NO CORE EXCHANGE NEEDED

                                           TWO YEARS WARRANTY
