Alternator replacing DENSO 100211-2360 / 100211-2290 / 100211-2231

Information:

Voltage 14

Amp 60

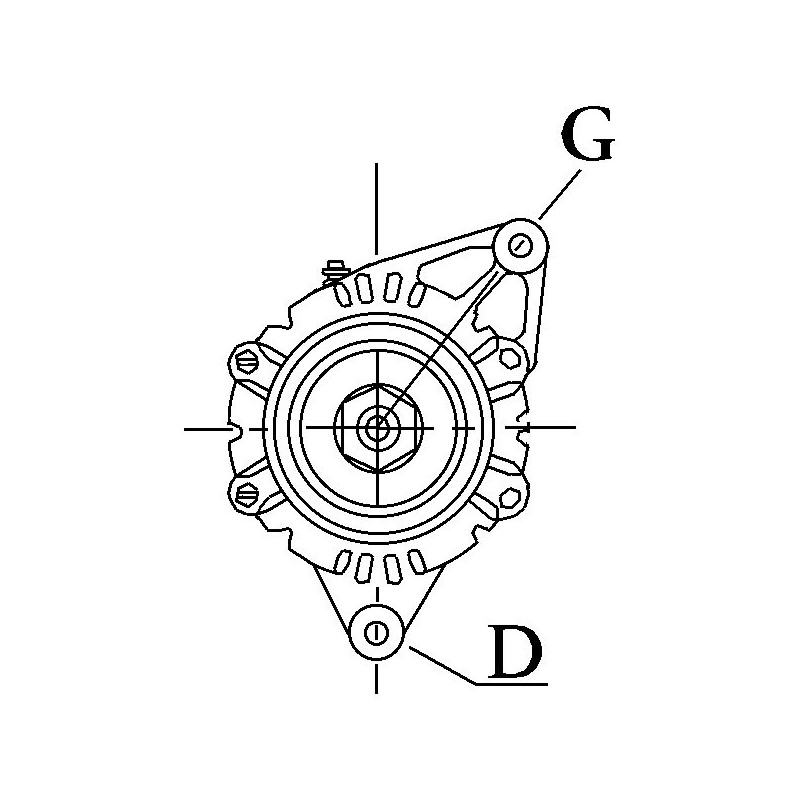

D = Bracket hole 10.25

G = Belt. adj. bracket hole M8

B = Width/holder arm 58.00

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 56.00

A = Pulley dist. 92.25

Grooves/pulley 4

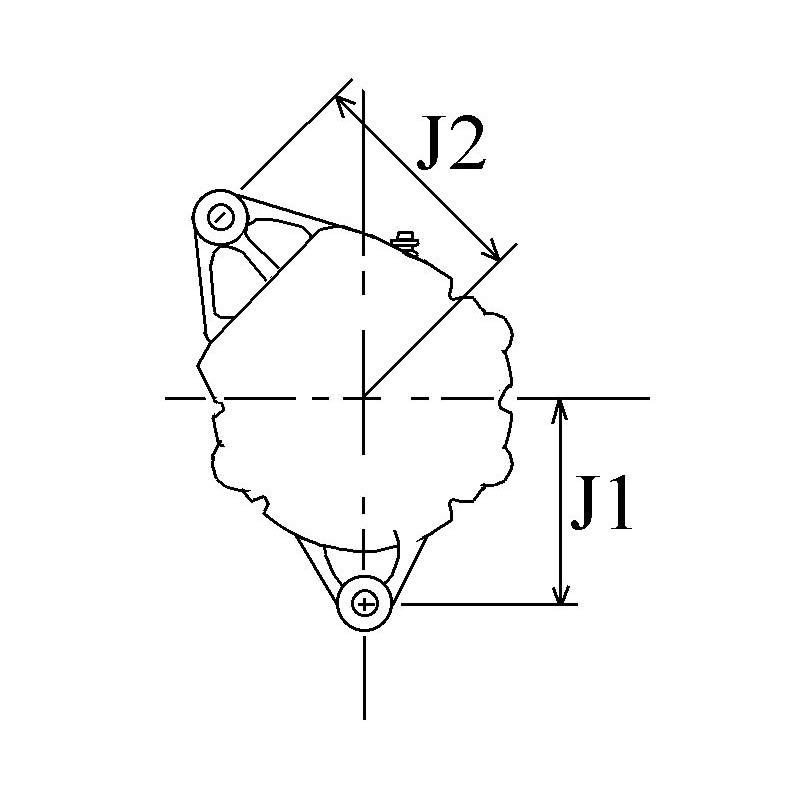

J = Radius 89.25

J = Radius 92.75

Position B + M6

Rotation Cr

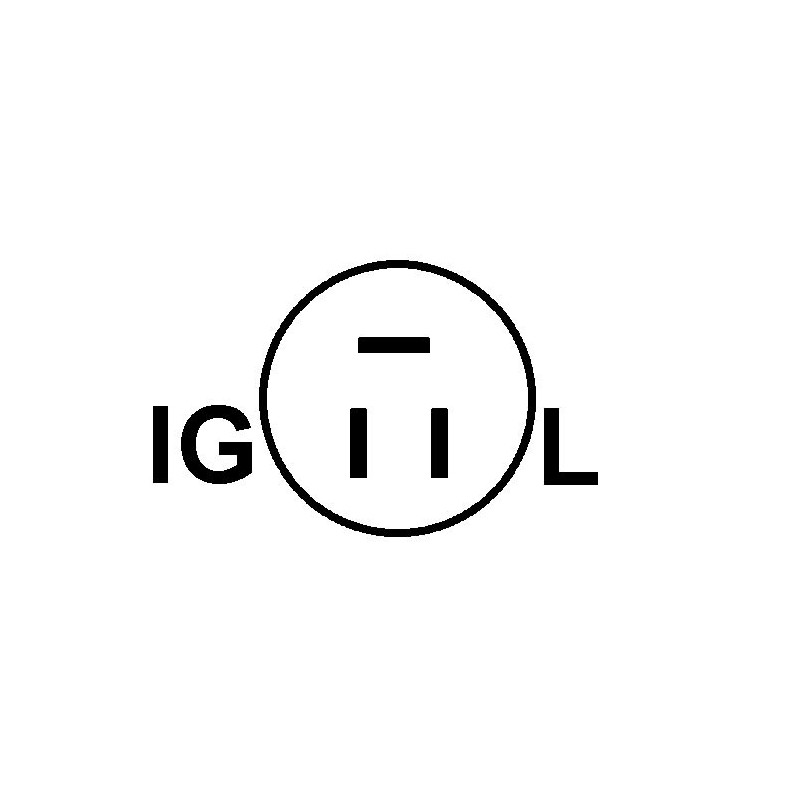

Plug no. 1 PL11

Fan If

Pulley Serpentine Pulley

R = Total length mm 166.50

= DENSO 100211-2360 / 100211-2290 / 100211-2231 / 100211-2230 100211-2221 / 100211-1331 / 100211-1330 / 100211-2291

= ISUZU 8-94137345-2 / 8941566720 / 8941566721

8941733341 / 8944139970

= OPEL 94413997

                  NO CORE EXCHANGE NEEDED E

                                    TWO YEARS WARRANTY
