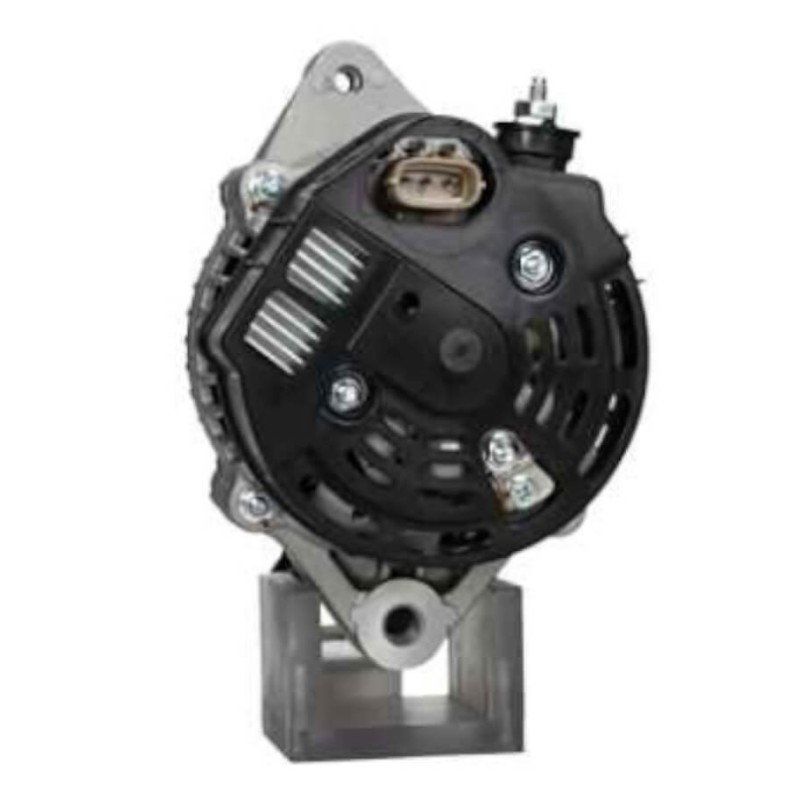

Alternator replacing 100213-2380 / ISUZU 8911536690 / 38522262F
| 0986044501 | Bosch ruil | |
| 1002132380 | Denso | |
| 115752 | Cargo | |
| 135701090 | PSH | |
| 284664 | Elstock | |
| 38522262F | Chrysler | |
| 3852226F | Chrysler | |
| 3852262F | Opel | |
| 6204050 | Opel | |
| 6204162 | Opel | |
| 8911536690 | Isuzu | |
| 91153669 | Opel | |
| 93175822 | Opel | |
| 93175969 | Opel | |
| 9512806 | Opel |
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |

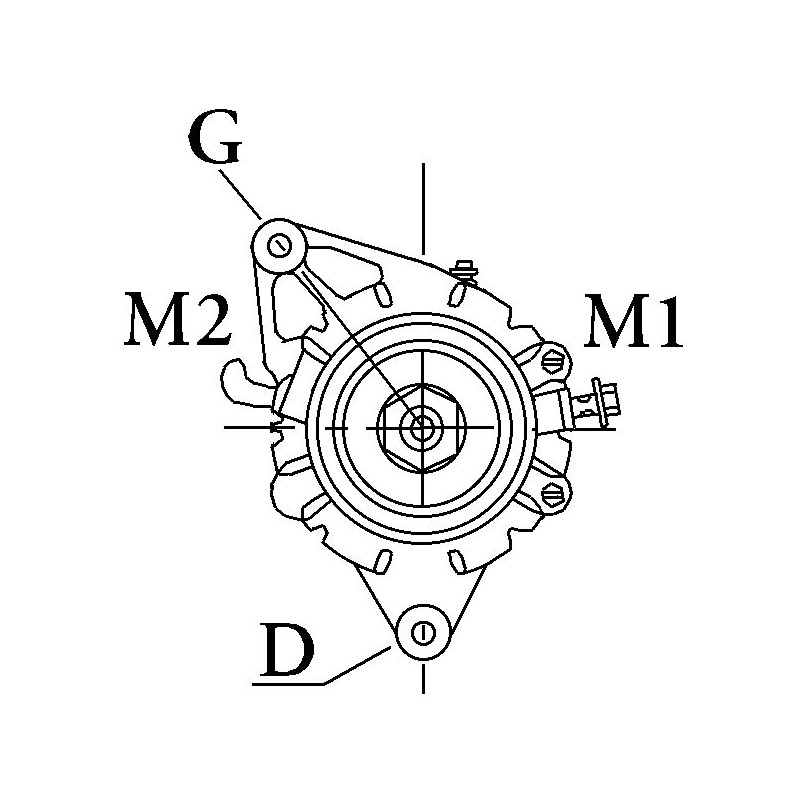

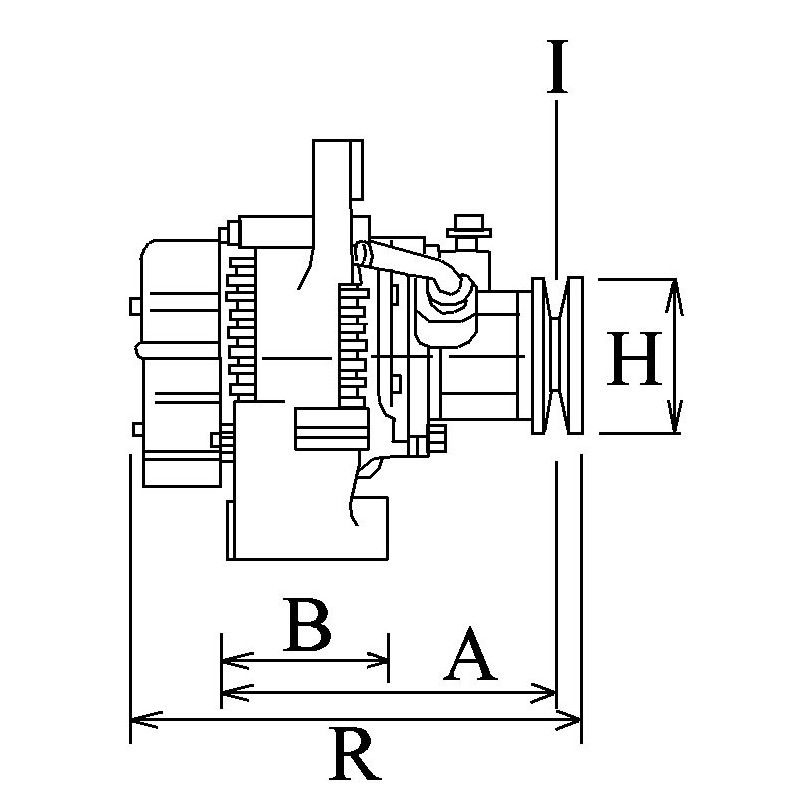

Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | M8 |
| B | Width/holder arm | 69.80 |
| E | Belt. adj. brackethole pos. | 1 |
| H | Pulley dia. | 57.50 |
| A | Pulley dist. | 148.80 |
| i | Grooves/pulley | 8 |

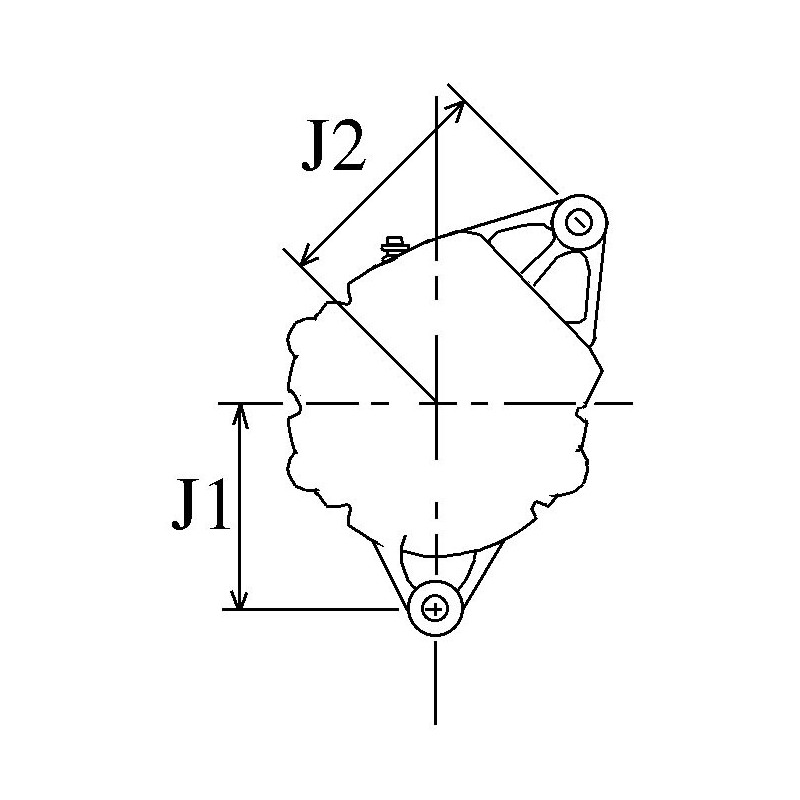

| j | Radius | 80.00 |
| j | Radius 2 | 84.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

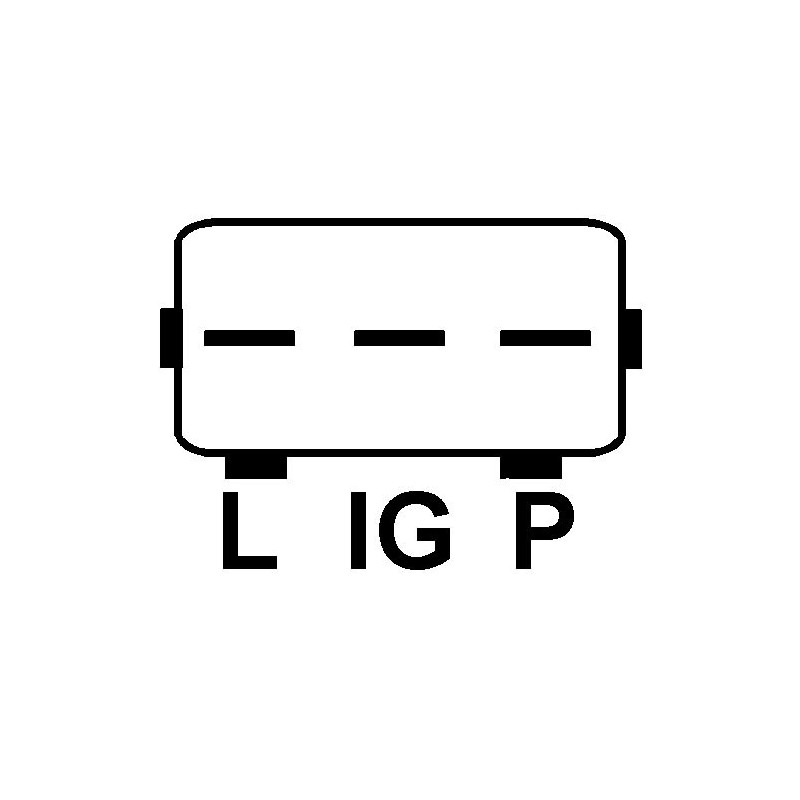

| o | Plug no. 1 | PL128 |
| R | Total length mm | 234.00 |
Replacing Reference ci fromssous | |
|---|---|
| 100213-2380 | DENSO |
| 3.852.2262F | VM |
| 38522262F | CHRYSLER |
| 6204050 | OPEL |
| 8911536690 | ISUZU |
| 91153669 | OPEL |
Mounted on :
OPEL
| Frontera | Frontera A | 2.5 | Diesel | 1996 09 | 1998 10 | 25TDS | TDS | 85 | 115 | Décapotable | Sport | 2499 | 4 | 5MWL4 | |||
| Frontera | Frontera A | 2.5 | Diesel | 1996 09 | 1998 10 | 25TDS | TDS | 85 | 115 | 2499 | 4 | 5MWL4 |
VAUXHALL
| Frontera | Frontera A | 2.5 | Diesel | 1996 09 | 1998 10 | 25TDS | TD | 85 | 115 | Décapotable | 4x4 Sport | 2499 | 4 | |||
| Frontera | Frontera A | 2.5 | Diesel | 1991 11 | 1998 06 | 25TDS | TD | 85 | 115 | 4x4 Long | 2499 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
