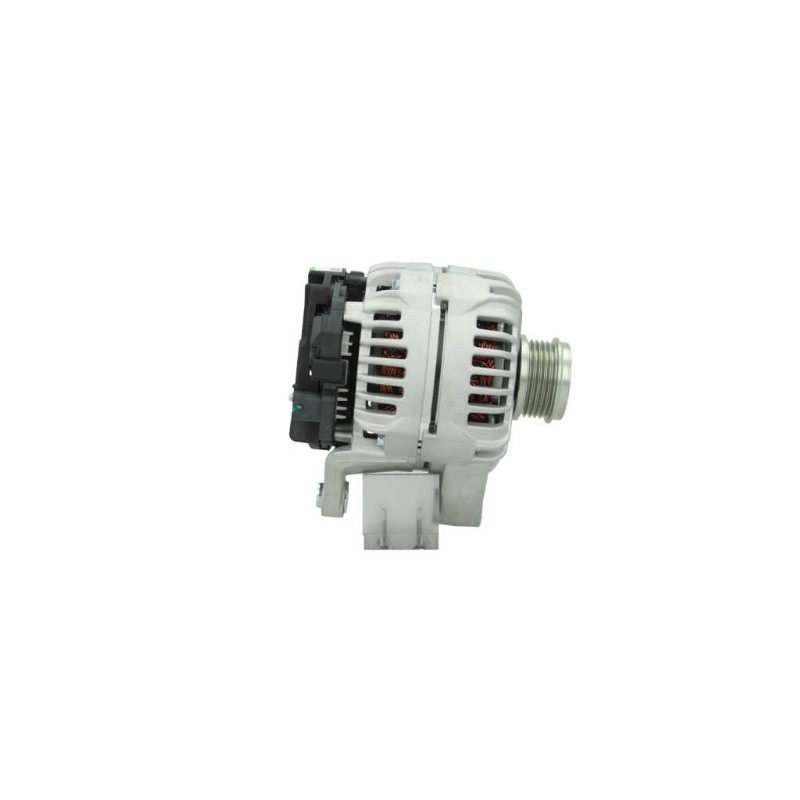

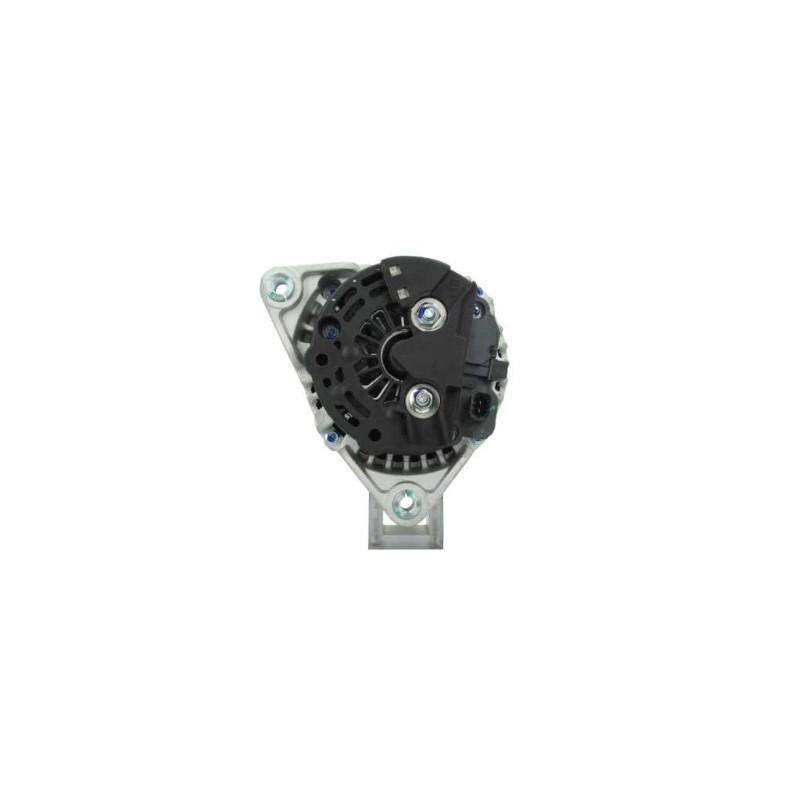

Alternator replacing BOSCH 0124425085 / OPEL 1202194 / 1202324
Alternator NEW replacing BOSCH 0124425085 / 0986082370
OPEL 1202194 / 1202324 / 13266809 / 6204144 / 95515954
DRA1039 / LRA03611
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 100 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 33.00 |
| E | Belt. adj. brackethole pos. | 50 |
| C | Mount. bracket dist | 59.00 |
| H | Pulley dia. | 53.50 |
| A | Pulley dist. | 55.00 |
| i | Grooves/pulley | 5 |
| k | Position B + | M8 |
| n | Rotation | CW |

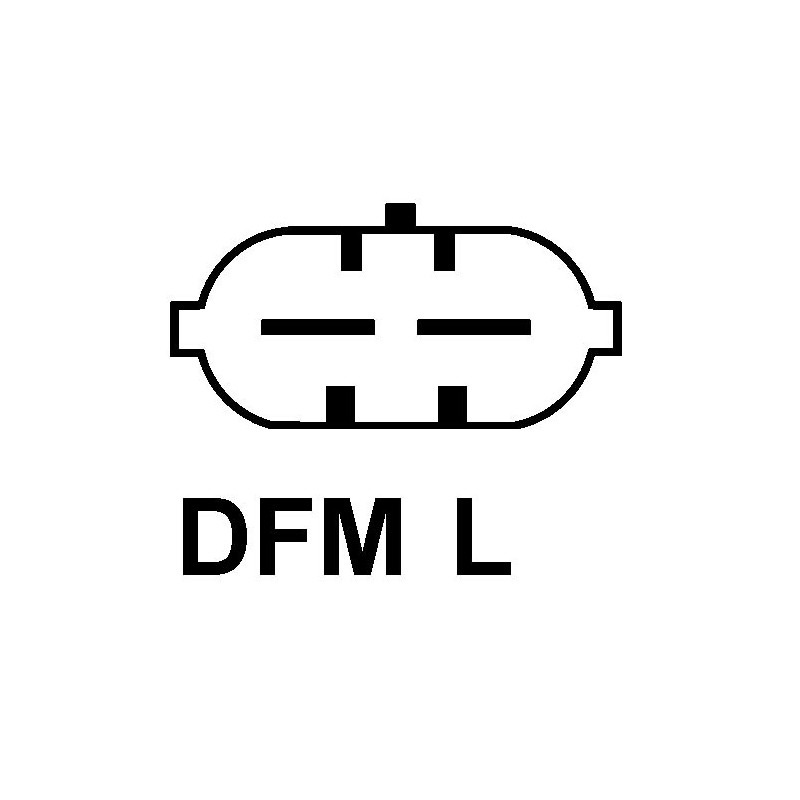

| o | Plug no. 1 | PL75 |
| R | Total length mm | 188.50 |
Generic brand
Replacing | |
|---|---|
| 0124425085 | BOSCH |
| 1202194 | OPEL |
| 1202324 | OPEL |
| 13266809 | OPEL |
| 6204144 | OPEL |
| 95515954 | OPEL |
Mounted on :
OPEL/VAUXHALL
| Corsa | Corsa D | 1.4 | Unleaded | 2010 06 | A14XER | 74 | 100 | Hayon | 1398 | 4 | F08, F68 | |
| Corsa | Corsa D | 1.4 | Diesel | 2009 09 | Z14XEL | 64 | 87 | Hayon | Ecoflex | 1364 | 4 | F08.., F68.. |
| Meriva | Meriva B | 1.4 | Bi-Fuel | 2011 06 | B14NEL | 88 | 120 | MPV | 1364 | 4 | ||
| Meriva | Meriva B | 1.4 | Unleaded | 2010 06 | A14XER | 74 | 100 | MPV | Ecotec | 1398 | 4 | |
| Meriva | Meriva B | 1.4 | Unleaded | 2010 06 | B14NET | 103 | 140 | MPV | Ecotec | 1364 | 4 | |
| Meriva | Meriva B | 1.4 | Unleaded | 2010 06 | A14NET | 103 | 140 | MPV | Ecotec | 1364 | 4 | |
| Meriva | Meriva B | 1.4 | Unleaded | 2010 06 | B14XER | 74 | 100 | MPV | Ecotec | 1398 | 4 | |
| Meriva | Meriva B | 1.4 | Bi-Fuel | 2011 06 | A14NEL | 88 | 120 | MPV | 1364 | 4 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
