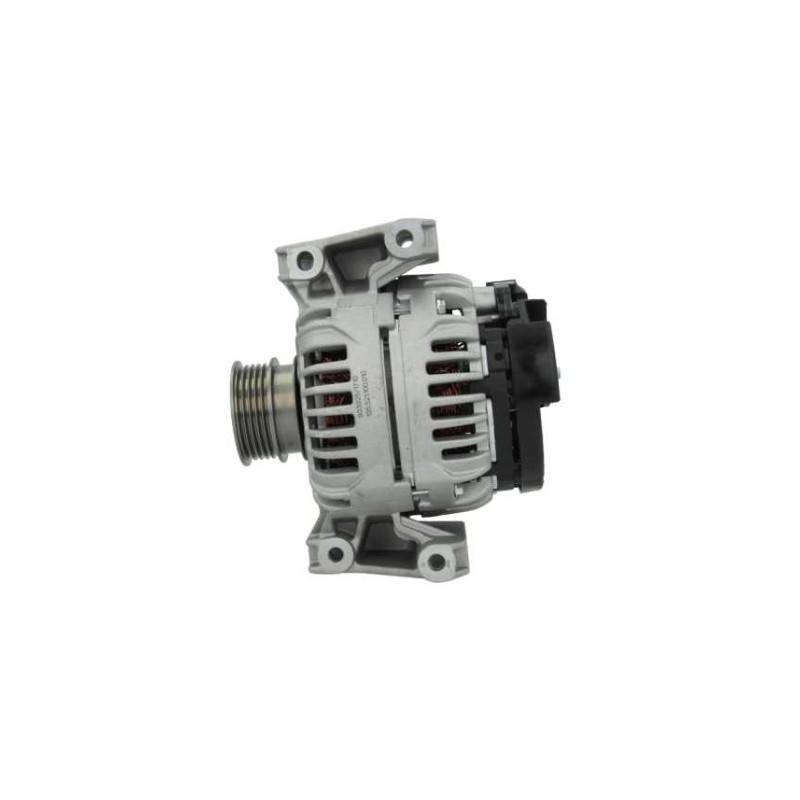

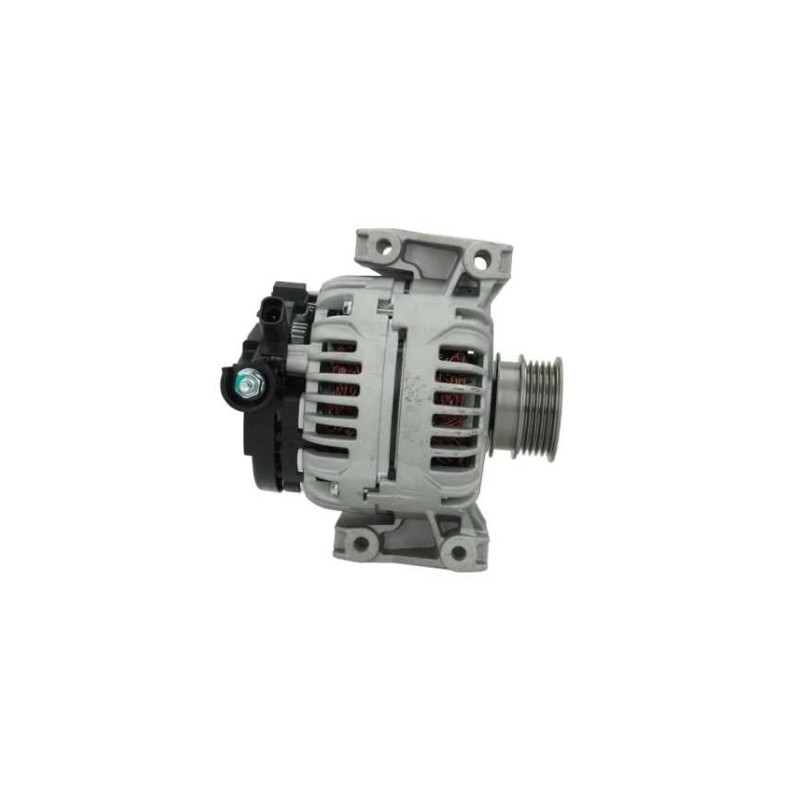

Alternator replacing 0124415009 / 0124415025 / 0124415026 / 0124425019
Alternator NEW replacing
DAF 1516500R
GM 13229987
OPEL 24-430-295, 24-455-913, 55-556-065, 62-04-146, 62-04-184, 6204112, 91-52-247, 91-93-114, 91-99-275, 91-99-575, 93-172-075, 93-175-810, 93-175-958, 93-179-322, 93-179-323, 93-184-052, 95-620-04
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp. | 120 | |
Physical Information | ||
|---|---|---|
| A | Pulley dist. | 32.00 |
| B | Width/holder arm | 79.50 |
| C | Mount. bracket dist | 57.00 |
| D | Bracket hole | 8.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | 9.30 |
| H | Pulley dia. | 56.80 |
| I | Grooves/pulley | 5 |
| J | Radius | 81.00 |
| J | Radius 2 | 85.00 |
| K | Position B + | M8 |
| K | B+ position en min. | 15 |
| N | Rotation | Cr |
| O | Plug n° 1 | PL75 |
| R | Total length mm | 186.00 |
generic brand
Replacing :
BOSCH 0124415009, 0124415025, 0124415026, 0124425019
DAF 1516500R
GM 13229987
OPEL 24-430-295, 24-455-913, 55-556-065, 62-04-146, 62-04-184, 6204112, 91-52-247, 91-93-114, 91-99-275, 91-99-575, 93-172-075, 93-175-810, 93-175-958, 93-179-322, 93-179-323, 93-184-052, 95-620-04
DAF 1516500R
GM 13229987
OPEL 24-430-295, 24-455-913, 55-556-065, 62-04-146, 62-04-184, 6204112, 91-52-247, 91-93-114, 91-99-275, 91-99-575, 93-172-075, 93-175-810, 93-175-958, 93-179-322, 93-179-323, 93-184-052, 95-620-04
Mounted on :
| Brand | Model | Tipo | Year |
| CHEVROLET | Vectra 2.2 | 04.2002-04.2004 | |
| HOLDEN | Astra 2.2 i | 09.2000-07.2004 | |
| HOLDEN | Zafira 2.2 | [Z22SE] | 07.2000-02.2006 |
| HOLDEN | Zafira 2.2 i | 06.2001-02.2006 | |
| OPEL | Astra G 2.2 16V | [Z22SE] | 06.2000-01.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 09.2000-05.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-10.2005 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-07.2004 |
| OPEL | Astra G 2.2 16V | [Z22SE] | 03.2001-01.2005 |
| OPEL | Astra G 2.2 i 16V | [Z22SE] | 06.2000-01.2005 |
| OPEL | Astra G 2.2 i 16V | [Z22SE] | 09.2000-05.2005 |
| OPEL | Astra G 2.2 i 16V | [Z22SE] | 03.2001-10.2005 |
| OPEL | Astra G 2.2 i 16V | [Z22SE] | 03.2001-07.2004 |
| OPEL | Astra G 2.2 i 16V | [Z22SE] | 03.2001-01.2005 |
| OPEL | Signum 2.0 Turbo | [Z20NET] | 01/05/03 |
| OPEL | Signum 2.2 | [Z22YH] | 01/05/03 |
| OPEL | Speedster 2.0 Turbo | [Z20LET] | 01/04/03 |
| OPEL | Speedster 2.2 | [Z22SE] | 06.2000-08.2005 |
| OPEL | Speedster 2.2 i | [Z22SE] | 01/09/00 |
| OPEL | Vectra B 2.2 i 16V | [Z22SE] | 09.2000-07.2003 |
| OPEL | Vectra B 2.2 i 16V | [Z22SE] | 09.2000-04.2002 |
| OPEL | Vectra C 2.0 Turbo | [Z20NET] | 01/10/03 |
| OPEL | Vectra C 2.0 Turbo | [Z20NET] | 10.2003-08.2008 |
| OPEL | Vectra C 2.0 Turbo 16V | [Z20NET] | 01/03/03 |
| OPEL | Vectra C 2.0 Turbo 16V | [Z20NET] | 03.2003-08.2008 |
| OPEL | Vectra C 2.0 Turbo 16V GTS | [Z20NET] | 03.2003-08.2008 |
| OPEL | Vectra C 2.2 | [Z22YH] | 01/10/03 |
| OPEL | Vectra C 2.2 16V | [Z22SE] | 04.2002-12.2008 |
| OPEL | Vectra C 2.2 16V GTS | [Z22SE] | 08.2002-08.2008 |
| OPEL | Vectra C 2.2 i 16V | [Z22SE] | 01/04/02 |
| OPEL | Vectra C 2.2 i 16V | [Z22SE] | 01/08/02 |
| OPEL | Zafira A 2.2 16V | [Z22SE] | 09.2000-06.2005 |
| SAAB | 9-3 2.0 | [B207G] | 01/01/07 |
| SAAB | 9-3 2.0 | [B207M] | 01/02/09 |
| SAAB | 9-3 2.0 | [B207R] | 01/05/09 |
| SAAB | 9-3 2.0 Biopower | [B207L] | 01/05/09 |
| SAAB | 9-3 2.0 Biopower | [B207M] | 01/06/07 |
| SAAB | 9-3 2.0 Biopower | [B207M] | 01/05/09 |
| SAAB | 9-3 2.0 Turbo | [B207E] | 01/03/05 |
| SAAB | 9-3 2.0 Turbo | [B207G] | 01/01/07 |
| SAAB | 9-3 2.0 Turbo | [B207G] | 01/01/11 |
| SAAB | 9-3 2.0 Turbo | [B207M] | 01/02/09 |
| SAAB | 9-3 2.0 Turbo | [B207R] | 01/05/09 |
| SAAB | 9-3X 2.0 | [B207R] | 01/02/09 |
| SAAB | 9-3X 2.0 Biopower | [B207R] | 01/02/09 |
| VAUXHALL | Astra Mk IV 2.2 | [Z22SE] | 03.2000-08.2005 |
| VAUXHALL | Astra MK IV 2.2 16V | [Z22SE] | 03.2001-05.2005 |
| VAUXHALL | Astra MK IV 2.2 16V | [Z22SE] | 03.2001-10.2005 |
| VAUXHALL | Astra Mk IV 2.2 16V | [Z22SE] | 03.2000-08.2005 |
| VAUXHALL | Signum 2.0 i Turbo | [Z20NET] | 01/03/03 |
| VAUXHALL | Signum 2.2 i | [Z22YH] | 05.2003-05.2008 |
| VAUXHALL | Speedster 2.2 i | [Z22SE] | 01/09/00 |
| VAUXHALL | Vectra 2.0 Turbo 16V | [Z20NET] | 01/03/03 |
| VAUXHALL | Vectra 2.0 Turbo 16V | [Z20NET] | 01/10/03 |
| VAUXHALL | Vectra 2.2 | [Z22YH] | 01/10/03 |
| VAUXHALL | Vectra 2.2 i 16V | [Z22SE] | 08.1995-10.2001 |
| VAUXHALL | Vectra 2.2 i 16V | [Z22SE] | 01/09/00 |
| VAUXHALL | Vectra 2.2 i 16V | [Z22SE] | 09.2000-07.2003 |
| VAUXHALL | Vectra 2.2 i 16V | [Z22SE] | 01/04/02 |
| VAUXHALL | Vectra Mk II 2.0 Turbo 16V | [Z20NET] | 01.2000-10.2008 |
| VAUXHALL | Vectra Mk II 2.0 Turbo 16V | [Z20NET] | 10.2003-07.2008 |
| VAUXHALL | Vectra Mk II 2.0 Turbo 16V GTS | [Z20NET] | 03.2003-07.2008 |
| VAUXHALL | Vectra Mk II 2.2 16V | [Z22SE] | 01.2002-10.2008 |
| VAUXHALL | Vectra Mk II 2.2 16V GTS | [Z22SE] | 08.2002-07.2008 |
| VAUXHALL | VX 2.0 i Turbo | [Z20LET] | 04.2003-07.2005 |
| VAUXHALL | VX220 2.0 i Turbo | [Z20LET] | 03.2001-07.2005 |
| VAUXHALL | VX220 2.2 i | [Z22SE] | 09.2000-07.2005 |
| VAUXHALL | Zafira 2.2 16V | [Z22SE] | 01/09/00 |
| VAUXHALL | Zafira Mk I 2.2 16V | [Z22SE] | 11.1998-08.2004 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
