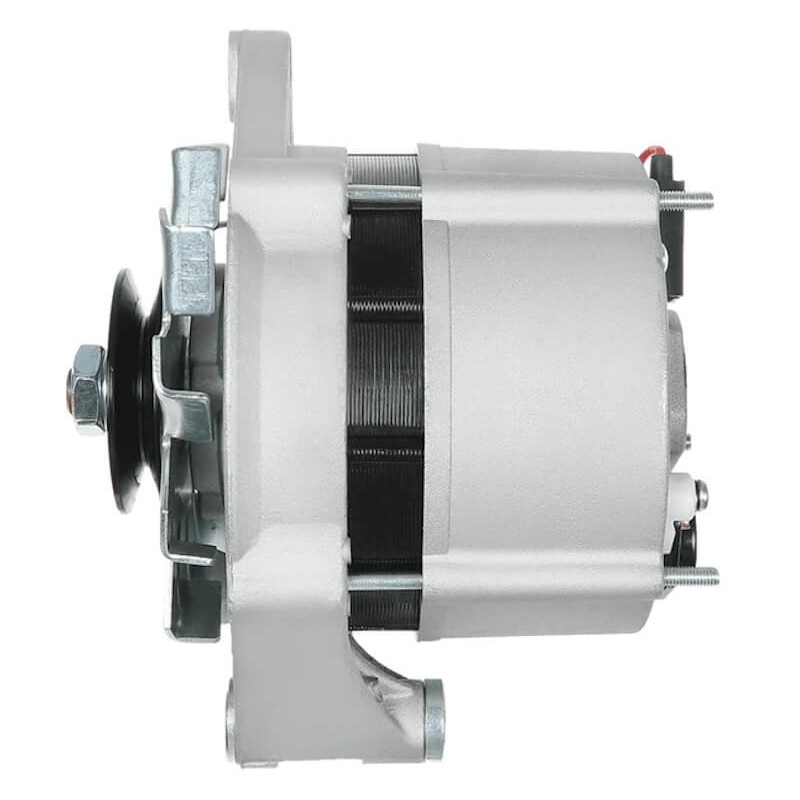

Alternator replacing BOSCH 0120489769 / 0120489768 / 0120489636
w113376
0120400614 |
Bosch |
---|---|
0120400615 |
Bosch |
0120400643 |
Bosch |
0120400658 |
Bosch |
0120400659 |
Bosch |
0120400714 |
Bosch |
0120400730 |
Bosch |
0120400731 |
Bosch |
0120400764 |
Bosch |
0120400765 |
Bosch |
0120400833 |
Bosch |
0120400834 |
Bosch |
Features
Information:

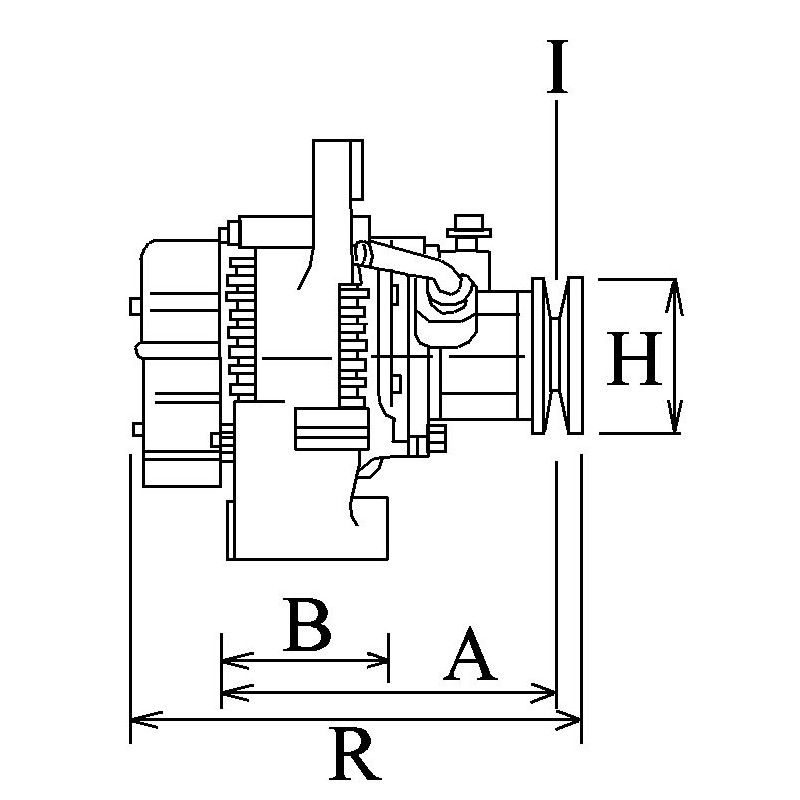

Physical Information | ||
---|---|---|
D | Bracket hole | 8.35 |
G | Belt. adj. bracket hole | 8.20 |
B | Width/holder arm | 56.20 |
E | Belt. adj. brackethole pos. | 60 |
H | Pulley dia. | 70.75 |
A | Pulley dist. | 76.60 |
i | Grooves/pulley | 1 |
j | Radius | 85.70 |
j | Radius 2 | 87.95 |
k | Position B + | M6 |
n | Rotation | Cr |
o | Plug no. 1 | PL_NA |
Q | Tipo prise W | M5-6.3 |
R | Total length mm | 167.50 |
Replacing | |
---|---|
0120400614 | BOSCH |
0120400833 | BOSCH |
0120400834 | BOSCH |
0120488158 | BOSCH |
0120489118 | BOSCH |
0120489119 | BOSCH |
0120489585 | BOSCH |
0120489586 | BOSCH |
0120489625 | BOSCH |
0120489626 | BOSCH |
0120489635 | BOSCH |
0120489636 | BOSCH |
0120489768 | BOSCH |
0120489769 | BOSCH |
11.201.214 | ISKRA |
11.201.309 | ISKRA |
11.201.928 | ISKRA |
1204007 | OPEL |
3472022 | DELCO REMY |
3472024 | DELCO REMY |
3472038 | DELCO REMY |
3472039 | DELCO REMY |
3472049 | DELCO REMY |
3472061 | DELCO REMY |
3472104 | DELCO REMY |
3472204 | DELCO REMY |
3493204 | DELCO REMY |
6020940mo30sm | UNITED TECHNOLOGIES |
61920201 | LUCAS |
9ar2904 | MOTOROLA |
9ar2904k | MOTOROLA |
9ar2904l | MOTOROLA |
aak1131 | ISKRA |
aak1181 | ISKRA |
aak3130 | ISKRA |
aak4143 | ISKRA |
ca99ir | HC-PARTS |
Generic brand
Mounted on :
Brand | Model | Typ | Year |
BEDFORD | Blitz 2.3 D | [23D] | 01.1973-10.1987 |
LANCIA | Gamma 2.5 | [830A.000] | 09.1977-10.1986 |
LANCIA | Gamma 2.5 | [830A.000] | 03.1978-10.1986 |
LANCIA | Gamma 2.5 | [830A4.000] | 09.1977-10.1986 |
LANCIA | Gamma 2.5 | [830A4.000] | 03.1978-10.1986 |
OPEL | Corsa B 1.2 | [C12NZ] | 08.1994-12.2001 |
OPEL | Vectra A 1.6 i | [C16NZ] | 09.1988-11.1995 |
OPEL | Corsa B 1.2 i | [C12NZ] | 03.1993-09.2000 |
OPEL | Corsa B 1.2 i | [X12SZ] | 03.1993-09.2000 |
OPEL | Vectra A 1.6 i | [X16SZ] | 09.1993-11.1995 |
OPEL | Kadett D 1.3 | [13N] | 08.1979-08.1984 |
OPEL | Kadett D 1.3 N | [C13N] | 08.1979-08.1984 |
OPEL | Kadett D 1.3 S | [13S] | 08.1979-08.1984 |
OPEL | Kadett E 1.3 | [13NB] | 09.1984-08.1989 |
OPEL | Kadett E 1.3 | [13NB] | 09.1984-08.1991 |
OPEL | Kadett E 1.3 | [13NB] | 09.1984-07.1989 |
OPEL | Kadett E 1.3 | [13N] | 09.1984-08.1989 |
OPEL | Kadett E 1.3 | [13N] | 09.1984-08.1991 |
OPEL | Kadett E 1.3 | [13N] | 09.1984-07.1989 |
OPEL | Kadett E 1.3 Combo | [13N] | 01.1986-12.1989 |
OPEL | Combo 1.4 | [C14NZ] | 07.1994-10.2001 |
OPEL | Kadett E 1.3 i | [C13N] | 09.1985-08.1991 |
OPEL | Kadett E 1.3 S | [13S] | 09.1984-08.1987 |
OPEL | Kadett E 1.3 S | [13S] | 03.1987-02.1993 |
OPEL | Kadett E 1.3 S Combo | [13S] | 01.1986-12.1989 |
OPEL | Ascona B 1.3 | [13N] | 03.1979-08.1981 |
OPEL | Combo 1.4 | [X14SZ] | 07.1994-10.2001 |
OPEL | Ascona B 1.3 S | [13S] | 08.1979-08.1981 |
OPEL | Ascona B 2.0 | [20N] | 08.1977-08.1981 |
OPEL | Ascona B 2.0 D | [20D] | 08.1978-08.1981 |
OPEL | Ascona C 1.3 | [13N] | 09.1981-08.1986 |
OPEL | Ascona C 1.3 S | [13S] | 09.1981-08.1988 |
OPEL | Kadett E 1.6 i | [C16LZ] | 09.1986-08.1991 |
OPEL | Kadett E 1.6 i | [C16LZ] | 10.1987-02.1993 |
OPEL | Kadett E 1.6 i | [C16NZ] | 09.1986-08.1991 |
OPEL | Ascona C 1.6 | [16SV] | 09.1986-08.1988 |
OPEL | Kadett E 1.6 i | [C16NZ] | 10.1987-02.1993 |
OPEL | Kadett E 1.6 i | [E16NZ] | 09.1986-08.1991 |
OPEL | Ascona C 1.6 i | [C16LZ] | 09.1986-08.1988 |
OPEL | Kadett E 1.6 i | [E16NZ] | 10.1986-02.1993 |
OPEL | Ascona C 1.6 i | [C16NZ] | 09.1986-08.1988 |
OPEL | Ascona C 1.6 i | [E16LZ] | 09.1987-08.1988 |
OPEL | Corsa A 1.0 | [10S] | 09.1982-09.1992 |
OPEL | Rekord D 2.0 D | [20D] | 08.1974-08.1977 |
OPEL | Ascona C 1.6 i | [E16NZ] | 09.1987-08.1988 |
OPEL | Corsa A 1.0 | [10S] | 09.1982-03.1993 |
OPEL | Rekord D 2.1 D | [21D] | 09.1972-08.1977 |
OPEL | Corsa A 1.0 S | [10S] | 02.1986-04.1989 |
OPEL | Rekord E 2.0 D | [20D] | 09.1977-10.1982 |
OPEL | Corsa A 1.2 | [12NC] | 02.1986-04.1989 |
OPEL | Rekord E 2.1 D | [21D] | 09.1977-07.1978 |
OPEL | Corsa A 1.2 | [12NV] | 01.1990-03.1993 |
OPEL | Corsa A 1.2 | [12NV] | 08.1990-07.1994 |
OPEL | Corsa A 1.2 | [12ST] | 02.1986-04.1989 |
OPEL | Corsa A 1.2 | [C12NZ] | 08.1990-07.1994 |
OPEL | Rekord E 2.3 D | [23D] | 08.1978-08.1983 |
OPEL | Corsa A 1.2 | [E12GV] | 01.1985-10.1987 |
OPEL | Rekord E 2.3 D | [23D] | 11.1982-08.1986 |
OPEL | Vectra A 1.4 S | [14NV] | 04.1988-06.1992 |
OPEL | Corsa A 1.2 | [E12GV] | 02.1986-04.1989 |
OPEL | Vectra A 1.4 S | [14NV] | 09.1988-06.1992 |
OPEL | Corsa A 1.2 i | [12NC] | 09.1982-08.1990 |
OPEL | Corsa A 1.2 i | [E12GV] | 09.1982-08.1990 |
OPEL | Manta B 1.3 | [13N] | 03.1979-12.1980 |
OPEL | Rekord E 2.3 TD | [23TD] | 06.1984-08.1986 |
OPEL | Corsa A 1.2 S | [12ST] | 09.1982-02.1990 |
OPEL | Manta B 1.3 S | [13S] | 08.1979-08.1986 |
OPEL | Manta B 1.3 S | [13S] | 08.1981-08.1986 |
OPEL | Corsa A 1.2 S | [12S] | 09.1982-10.1987 |
OPEL | Corsa A 1.3 | [13NB] | 02.1986-04.1989 |
OPEL | Corsa A 1.3 | [13SB] | 02.1986-04.1989 |
OPEL | Vectra A 1.6 i | [16LZ2] | 09.1993-11.1995 |
OPEL | Corsa A 1.3 | [C13N] | 09.1985-10.1987 |
OPEL | Corsa A 1.3 i | [13NB] | 09.1985-10.1989 |
OPEL | Corsa A 1.3 i | [C13N] | 09.1986-09.1990 |
OPEL | Corsa A 1.3 S | [13SB] | 09.1982-10.1989 |
OPEL | Combo 1.2 i | [C12NZ] | 07.1994-10.2001 |
OPEL | Corsa A 1.3 S | [13SB] | 09.1982-10.1987 |
OPEL | Vectra A 1.6 i | [C16NZ2] | 09.1988-11.1995 |
OPEL | Combo 1.2 i | [X12SZ] | 07.1994-10.2001 |
OPEL | Corsa A 1.6 GSi | [E16SE] | 05.1988-03.1992 |
